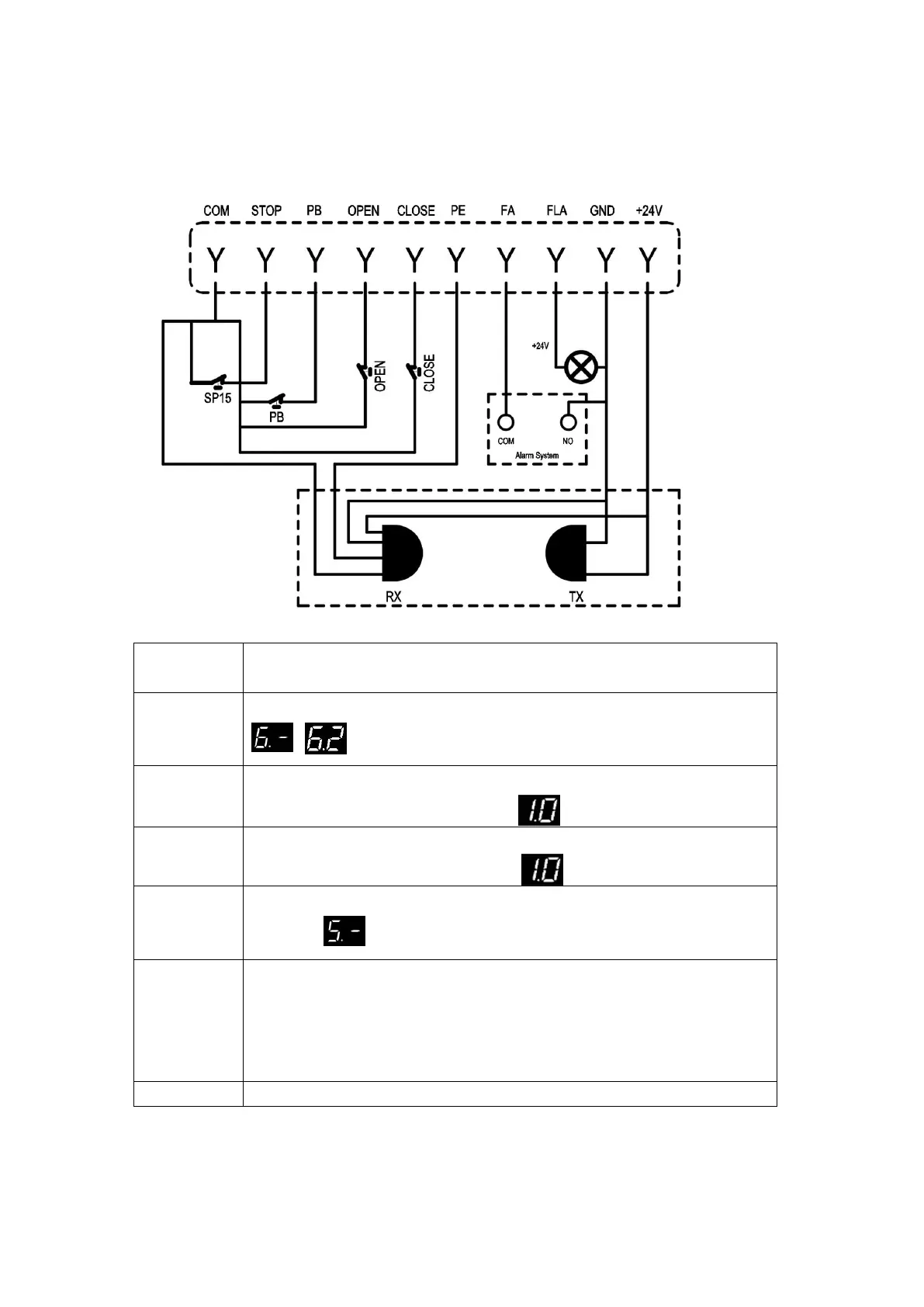

XH02 Safety terminal(V_2)
(Infrared sensors/ light curtain/Alarm System)
Date Version：08/07/2022
STOP
Emergency stop normally open (NO) port, after connection, the door drive
executes long press operation mode
PB
Door drive operation control terminal, see details for specific functions
/ Function menu normally open (NO) port
OPEN
External door opening terminal normally open (NO) port
The external switch can be defined the
function for button mode.
CLOSE
External door closing terminal normally open (NO) port
The external switch can be defined the
function for button mode.
PE
Infrared sensors/ Built-in infrared sensors/ Light curtain,
Details in function menu.
GND/FA
The terminal of the fire alarm device (Default NO) .
Remark: The door will be opened to the opening limit position automatically
once the FA terminal is triggered (No matter what status the door is) and the
door cannot execute any other action commands until the FA terminal returns
to the NO (Normal open) state.
+24V/GND
DC24V Output power，max 0.2A
