ForceDoor BASE 35 - Page 41

39

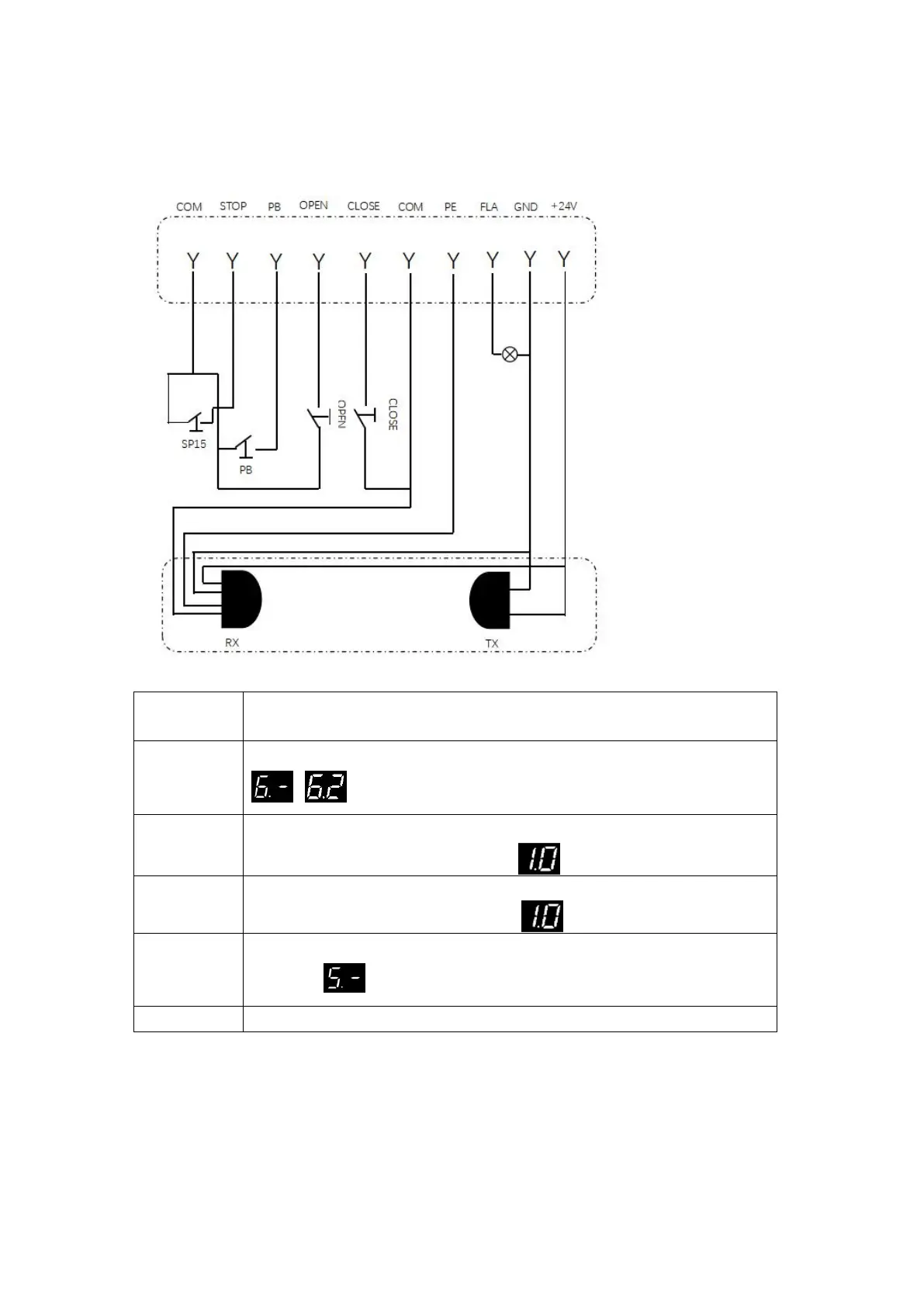

XH02 Safety terminal(V_1)
(Infrared sensors/ light curtain)
STOP
Emergency stop normally open (NO) port, after connection, the door drive
executes long press operation mode
PB
Door drive operation control terminal, see details for specific functions
/ Function menu normally open (NO) port
OPEN
External door opening terminal normally open (NO) port
The external switch can be defined the
function for button mode.
CLOSE
External door closing terminal normally open (NO) port
The external switch can be defined the
function for button mode.
PE
Infrared sensors/ Built-in infrared sensors/ Light curtain,
Details in function menu.
+24V/GND
DC24V Output power，max 0.2A
