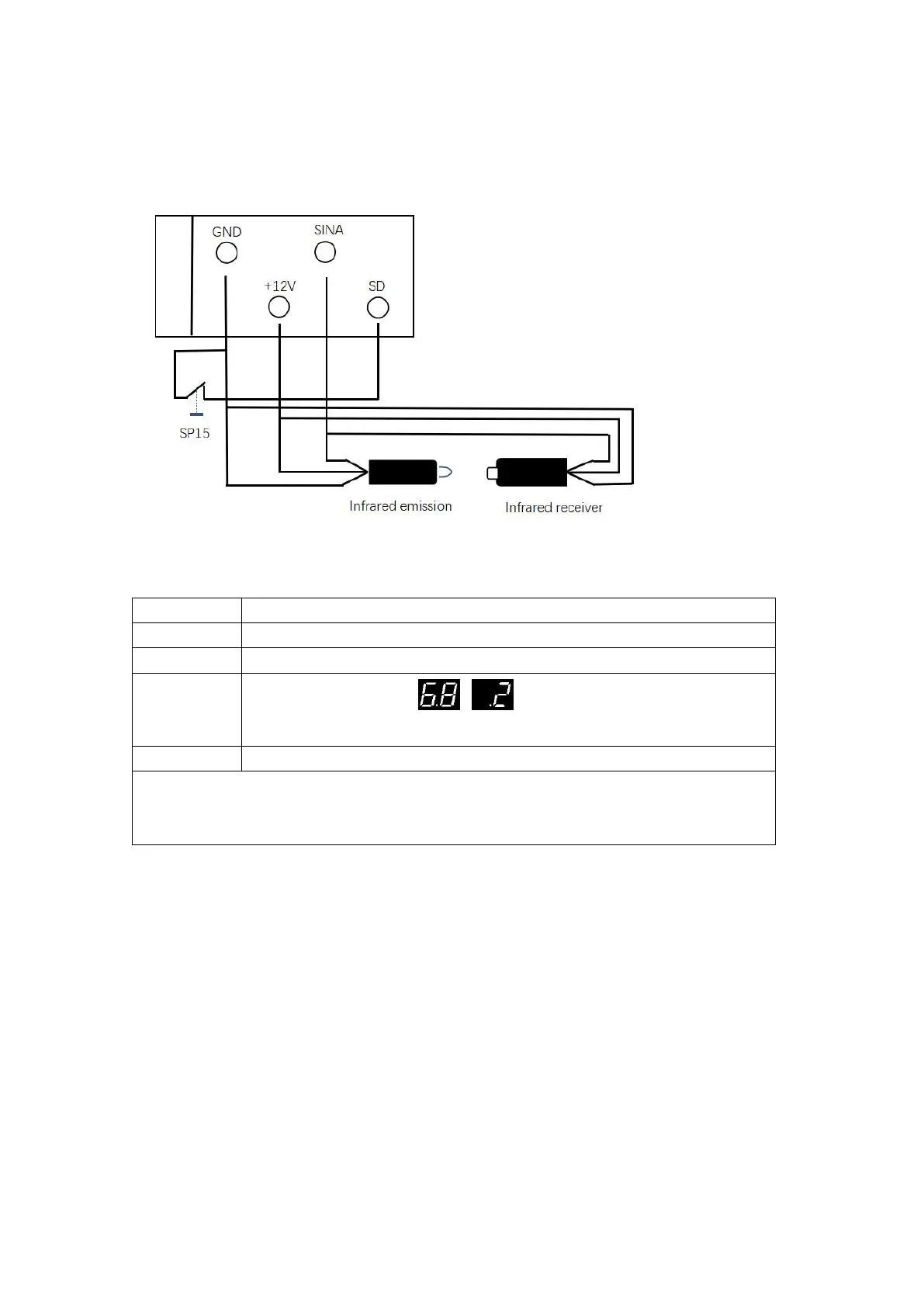

XH08 Safety terminal

(Optical safety edge/ three-wire infrared photo eyes/wicket door protection)

GND

+12V

SINA

Signal

Optical safety

edge

Enter the function menu / to enable the optical safety edge

system/Three-wire infrared photo eyes

SP15/SD

Wicket door/ Pass door protection device terminal

Note 1: SP15 is disconnected, the motor stops, and all control functions are invalid.

Note 2: The door will automatically reverse once the Optical safety edge system is triggered

during the door’s closing process.
