Paragraph 11 (Cont.)
1. Pivot bracket
2. Bushing
3. "0" ring
4. Shim
5. Axle shaft, L.H.
6. Shims
7. Bearing
8. Spacer
9. Bearing
10. Pinion gear shaft
11. Pin
12. Differential case
13. Ring gear
14. Side gears
15. Pinion gears
16. Thrust washers
17. Shims
18. Axle shaft, R.H.
19. Differentia! housing
20. Bevel pinion
21. Thrust washer
22. Shims
23. Bearings
24. Snap rings
2,5. Nuts
26. Lockwasher
27. Oil seal
28. "0" ring
30. Bushing
in. Pivot hracket
32. Dowel
3;i.
"0" ring
34. Coupling
35. Pin
36. Drive shaft
37. Tube
38. Clamps
39. Rubber cover
40. Snap rings
41. Universal joint
42. Cover
50. Support assy.

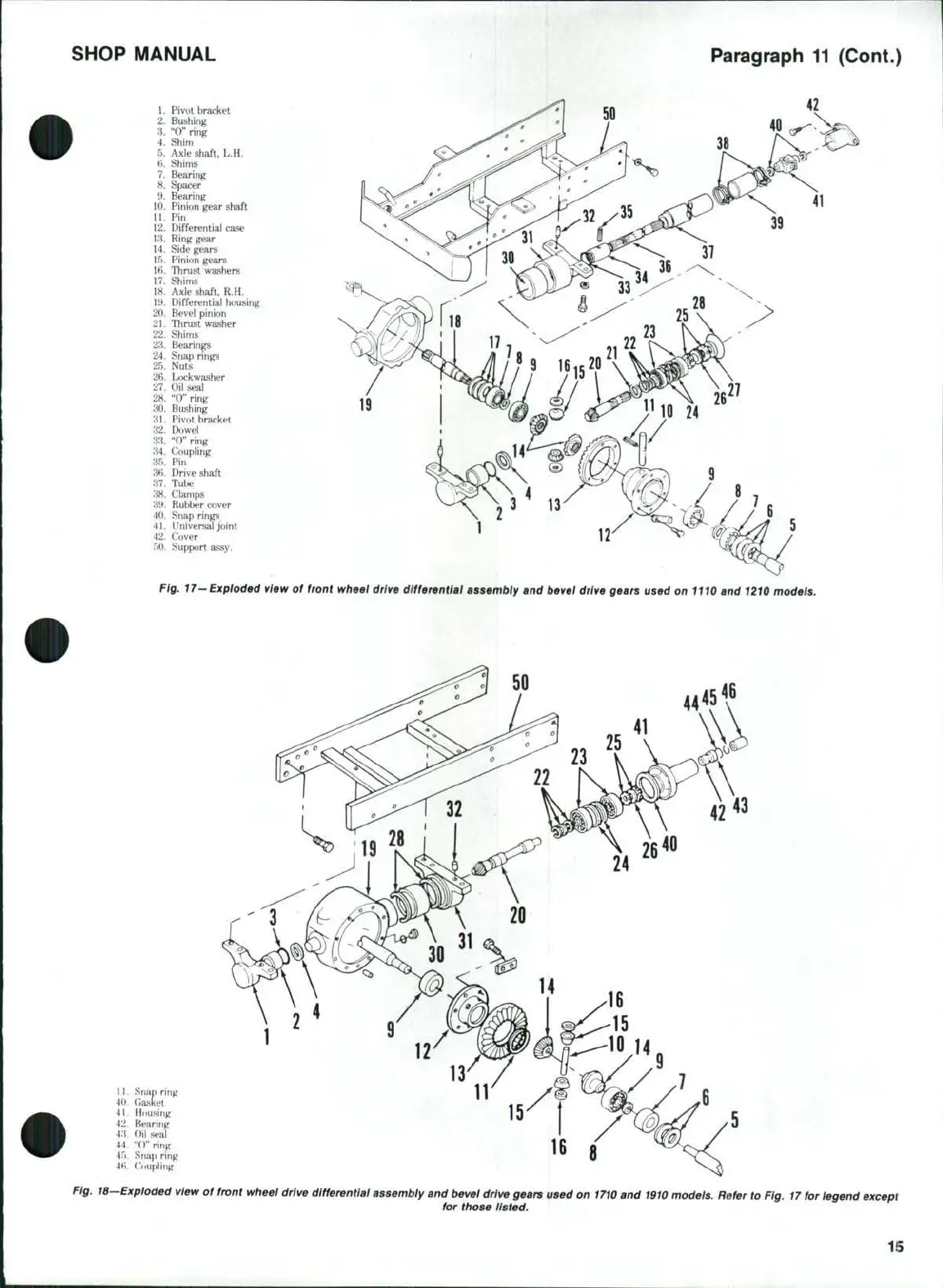

Fig. 17-Exploded view of front wheel drive differential assembly and bevel drive gears used on iitO and 1210 models.
11. Snap ring
40. Casket
41. Housing
42. Bearing
43. Oil seal
44. "()" ring
45. Snap ring
4H. ('oupling
Fig. 16—Exploded view of front wheel drive differential assembly and bevel drive gears used on 1710 and 1910 models. Refer to Fig. 17 for legend except
for those listed.
