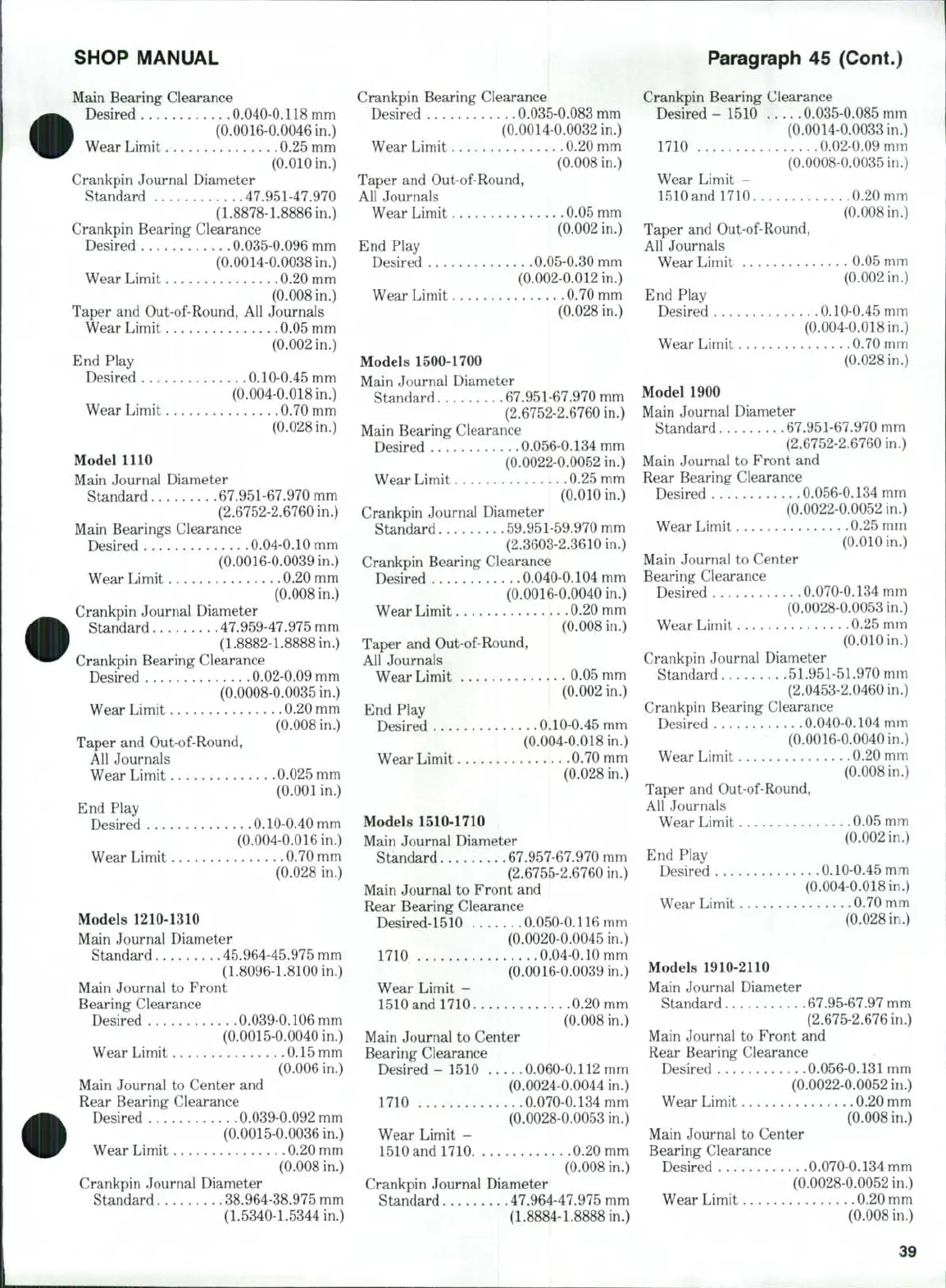

SHOP MANUAL Paragraph 45 (Cont.)
Main Bearing Clearance
Desired 0.040-0.118 mm
(0.0016-0.0046 in,)
Wear Limit 0.25 mm
(0,010 in.)
Crankpin Journal Diameter
Standard 47.951-47.970
(1,8878-1.8886 in,)
Crankpin Bearing Clearance
Desired 0.035-0,096 mm
(0.0014-0.0038 in.)
Wear Limit 0.20 mm
(0.008 in.)
Taper and Out-of-Round, All Journals
Wear Limit 0.05 mm
(0.002 in.)
End Play
Desired 0,10-0,45 mm
(0.004-0.018 in.)
Wear Limit 0.70 mm
(0.028 in.)
Model 1110
Main Journal Diameter
Standard 67.951-67.970 mm
(2,6752-2,6760 in.)
Main Bearings Clearance
Desired 0.04-0.10 mm
(0.0016-0.0039 in.)
Wear Limit 0.20 mm
(0,008 in.)
Crankpin Journal Diameter
Standard. 47.959-47.975 mm
(1.8882-1.8888 in.)
Crankpin Bearing Clearance
Desired 0.02-0.09 mm
(0.0008-0.0035 in.)
Wear Limit 0.20 mm
(0.008 in.)
Taper and Out-of-Round,
All Journals
Wear Limit 0.025 mm
(0.001 in,)
End Play
Desired 0.10-0.40 mm
(0.004-0.016 in.)
Wear Limit 0.70 mm
(0.028 in.)
Models 1210-1310
Main Journal Diameter
Standard 45,964-45.975 mm
(1,8096-1.8100 in.)
Main Journal to Front
Bearing Clearance
Desired 0.039-0.106 mm
(0.0015-0.0040 in.)
Wear Limit 0.15 mm
(0.006 in.)
Main Journal to Center and
Rear Bearing Clearance
Desired 0,039-0.092 mm
(0.0015-0,0036 in.)
Wear Limit 0.20 mm
(0.008 in.)
Crankpin Journal Diameter
Standard 38.964-38,975 mm
(1.5340-1.5344 in.)
Crankpin Bearing Clearance
Desired 0.035-0.083 mm
(0,0014-0.0032 in.)
Wear Limit 0.20 mm
(0,008 in,)
Taper and Out-of-Round,
All Journals
Wear Limit 0,05 mm
(0,002 in.)
End Play
Desired 0,05-0.30 mm
(0.002-0.012 in.)
Wear Limit 0.70 mm
(0.028 in.)
Models 1500-1700 |
Main Journal Diameter
Standard 67.951-67,970 mm
(2,6752-2,6760 in.)
Main Bearing Clearance
Desired 0.056-0.134 mm
(0.0022-0,0052 in.)
Wear Limit 0.25 mm
(0.010 in.)
Crankpin Journal Diameter
Standard 59.951-59.970 mm
(2.3603-2.3610 in.)
Crankpin Bearing Clearance
Desired 0,040-0.104 mm
(0.0016-0.0040 in.)
Wear Limit 0.20 mm
(0,008 in.)
Taper and Out-of-Round,
All Journals
Wear Limit 0,05 mm
(0.002 in.)
End Play
Desired 0.10-0,45 mm
(0,004-0.018 in.)
Wear Limit 0.70 mm
V , (0.028 in.)
Models 1510-1710
Main Journal Diameter
Standard 67.957-67.970 mm
(2.6755-2.6760 in.)
Main Journal to Front and
Rear Bearing Clearance
Desired-1510 0.050-0.116 mm
(0.0020-0.0045 in.)
1710 0,04-0.10 mm
(0,0016-0.0039 in,)
Wear Limit -
1510 and 1710 0,20 mm
(0.008 in.)
Main Journal to Center
Bearing Clearance •
Desired - 1510 0.060-0.112 mm
(0.0024-0.0044 in,)
1710 0,070-0.134 mm
(0,0028-0.0053 in.)
Wear Limit -
1510 and 1710 0.20 mm
(0.008 in.)
Crankpin Journal Diameter
Standard 47,964-47,975 mm
, (1.8884-1.8888 in.)
^ "' I
Crankpin Bearing Clearance
Desired - 1510 0.035-0.085 mm
(0.0014-0.0033 in.)
1710 0.02-0,09 mm
(0.0008-0.0035 in.)
Wear Limit -
1510 and 1710 0.20 mm
(0.008 in.)
Taper and Out-of-Round,
All Journals
Wear Limit 0,05 mm
(0.002 in,)
End Play
Desired 0,10-0.45 mm
(0.004-0.018 in.)
Wear Limit 0,70 mm
(0.028 in.)
Model 1900
Main Journal Diameter
Standard 67.951-67,970 mm
(2.6752-2.6760 in.)
Main Journal to Front and
Rear Bearing Clearance
Desired 0.056-0.134 mm
(0,0022-0.0052 in.)
Wear Limit 0.25 mm
(0.010 in.)
Main Journal to Center
Bearing Clearance
Desired 0.070-0,134 mm
(0.0028-0.0053 in.)
Wear Limit 0.25 mm
(0.010 in.)
Crankpin Journal Diameter
Standard 51.951-51,970 mm
(2.0453-2.0460 in.)
Crankpin Bearing Clearance
Desired 0.040-0,104 mm
(0.0016-0.0040 in.)
Wear Limit 0.20 mm
(0.008 in.)
Taper and Out-of-Round,
All Journals
Wear Limit 0.05 mm
(0.002 in.)
End Play
Desired 0.10-0.45 m TI
(0,004-0.018 in.)
Wear Limit 0.70 mm
(0.028 in.)
Models 1910-2110
Main Journal Diameter
Standard 67.95-67.97 mm
(2.675-2.676 in.)
Main Journal to Front and
Rear Bearing Clearance
Desired 0.056-0.131 mm
(0,0022-0,0052 in.)
Wear Limit 0.20 mm
(0.008 in.)
Main Journal to Center
Bearing Clearance
Desired 0.070-0.134 mm
(0.0028-0.0052 in.)
Wear Limit 0,20 mm
(0.008 in.)
39
