Replacing fog lamp bulbs (if equipped)
1. Make sure the fog lamp switch is
in the off position.

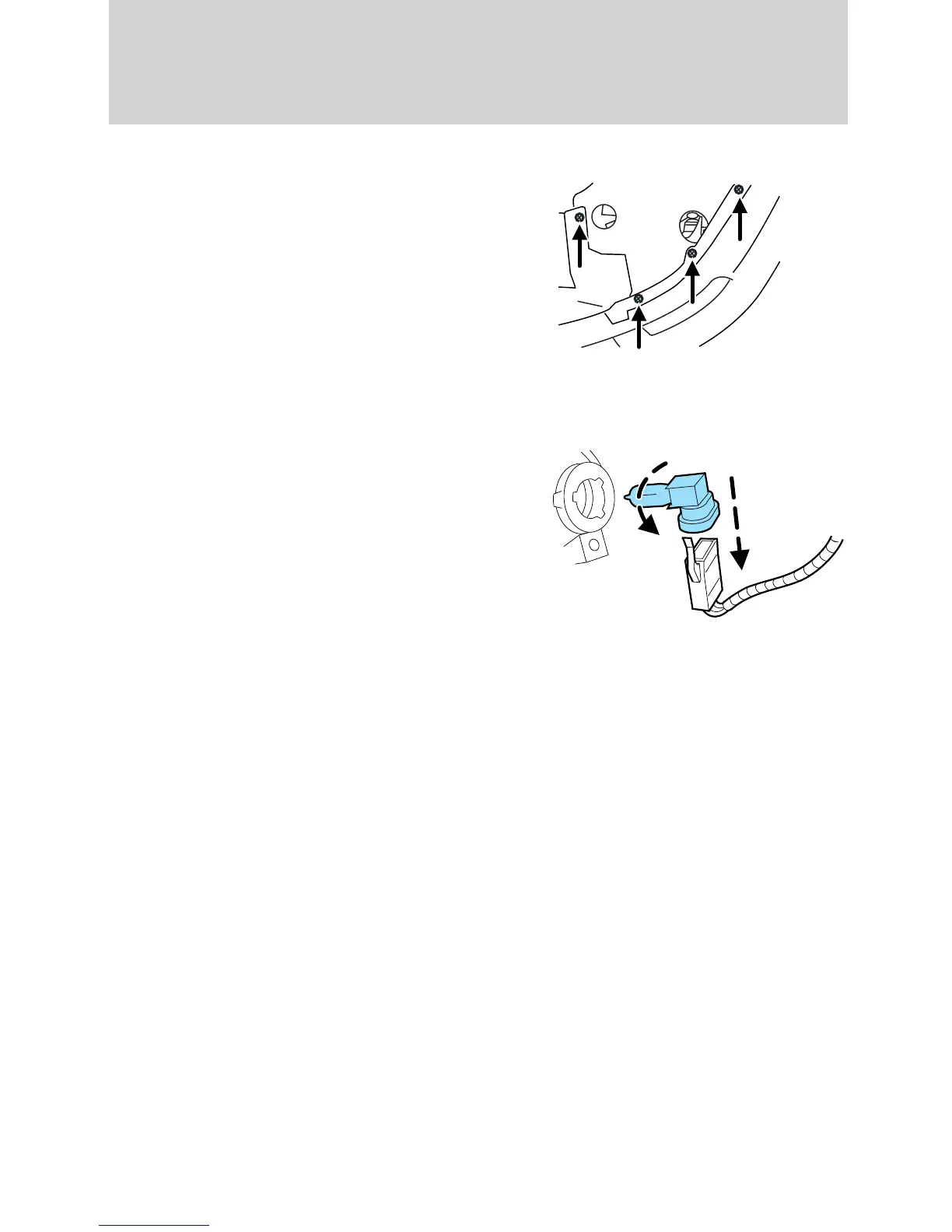

2. From underneath the vehicle,
partially remove the tire splash
shield by removing four drive
screws.
After removing to allow free access
to the front fog lamp bulb and
electrical wire harness, the splash shield flap should be able to be
repositioned.
3. Rotate the harness/bulb assembly
counterclockwise, to remove from
the fog lamp.
4. Carefully disconnect the bulb
from the harness assembly by
releasing the two snap clips.
Install the new bulb in reverse order.
Lights
90
2010 Flex (471)
Owners Guide, 1st Printing
USA (fus)
