Ford 2011 C-Max - Page 170

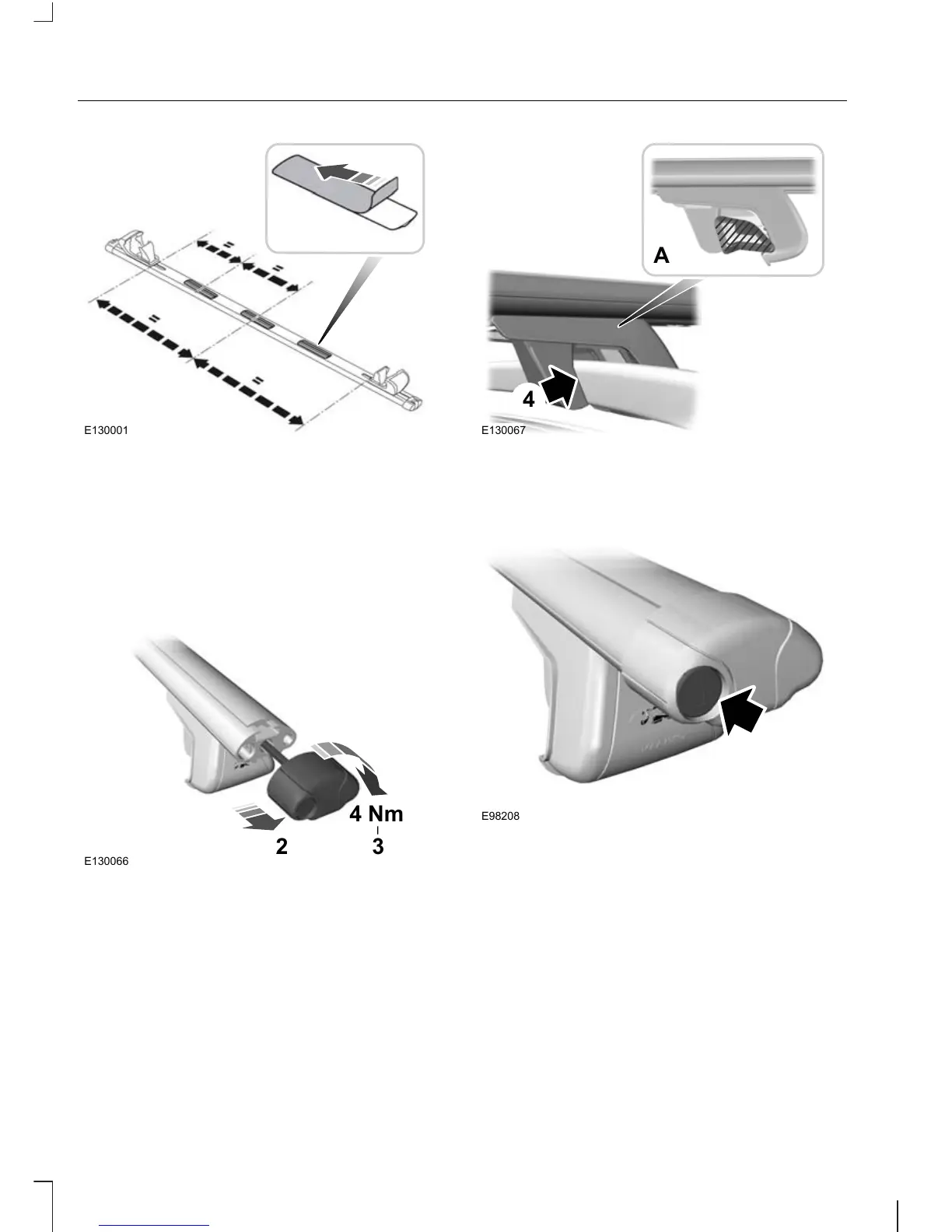

E130001
Note: Adhesive pads are supplied to help
reduce the buffeting noise.
Note: Make sure the surface of the
crossbars is clean before attaching the
adhesive pads.
1. Remove the backing and attach the
adhesive pads to the crossbars in the
positions shown.
4 Nm
32
E130066
2. Pull the handle out.
3. Turn the handle clockwise to bring the
crossbar in contact with the rail.
4
E130067
A
Note: Make sure there is no gap
between crossbar and rail (A).
4. Turn the handle a minimum of 3.5
revolutions.
E98208
5. Push the handle in. Turn the key
clockwise to lock.
6. Remove the key.
168
Load carrying
