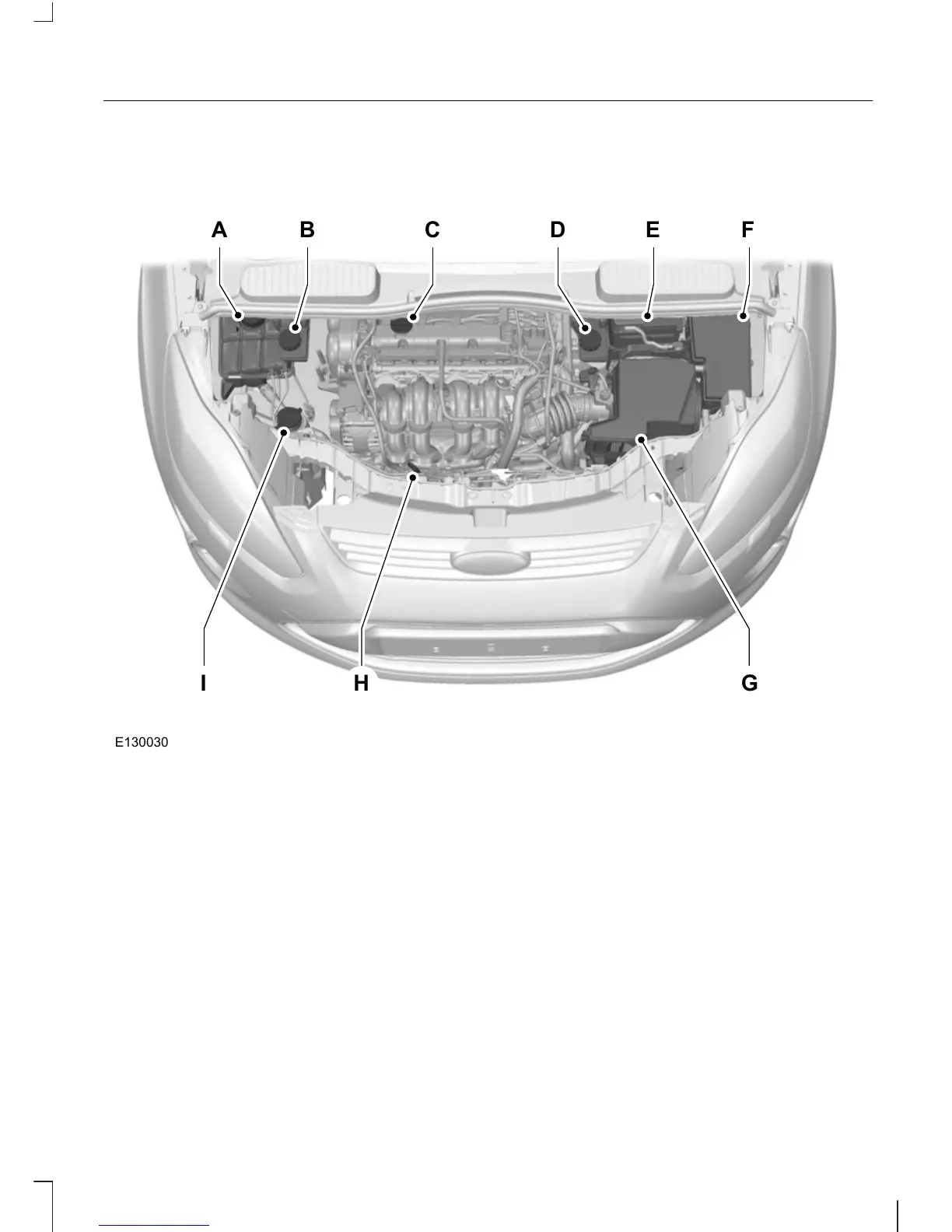

ENGINE COMPARTMENT OVERVIEW - 1.6L DURATEC-16V
TI-VCT (SIGMA)
E130030
A B C D E F
GHI
Engine coolant reservoir
*
: See Engine coolant check (page 193).
A
Brake and clutch fluid reservoir (right-hand drive)
*
: See Brake and clutch
fluid check (page 194).
B
Engine oil filler cap
*
: See Engine oil check (page 193).
C
Brake and clutch fluid reservoir (left-hand drive)
*
: See Brake and clutch
fluid check (page 194).
D
Battery: See Vehicle battery (page 199).
E
Engine compartment fuse box: See Fuses (page 176).
F
Air cleaner: No maintenance necessary.G
189
