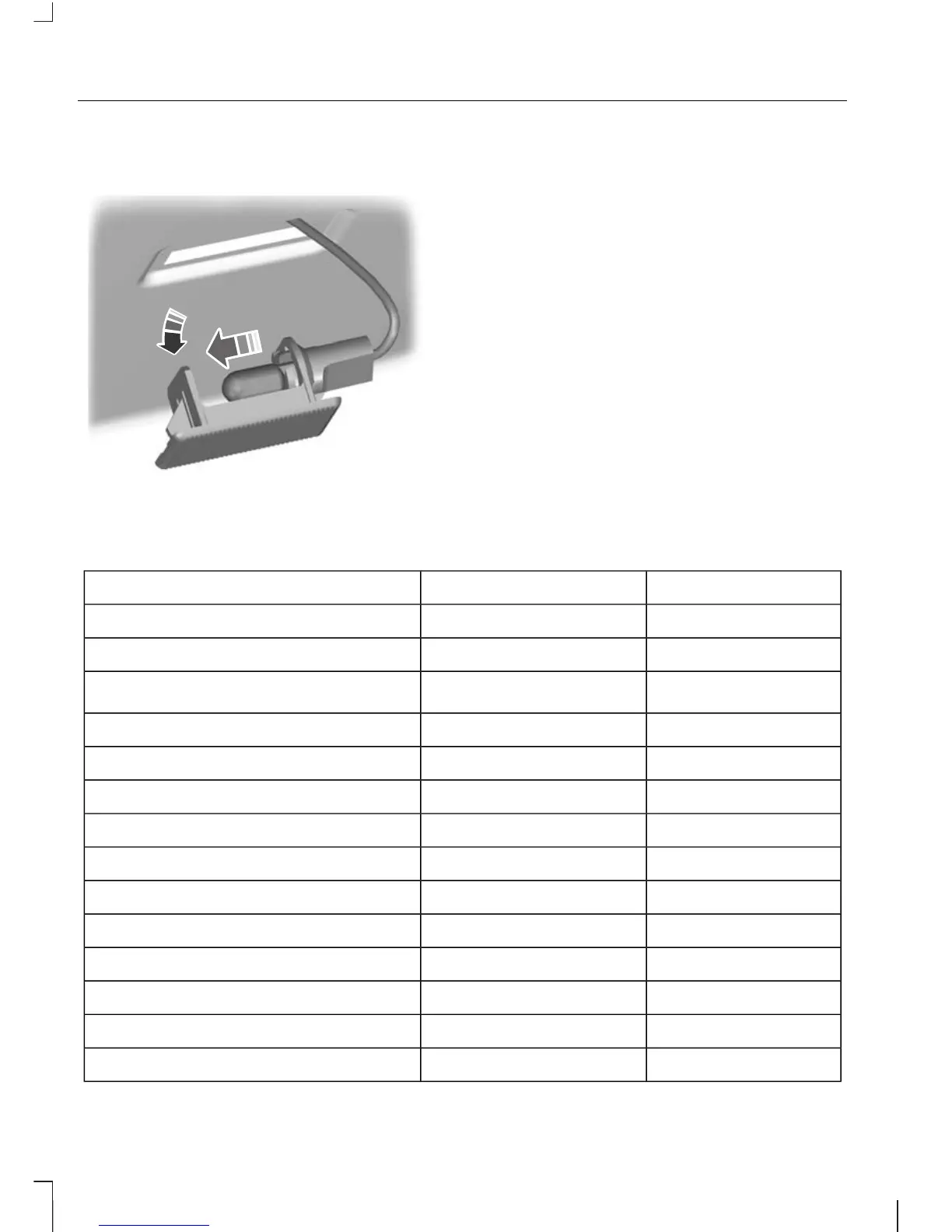

Luggage compartment lamp,

footwell lamp and tailgate lamp

E72784

1. Carefully prise out the lamp.

2. Remove the bulb.

BULB SPECIFICATION CHART

Power (watt)SpecificationLamp

21PY21WFront direction indicator

55H1Headlamp main beam

H7Headlamp dipped beam

55H1Cornering lamp

55H11Front fog lamp

5W5WSide lamp

5WY5WSide repeater

5W5WApproach lamp

21PY21WRear direction indicator

21/5P21/5WBrake and tail lamp

5W5WTail lamp

21P21WRear fog lamp

21P21WReversing lamp

5W5WNumber plate lamp
