Ford 2011 C-Max - Engine Oil Dipstick - 1.6 L Duratec-16 V Ti-Vct; Engine Oil Dipstick - 1.6 L Duratorq-Tdci; (DV) Diesel;2.0 L Duratorq-Tdci (DW); Diesel

Engine coolant reservoir
*
: See Engine coolant check (page 193).
A
Brake and clutch fluid reservoir (right-hand drive)
*
: See Brake and clutch
fluid check (page 194).
B
Engine oil dipstick
*
: See Engine oil check (page 193).
C
Brake and clutch fluid reservoir (left-hand drive)
*
: See Brake and clutch
fluid check (page 194).
D
Battery: See Vehicle battery (page 199).
E
Engine compartment fuse box: See Fuses (page 176).
F
Air cleaner: No maintenance necessary.G
Engine oil filler cap
*
: See Engine oil check (page 193).
H
Screen washer fluid reservoir
*
: See Washer fluid check (page 194).
I
*
For easy identification, filler caps and the engine oil dipstick are marked in colour.

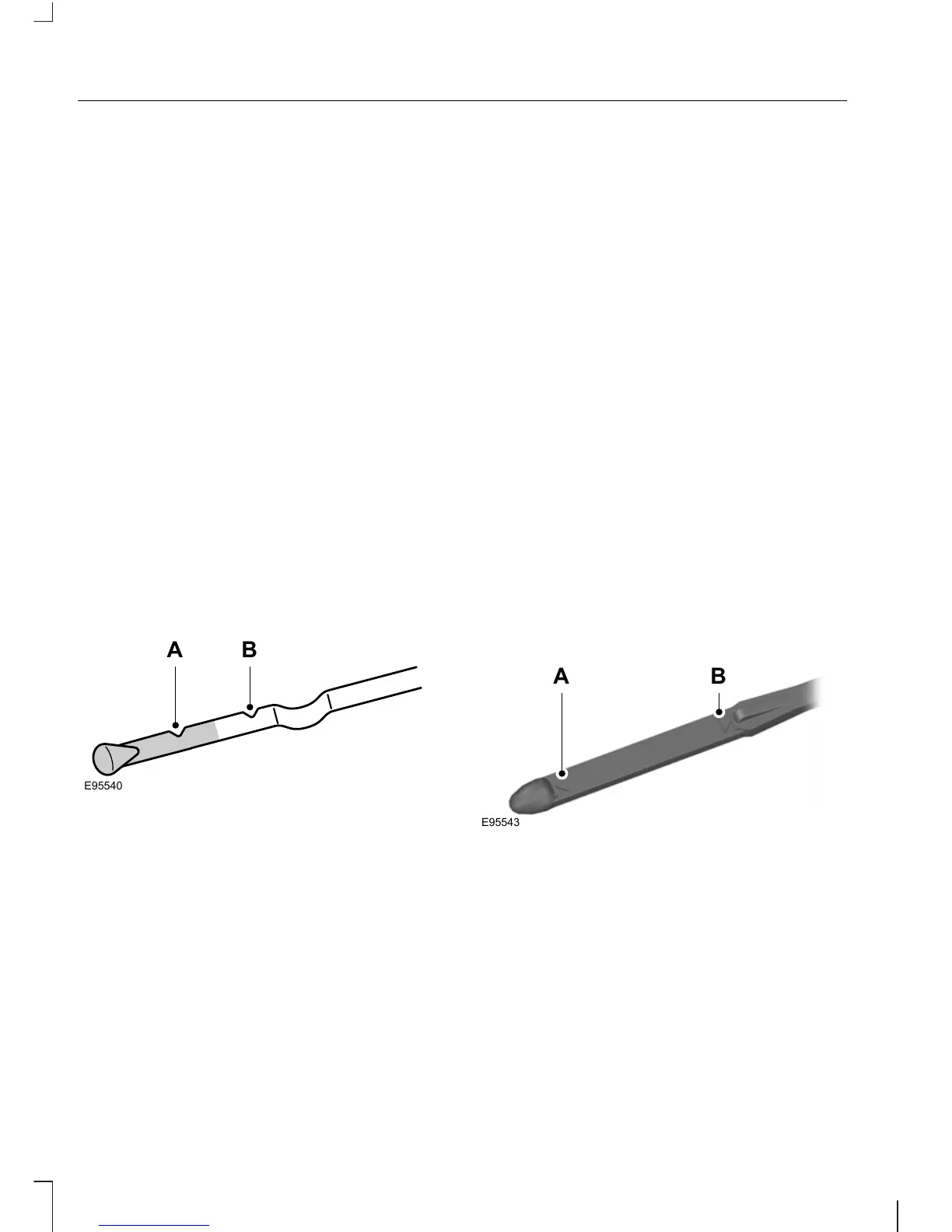

ENGINE OIL DIPSTICK - 1.6L
DURATEC-16V TI-VCT
(SIGMA)
E95540
BA
MINA
MAXB
ENGINE OIL DIPSTICK - 1.6L
DURATORQ-TDCI (DV)
DIESEL/2.0L DURATORQ-
TDCI (DW) DIESEL
E95543
B
A
MINA
MAXB
