Ford 2011 C-Max User Manual

E130174
2
3

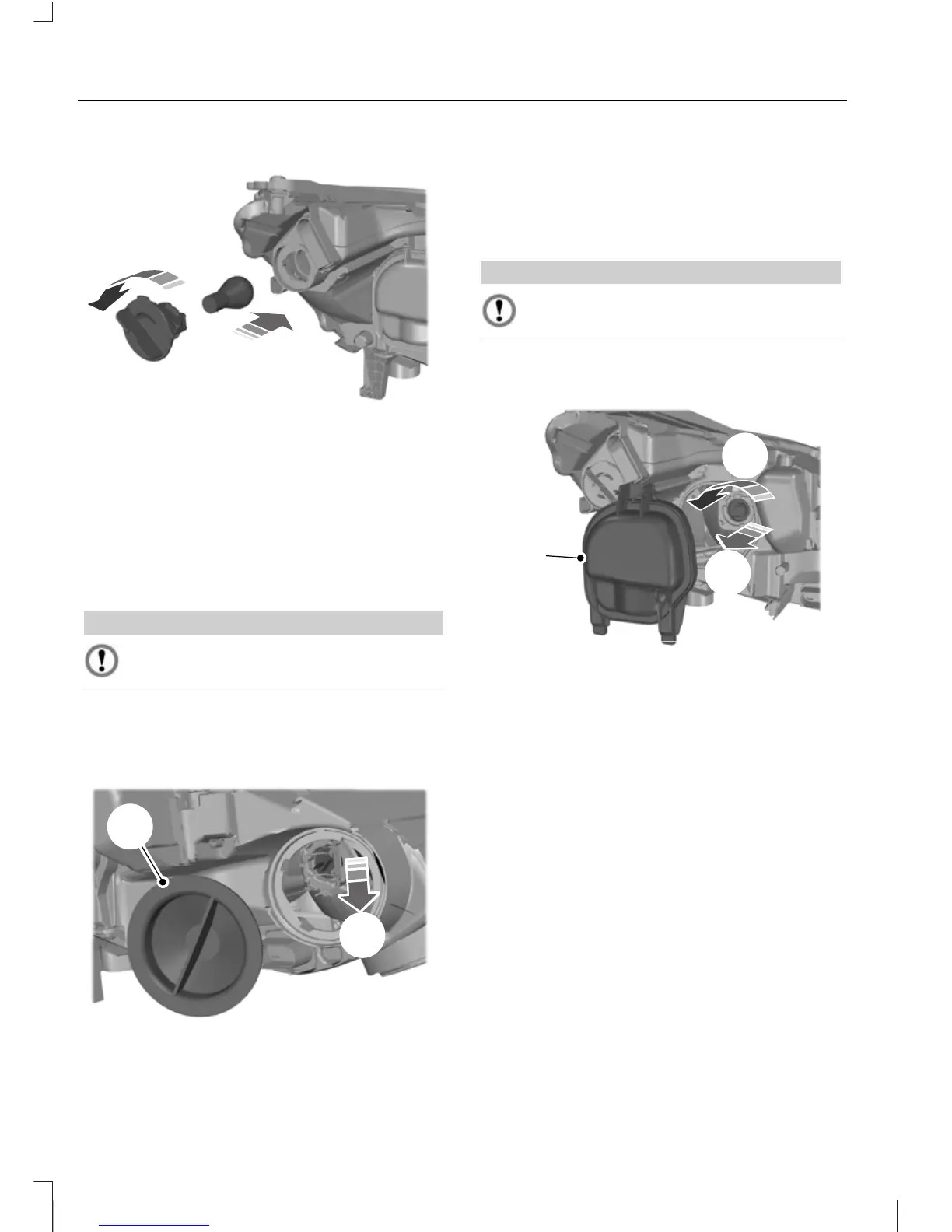

2. Turn the bulb holder anti-clockwise
and remove it.
3. Gently press the bulb into the bulb
holder, turn it anti-clockwise and
remove it.
Headlamp main beam
CAUTION
Do not touch the glass of the bulb.
1. Remove the headlamp. See
Removing a headlamp (page 62).
E130175
4
2
2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Headlamp dipped beam
CAUTION
Do not touch the glass of the bulb.
1. Remove the headlamp. See
Removing a headlamp (page 62).
E130176
3
4
2
2. Remove the cover.
3. Turn the bulb holder anti-clockwise
and remove it.
4. Remove the bulb.
Cornering lamp
1. Remove the headlamp. See
Removing a headlamp (page 62).
64
Lighting
