4. Disconnect the electrical connector.

5. Turn the bulb holder anti-clockwise

and remove it.

Rear lamps

Direction indicator, tail and brake

lamp

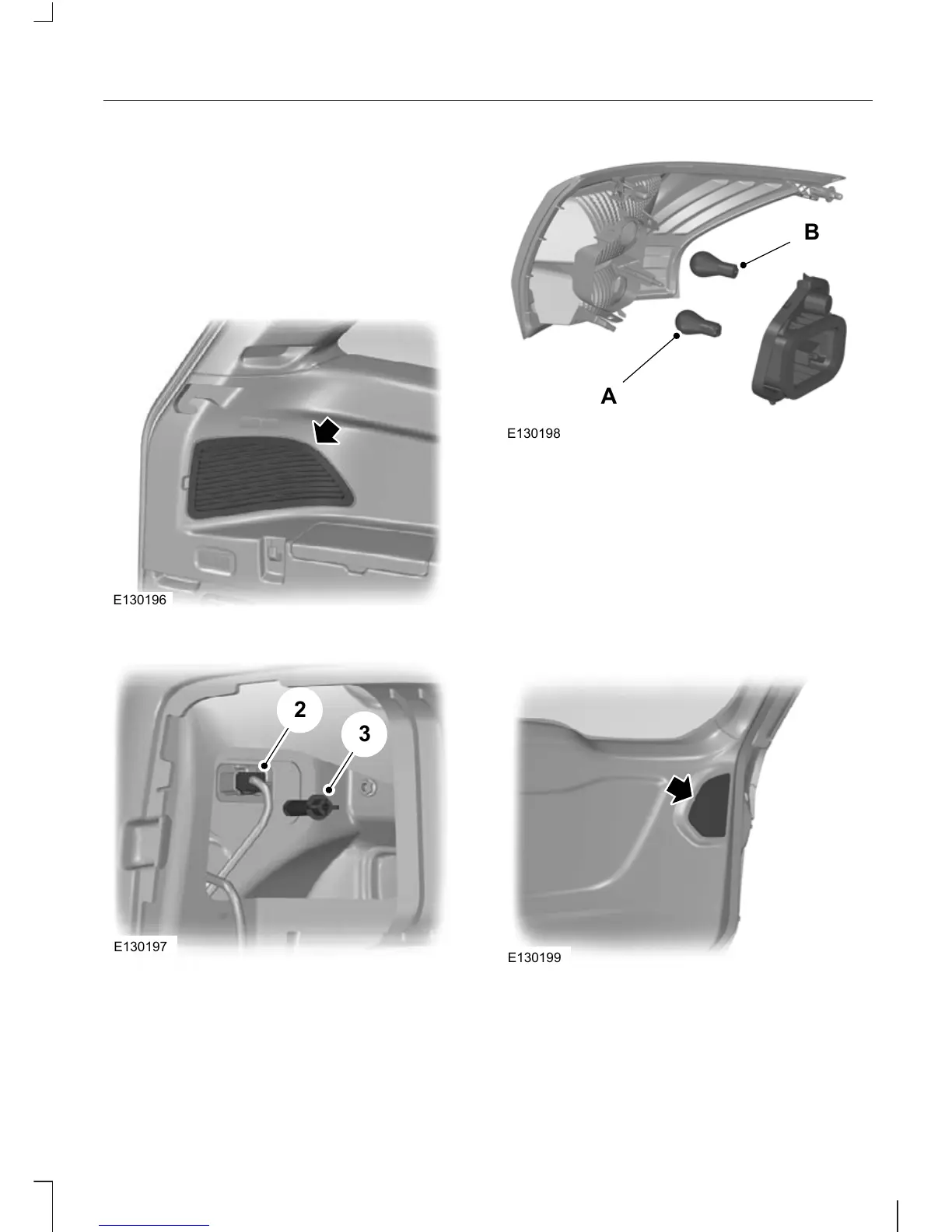

E130196

1. Remove the trim panel.

E130197

2. Disconnect the electrical connector.

3. Remove the wing nut.

4. Remove the lamp.

E130198

5. Remove the bulb holder.

6. Gently press the bulb into the bulb

holder, turn it anti-clockwise and

remove it.

A. Tail and brake lamp

B. Direction indicator

Reversing lamp, tail lamp and fog

lamp

E130199

1. Remove the trim panel.

Lighting

Default Chapter3
