Ford 2016 C-MAX HYBRID - Replacing License Plate Lamp Bulb

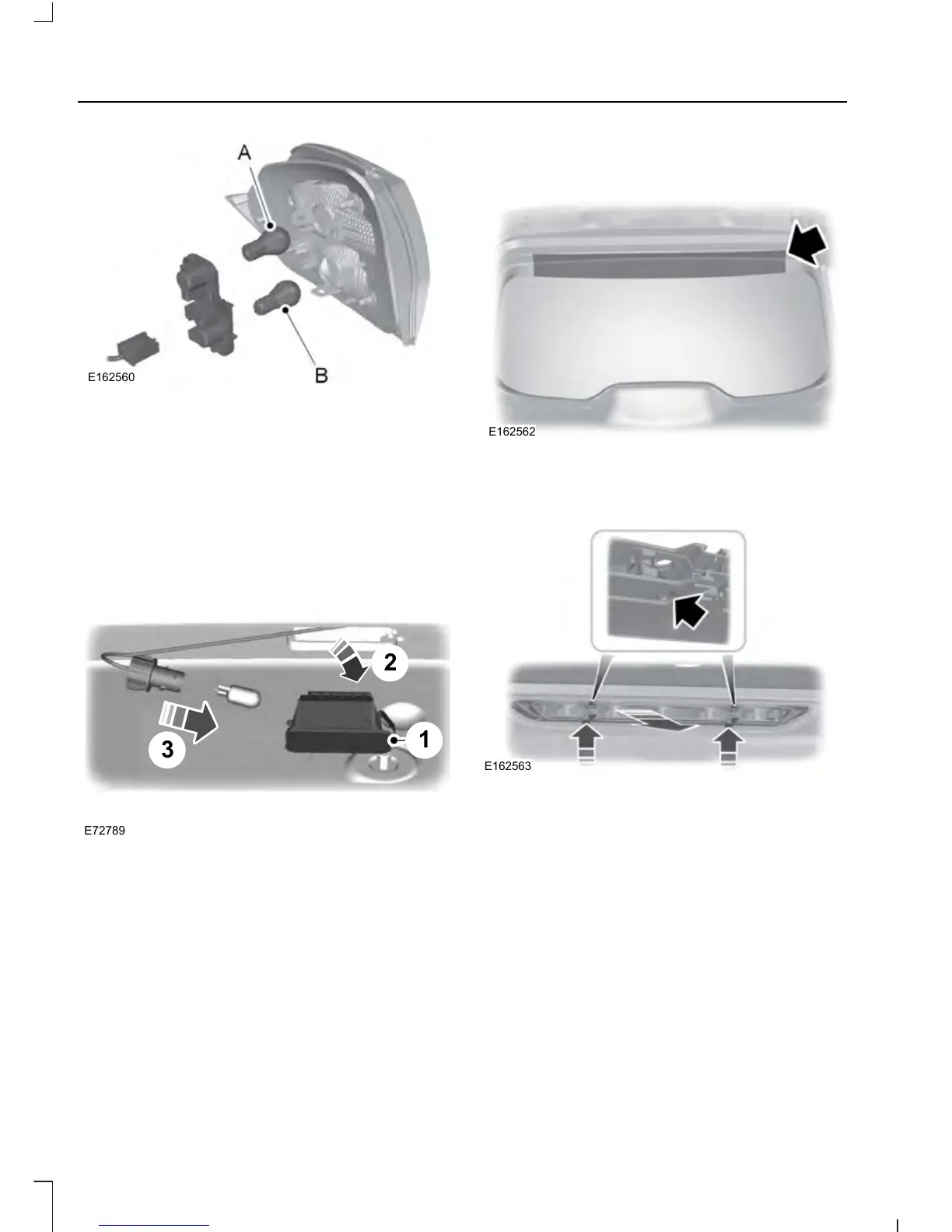

E162560
6. Disconnect the electrical connector.
7. Remove the bulb holder.
8. Gently press the bulb into the bulb
holder, turn the bulb counterclockwise,
and remove the bulb. (A) Reverse
lamp. (B) Tail lamp.
9. Install the new bulb in reverse order.
Replacing License Plate Lamp Bulb
3
2
1
E72789
1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb.
Reverse steps to reinstall bulb.
Replacing the Center High
Mounted Brake Lamp Bulbs
E162562
1. Open the liftgate.
2. Detach the clips above the inboard side
of the rear window.
E162563
3. Insert a suitable tool into the holes.
4. Carefully pull the lamp towards the
front of the vehicle in order to release
the spring clips.
236
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Maintenance
