Ford 2016 C-MAX HYBRID User Manual

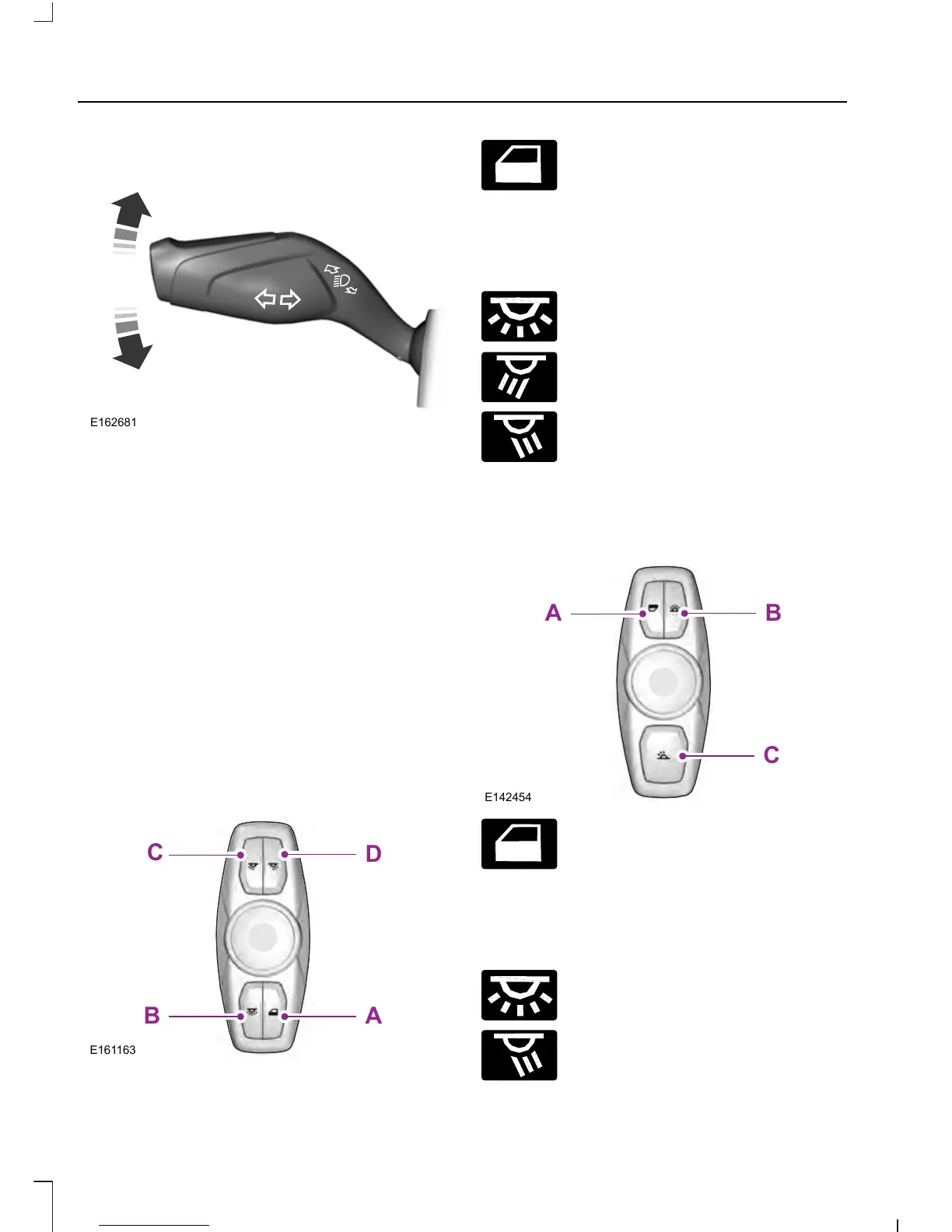

DIRECTION INDICATORS
E162681
Push the lever up or down to use the
direction indicators.
Note: Tap the lever up or down to make the
direction indicators flash three times to
indicate a lane change.
INTERIOR LAMPS
The lamps will switch on when one of the
following conditions have been met:
• You open any door.
• You press a remote control button.
• You press switch B on the front interior
lamp.
Front Interior Lamp (If Equipped)
E161163
D
C
AB
E160819
(A) Door function switch. Press
this switch to disable the interior
lamps. The door function
indicator lamp will illuminate yellow with
lamps disabled. Press the switch again to
turn interior lamps back on. The indicator
lamp will illuminate blue.
E160816
(B) All lamps on and off switch.
E160817
(C)Passenger individual lamp on
and off switch.
E160818
(D) Driver individual lamp on and
off switch.
Front Interior Lamp - With
Panorama Roof (If Equipped)
Driver Side Lamp
E142454
B
A
C
E160819
(A) Door function switch. Press
this switch to disable the interior
lamps. The door function
indicator lamp will illuminate yellow with
lamps disabled. Press the switch again to
turn interior lamps back on. The indicator
lamp will illuminate blue.
E160816
(B) All lamps on and off switch.
E160818
(C) Individual lamp on and off
switch.
78
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Lighting
