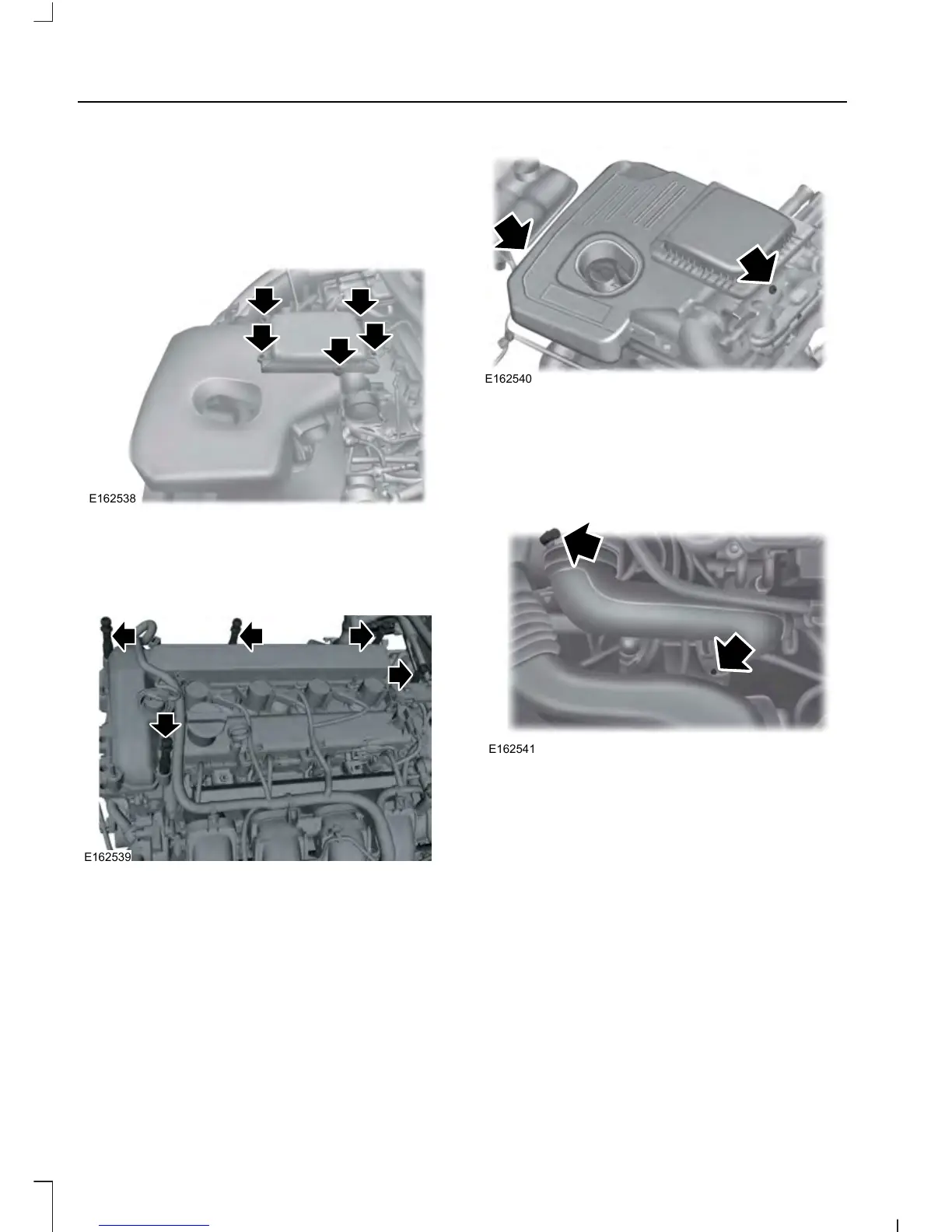

Installing the Engine Air Filter
Element
Note: Clean the inside of the air cleaner
assembly before installing a new air filter
element.
E162538
1. Install the new air filter element into
the engine air cleaner assembly.
2. Install the air cleaner cover (B) and
tighten the 5 bolts.
E162539
3. Position the air cleaner assembly (A)
onto the engine and make sure the
assembly is aligned with the studs.
E162540
4. Install and tighten the bolts to each
side of the air cleaner assembly (A) as
shown with arrows.
5. Attach the air cleaner intake tube (E)
to the air cleaner assembly (A).
E162541
6. Connect the PCV tube (D) to the air
cleaner outlet tube (C).
7. Connect the air cleaner intake tube (E)
to the air cleaner assembly (A).
240
C-MAX (CCG) Canada/United States of America, enUSA, First Printing
Maintenance
