FUSE BOX LOCATIONS

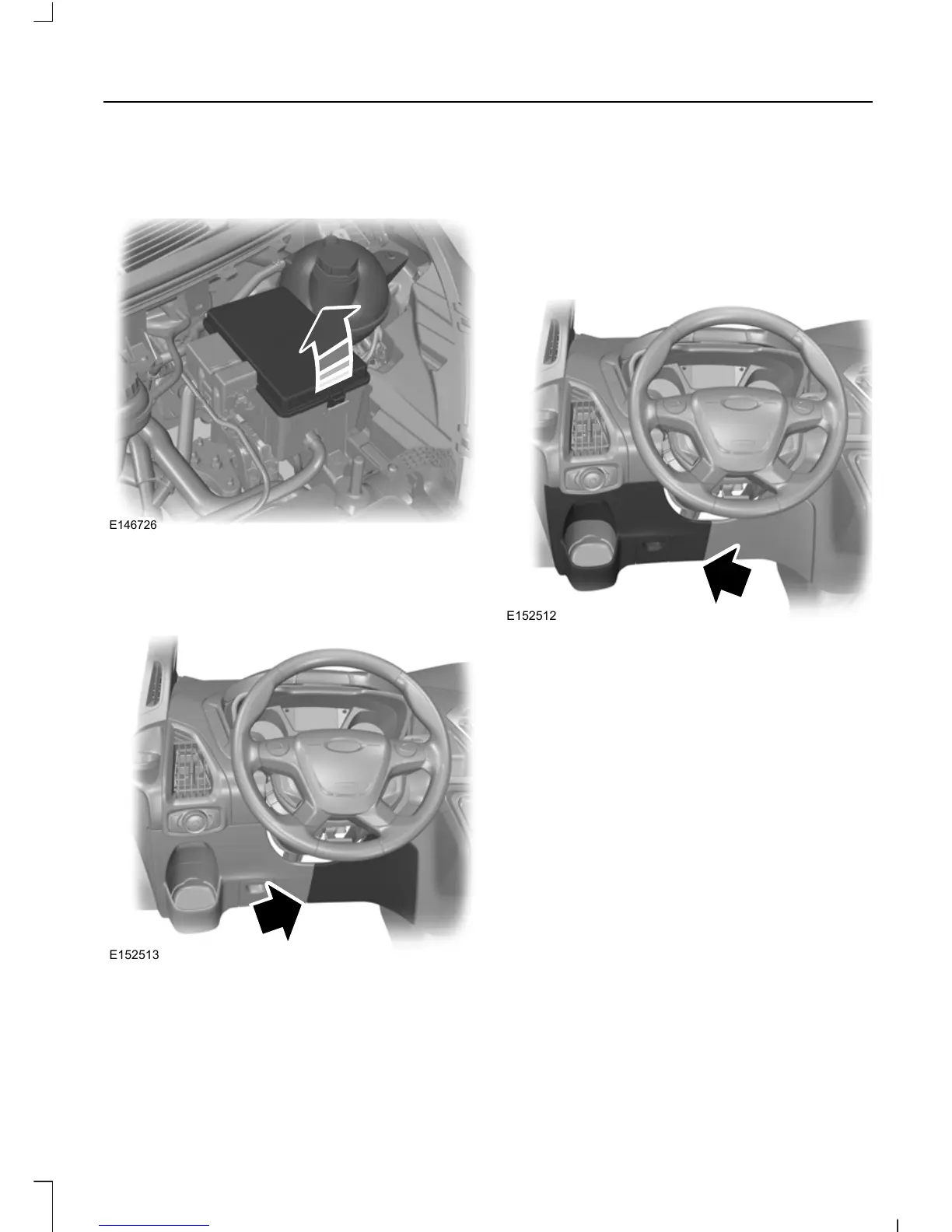

Engine Compartment Fuse Box
E146726
For item location: See Under Hood
Overview (page 209).
Passenger Compartment Fuse Box
E152513
This is located behind the removable trim
panel.
Pre-fuse Box
This is located under the driver's seat.
Body Control Module Fuse Box
E152512
This is located behind the removable trim
panel.
193
Transit (TTH) Canada/United States of America, enUSA, First Printing
Fuses
