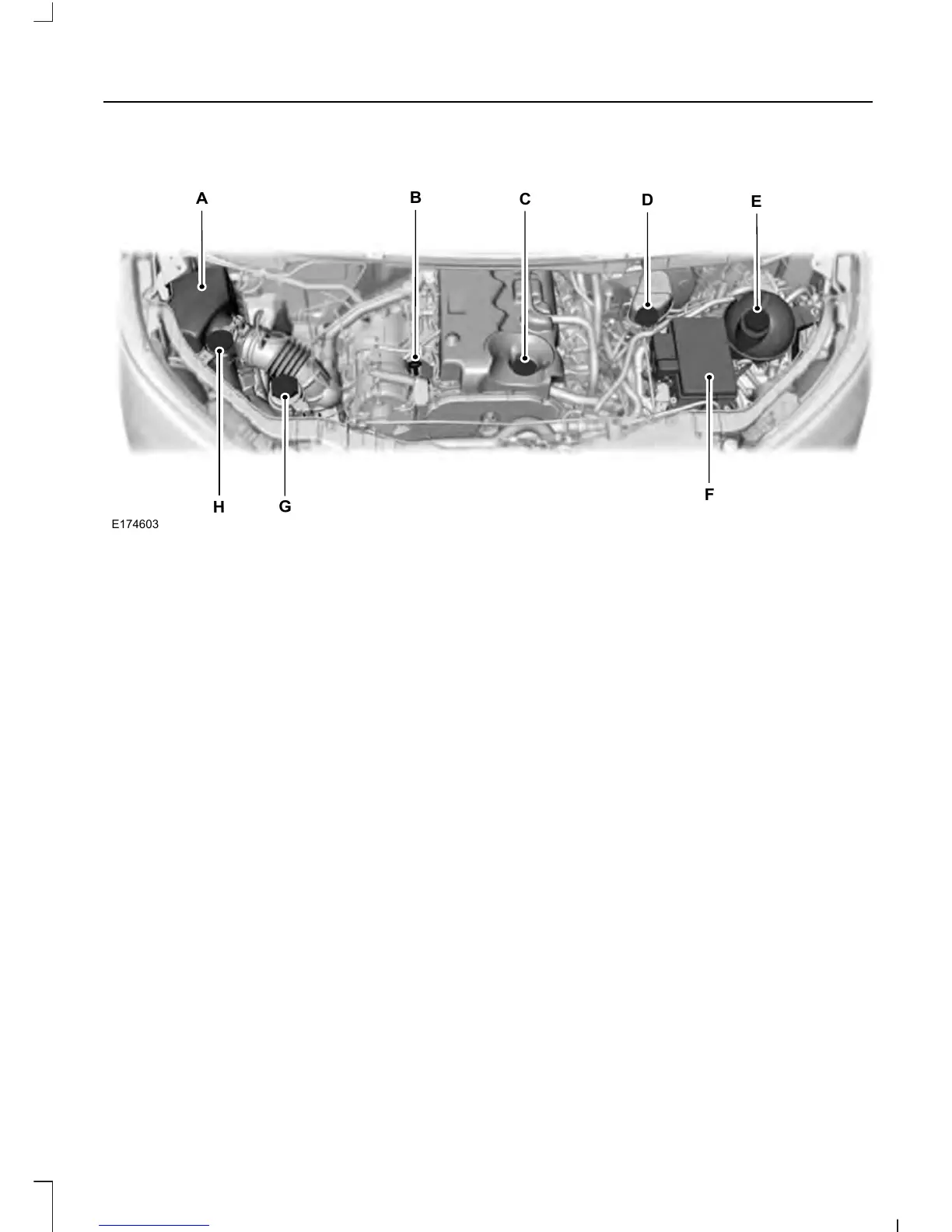

UNDER HOOD OVERVIEW - 3.2L POWER STROKE DIESEL
E174603
A
B
C
D
E
F
G
H
Air cleaner. See Changing the Engine Air Filter (page 232).A
Engine oil dipstick
*
. See Engine Oil Dipstick (page 212).B
Engine oil filler cap
*
. See Engine Oil Check (page 212).C
Brake and clutch fluid reservoir
*
. See Brake Fluid Check (page 218).D
Engine coolant reservoir
*
. See Engine Coolant Check (page 214).E
Engine compartment fuse box. See Fuses (page 193).F
Power steering fluid reservoir
*
. See Power Steering Fluid Check (page 218).G
Washer fluid reservoir
*
. See Washer Fluid Check (page 218).H
*
The filler caps and the engine oil dipstick are colored for easy identification.
211
Transit (TTH) Canada/United States of America, enUSA, First Printing
Maintenance
