FUSE SPE
CIFIC
A
TION CHART
Engine C
ompartment Fuse Box

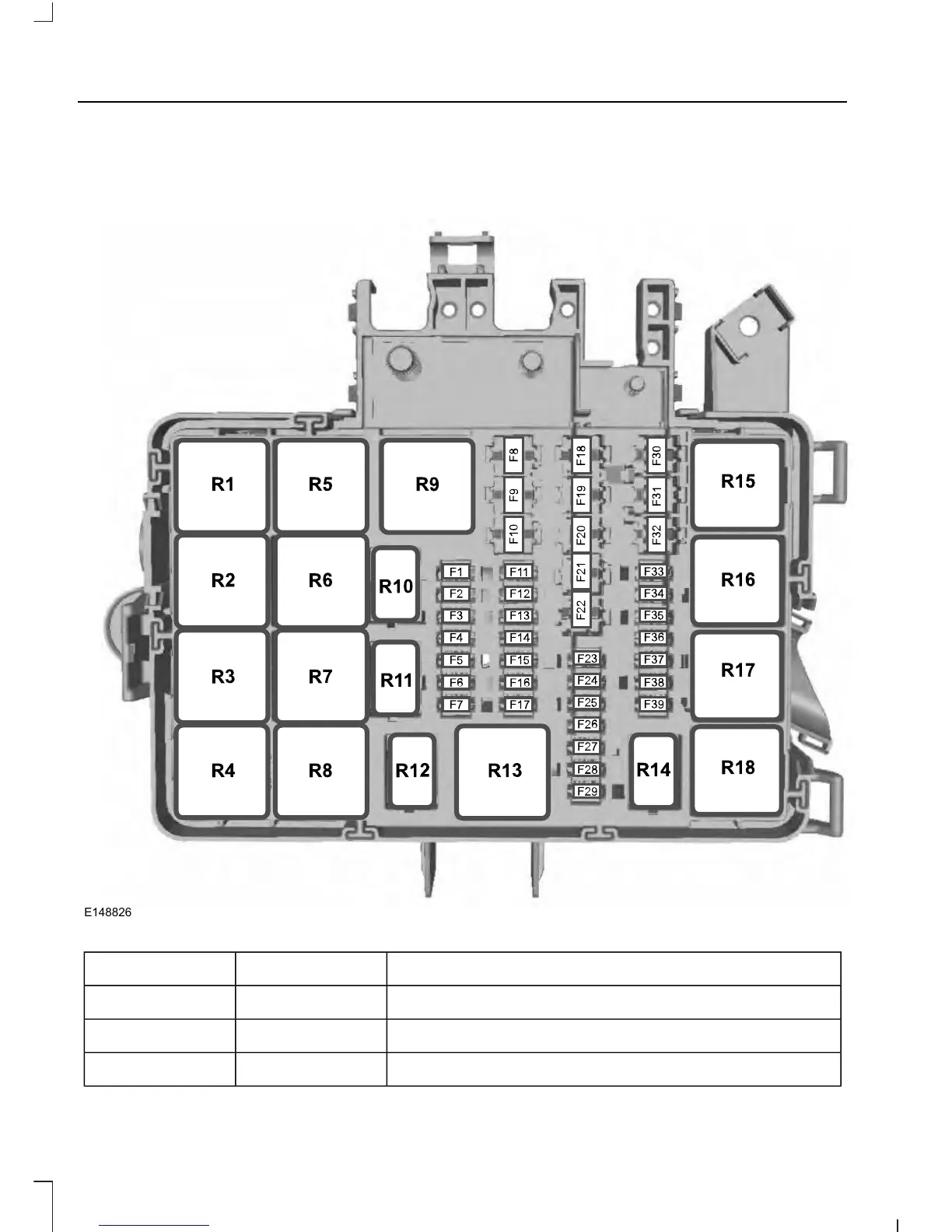

E148826
Circ
uits protec
ted
Fuse r
ating
Fuse
Sel
ectiv
e Cat
al
ytic R
eduction - Diesel.
10A
F1
Sel
ectiv
e Cat
al
ytic R
eduction - Diesel.
15A
F2
Sel
ectiv
e Cat
al
ytic R
eduction - Diesel.
15A
F3
194
T
ransit (TTH) Canada/Unite
d Stat
es of America, enUS
A, First Printing
Fuses
