Pre-fuse Box

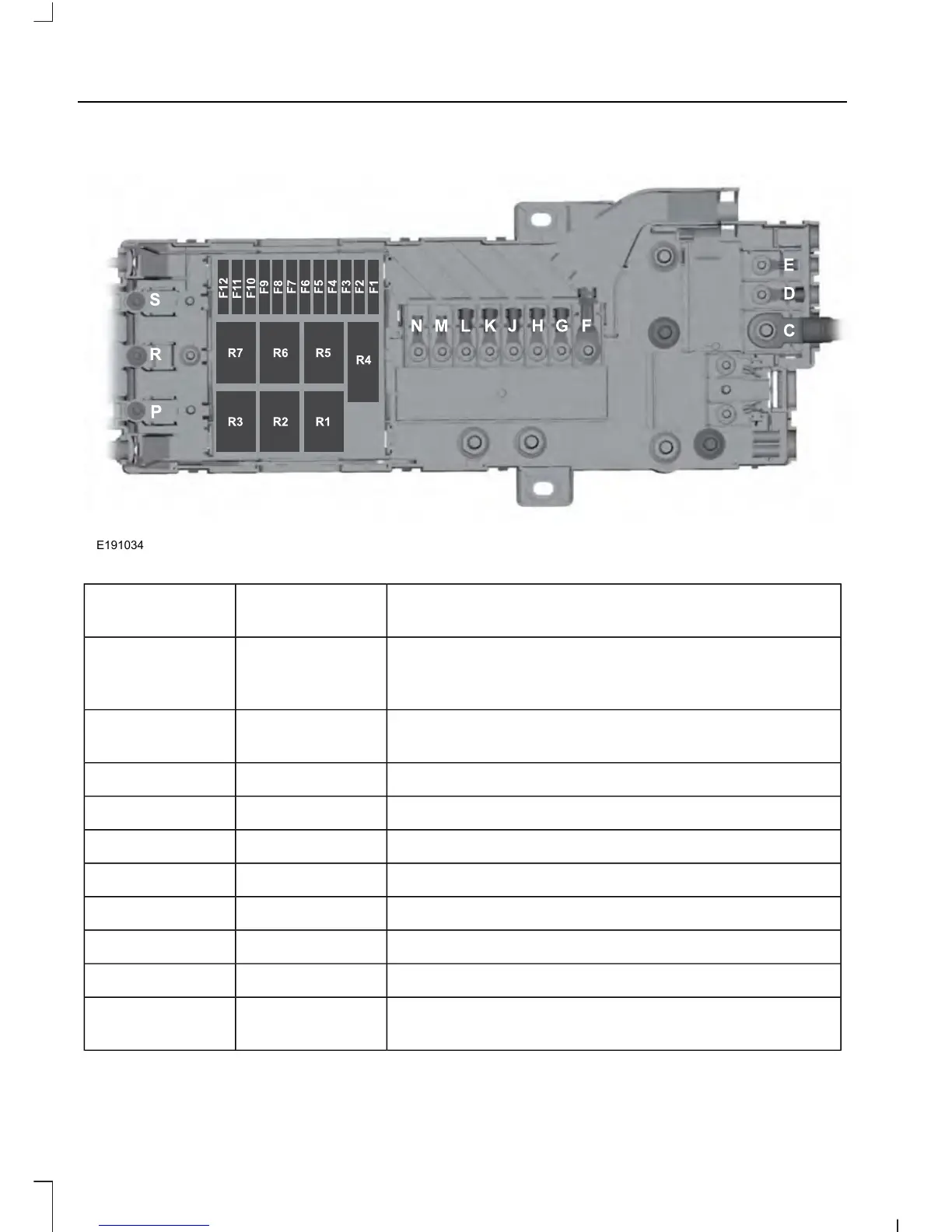

E191034
Circuits protected
Fusible link
rating
Fusible link
Engine compartment fuse box.
470AC Starter motor.
Alternator.
Passenger compartment fuse panel.
100AD
Body control module fuse box.
Not used.-E
Passenger compartment fuse panel (SRBI BB3).200AF
Passenger compartment fuse panel (SRB1 BB1).100AG
Auxiliary heater - Diesel.80AH
Modified vehicle connections (SRB F52 and F53).80AJ
Engine junction box feed.100AK
Passenger compartment fuse panel.100AL
Passenger compartment fuse panel supply (Body
control module).
60AM
