Ford 2016 TRANSIT - Page 225

5
6
E146773

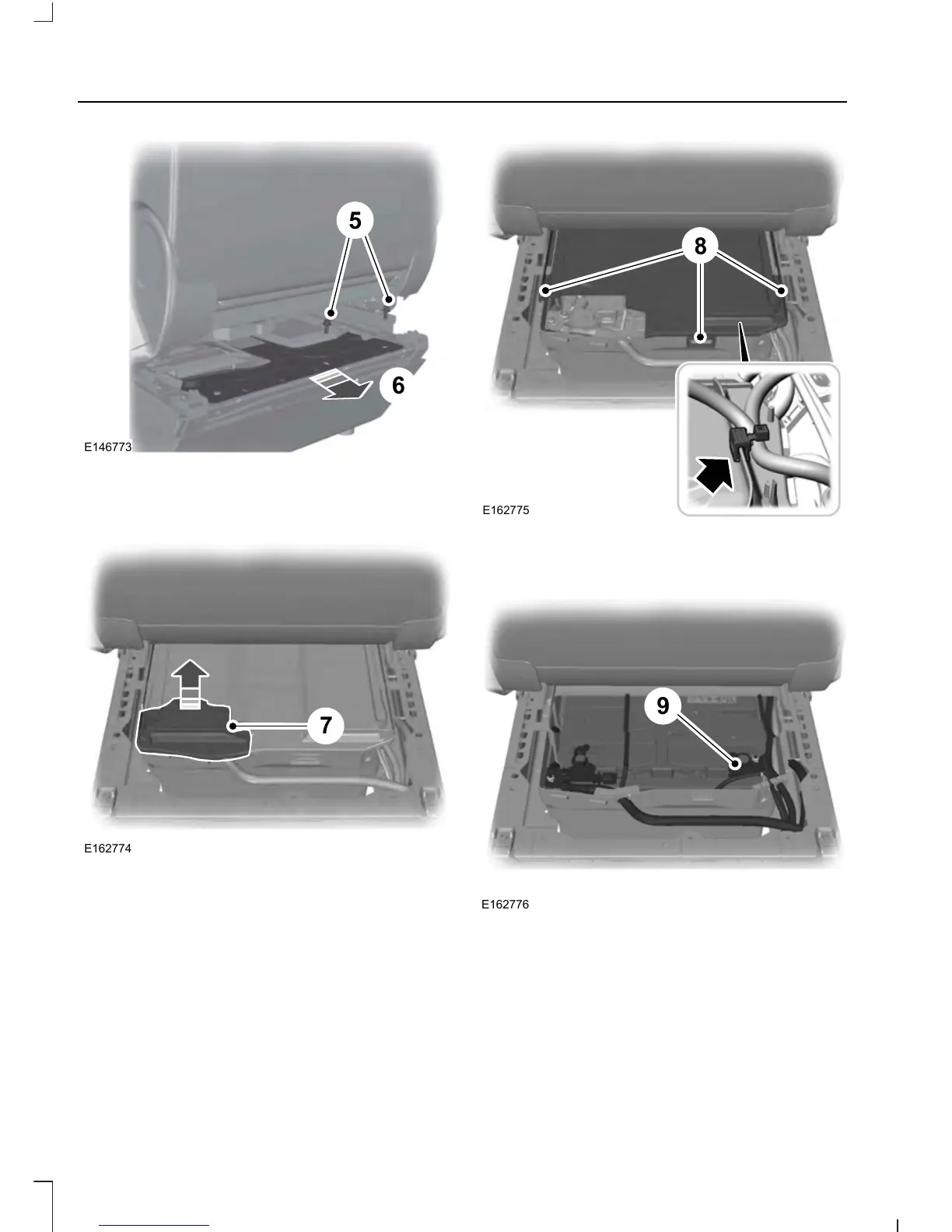

5. Remove the battery clamp and cover
bolts.
6. Remove the battery clamp and cover.
E162774
7
7. Remove the battery terminal cover and
remove the negative (-) terminal.
8
E162775
8. Remove the cable securing clips from
the cover. Release the retaining clips
and remove the cover.
E162776
9
9. Remove the positive (+) terminal and
remove the battery.
10. Move the second battery toward the
rear of the vehicle. Disconnect the
battery terminals and remove the
battery.
222
Transit (TTH) Canada/United States of America, enUSA, First Printing
Maintenance
