Ford 2016 TRANSIT - Page 271

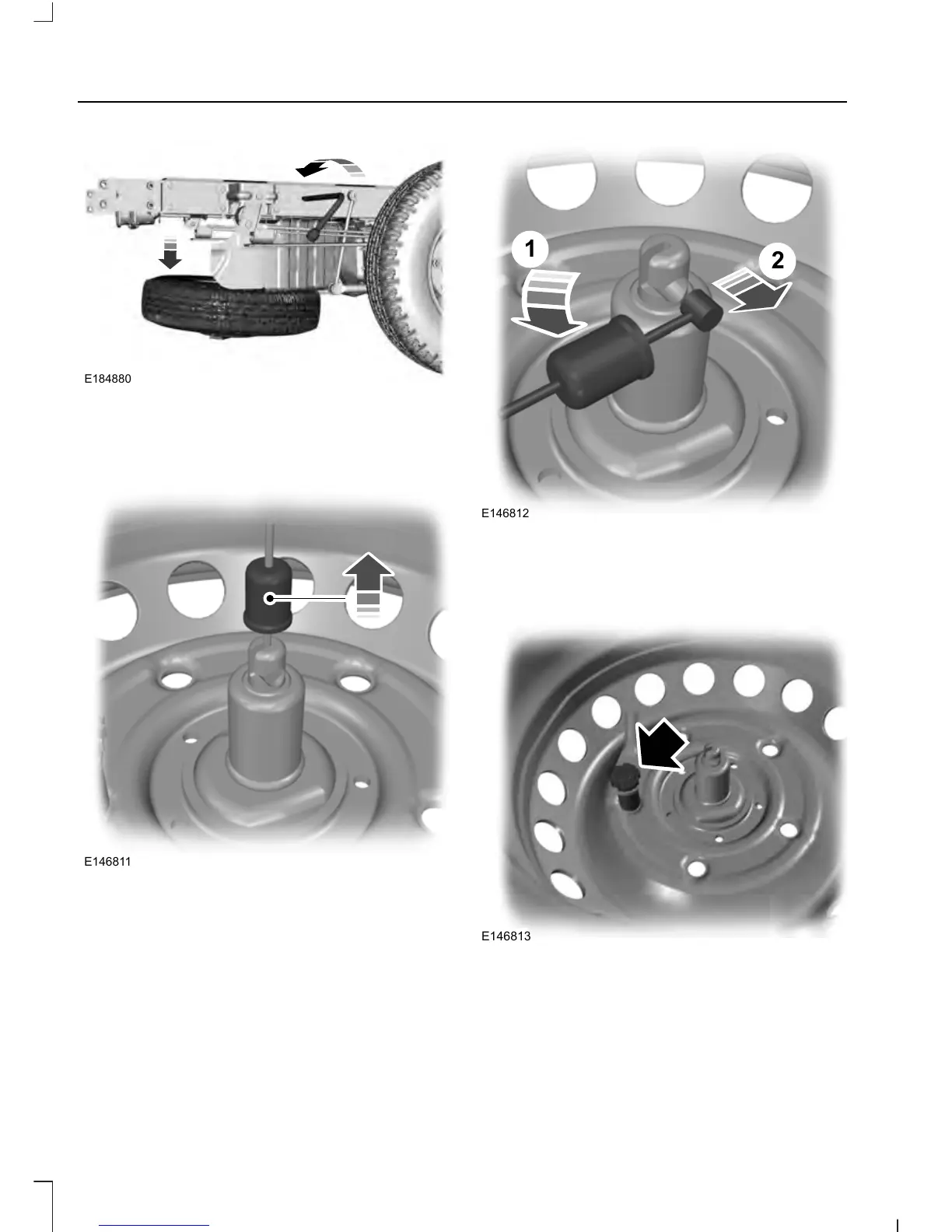

E184880
1. Insert the flat end of the lug wrench
into the socket. Turn counterclockwise
until the spare wheel rests on the
ground and the cable is loose.
E146811
2. Raise the cable end cover.
E146812
1
2
3. Rotate the cable through 90 degrees.
Slide the cable through the slot to
release the spare wheel bracket from
the winch.
E146813
4. Remove the retaining nut to release
the spare wheel bracket.
268
Transit (TTH) Canada/United States of America, enUSA, First Printing
Wheels and Tires
