Ford 3930 - Tractor General Dimensions (Four-Wheel Drive)

---------------SECTION C

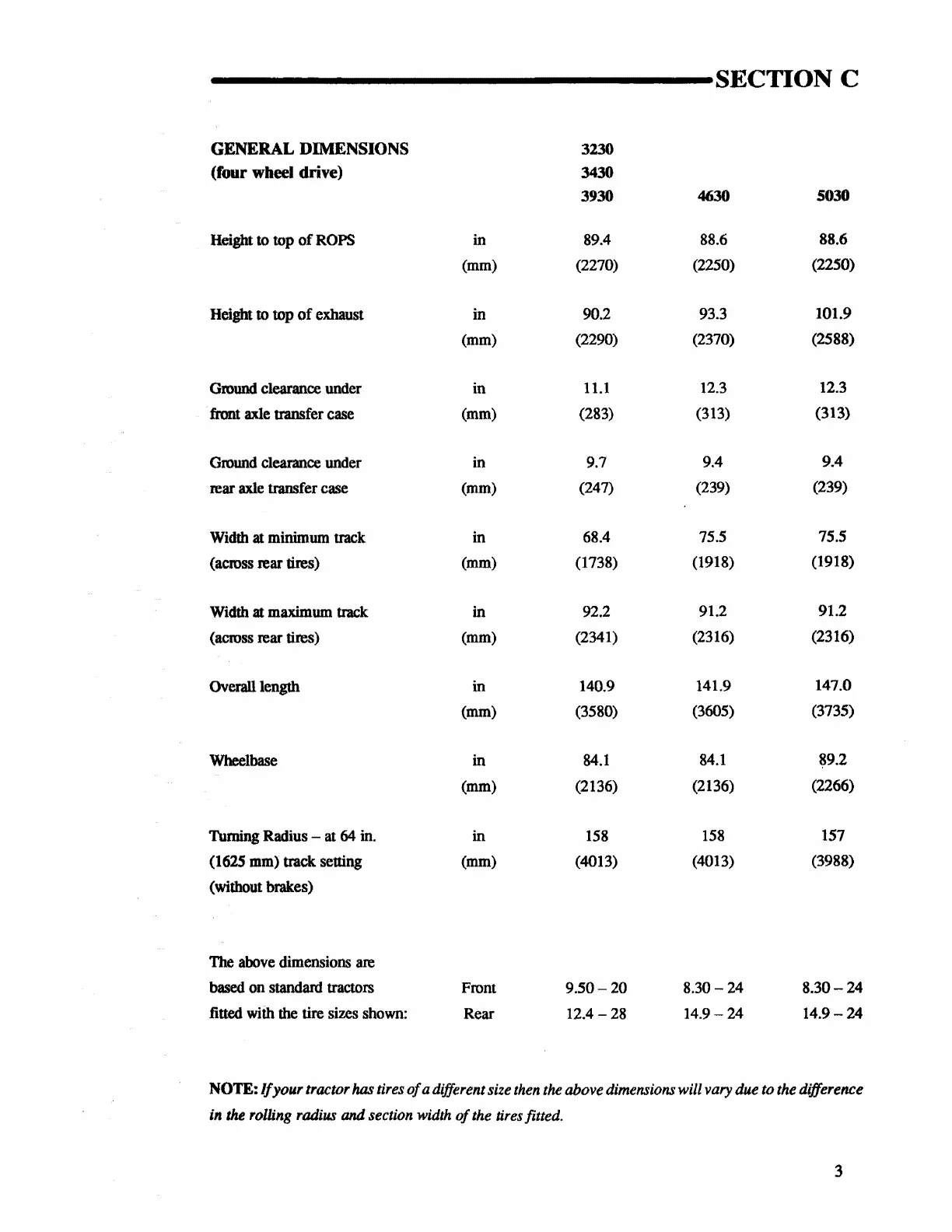

GENERAL DIMENSIONS
(four wheel drive)
Height to top of ROPS
Height to top of exhaust
Ground clearance under
front axle transfer
case
Ground clearance under
rear axle transfer case
Width at minimum track
(across rear tires)
Width at maximum track
(across rear tires)
Overall length
Wheelbase
Turning Radius at 64 in.
(1625 mm) track setting
(without brakes)
The above dimensions are
based on standard tractors
fitted
with the tire sizes shown:
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
in
(mm)
Front
Rear
3230
3430
3930
89.4
(2270)
90.2
(2290)
11.1
(283)
9.7
(247)
68.4
(1738)
92.2
(2341)
140.9
(3580)
84.1
(2136)
158
(4013)
9.50-20
12.4 - 28
4630
88.6
(2250)
93.3
(2370)
12.3
(313)
9.4
(239)
15.5
(1918)
91.2
(2316)
141.9
(3605)
84.1
(2136)
158
(4013)
8.30-24
14.9-24
5030
88.6
(2250)
101.9
(2588)
12.3
(313)
9.4
(239)
75.5
(1918)
91.2
(2316)
147.0
(3735)
~9.2
(2266)
157
(3988)
8.30-24
14.9-24
NOTE: If your tractor has tires of a different size then the above dimensions will vary due to the difference
in the rolling radius and section width of the tires fitted.
