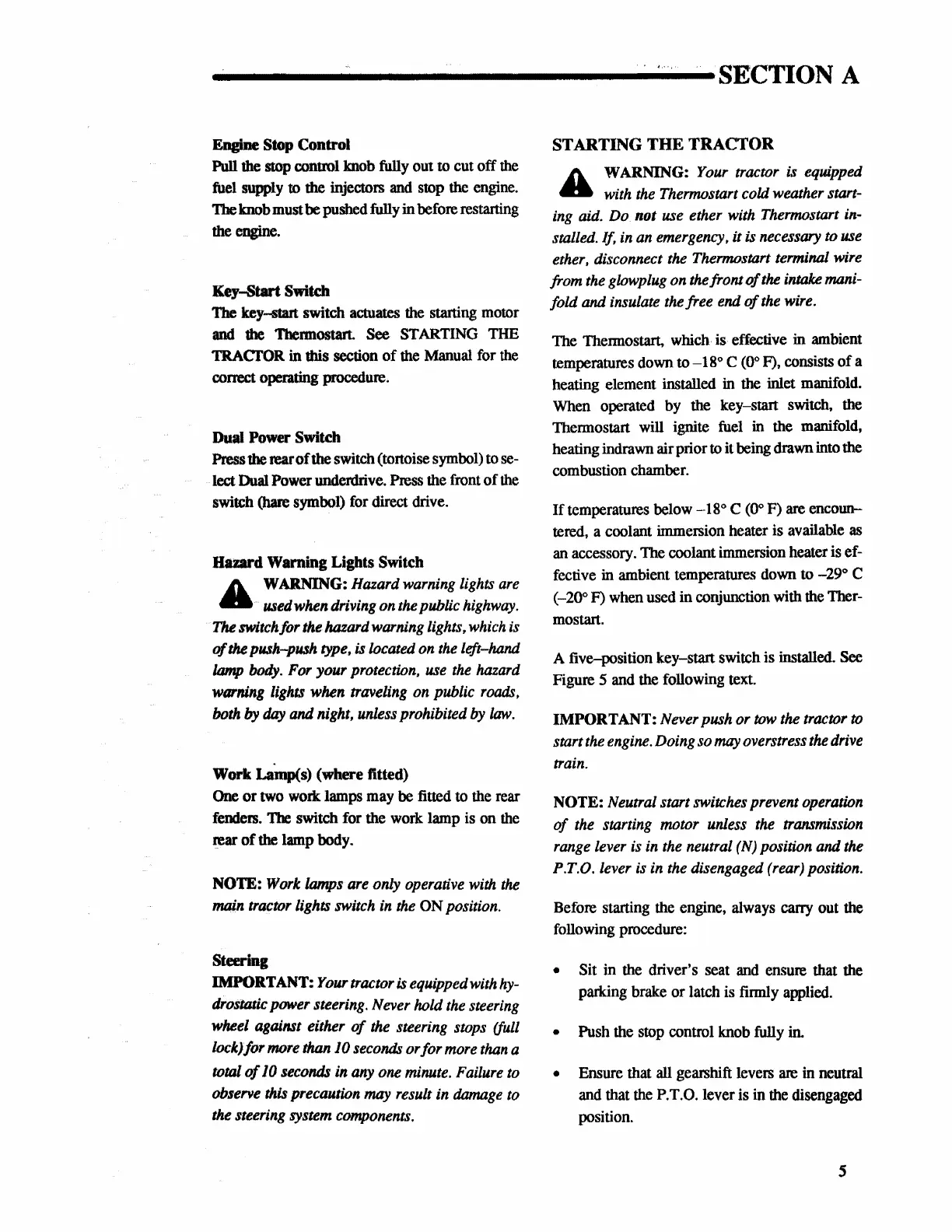

-...--...;..----------SECTION
A
Engine Stop
Control
Pull the stop control knob fully out to cut off
the
fuel
supply
to
the
injectors
and
stop
the
engine.
nie
knob must
be
pushed fully in before restarting
the
engine.
Key-Start
Switch
nie
key-start switch actuates
the
starting motor
and
the 'lbennostart. See STARTING
THE
TR.ACTOR
in this section
of
the Manual for
the
correct operating procedure.
Dual Power Switch
Press
the
rear
of
the
switch (tortoise symbol)
to
se-
lect Dual Power underdrive.
Press
the front of
the
switch (hare symbol)
for
direct drive.
Hazard
Warning
Lights Switch
A.
WARNING: Hazard warning lights
are
4lla
used when driving on the public
highway.
The switch/or the hazard warning lights, which
is
of
the
push-push type,
is
located on
the
left-hand
lamp
body.
For
your protection,
use
the
hazard
warning lights when traveling on public
roads.
both
by
day
and
night, unless prohibited by
law.
Work
Lainp(s)
(where
fitted)
One
or
two work lamps may
be
fitted
to
the rear
fenders.
The
switch for the work lamp is on
the
rear
of
the lamp body.
NOTE:
Work
lamps are only operative with
the
main tractor lights switch
in
the
ON
position.
Steering
IMPORTANT:
Your tractor
is
equipped with
hy-
drosmtic power steering. Never hold
the
steering
wheel
against either
of
the
steering stops (full
lock)for more than
JO
seconds or for more
than
a
total
of
JO
seconds in
any
one minute. Failure
to
observe
this
precaution may result in
damage
to
the steering system components.
STARTING
THE
TRACTOR
A WARNING: Your tractor
is
equipped
.a
with
the
Thermostart cold weather start-
ing
aid.
Do
not use ether with Thennostart
in-
stalled. If, in an emergency. it
is
necessary
to
use
ether, disconnect the
Thermosta.rt
terminal wire
from the glowplug on
the
front
of
the
inta.ke
ma.ni-
fold
and
insulate the free end
of
the
wire.
The Thennostart,
which·
is·
effective in ambient
temperatures down to
-18°
C (0° F), consists of a
heating element installed in the inlet manifold.
When operated by the key-start switch, the
Thennostart will ignite fuel
in
the manifold,
heating indrawn air prior
to
it being drawn into the
combustion chamber.
If
temperatures below
-18°
C (0°
F)
are
encoun-
tered, a coolant immersion heater is available
as
an
accessory. The coolant immersion heater is ef-
fective
in
ambient temperatures down to
-29°
C
(-200 F) when used in conjunction with
the
Ther-
mostart.
A five-position key-start switch is installed. See
Figure 5 and the following text.
IMPORTANT:
Never push or
tow
the tractor
to
sta.rt
the
engine.
Doing so may overstress
the
drive
train.
NOTE:
Neutral start switches prevent operation
of
the
sta.rting
motor unless
the
transmission
range lever
is
in
the neutral
(N)
position and the
P.T.O. lever
is
in
the disengaged
(rear)
position.
Before starting the engine, always
carry
out the
following procedure:
• Sit in the driver's seat
and
ensure that the
parking brake or latch is finnly applied.
• Push the stop control knob fully
in.
• Ensure that all gearshift levers
are
in neutral
and that
the
P.T.O. lever is in
the
disengaged
position.
s
