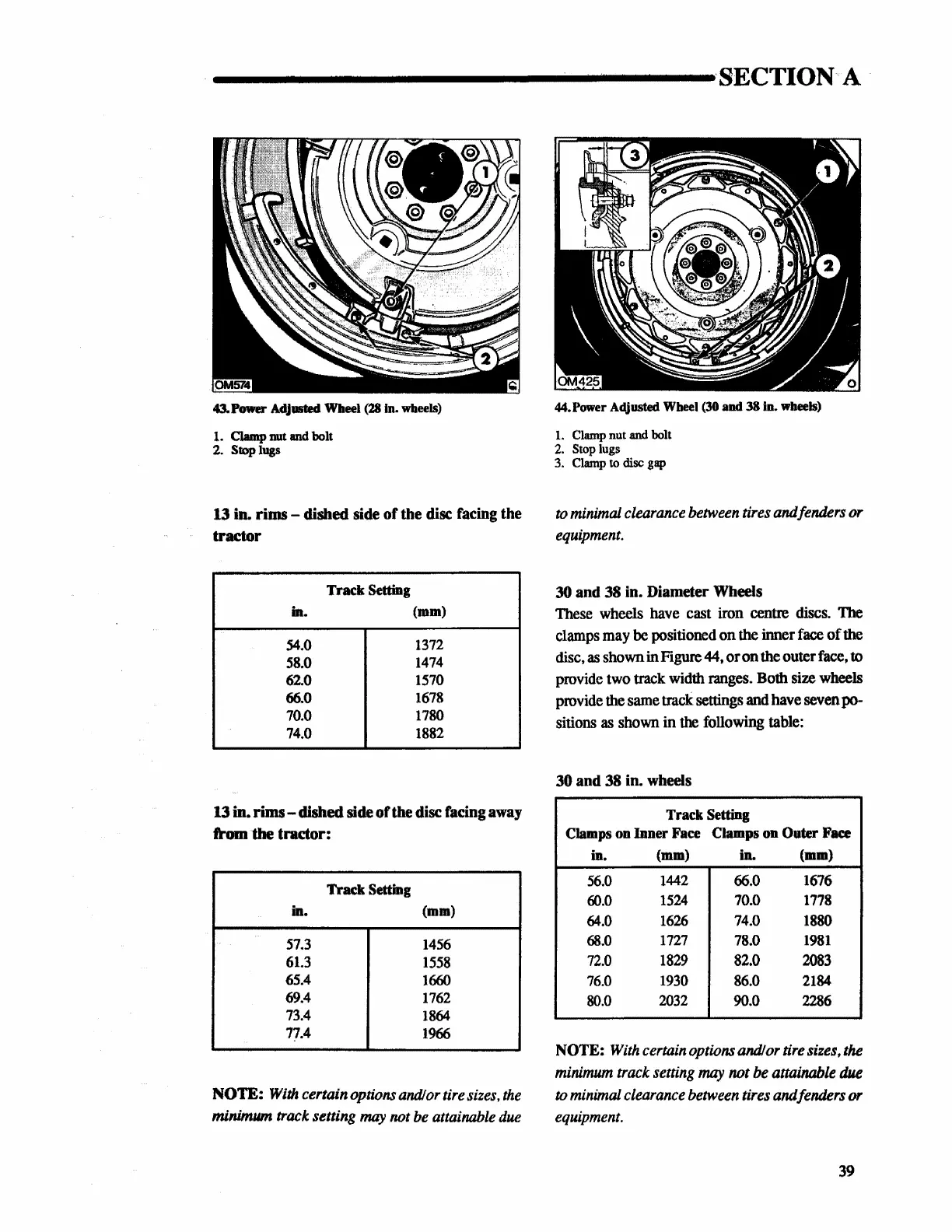

43. Power Adjusted Wheel (28 In. wheels)
1. Clamp nut and bolt
2. Stoplugs
13 in. rims - dished side of the disc facing the
tractor
Track Setting
in.
(mm)
54.0
1372
58.0
1474
62.0
1570
66.0
1678
70.0
1780
74.0
1882
13 in. rims- dished side of the disc facing away
from the tractor:
Track Setting
in.
(mm)
57.3 1456
61.3
1558
65.4
1660
69.4
1762
73.4
1864
77.4
1966
NOTE: With certain options and/or tire sizes, the
mi.nimum track setting may not be attainable due
44.Power Adjusted Wheel (30 and 38 in. wheels)
1. Clamp nut and bolt
2.
Stop lugs
3. Clamp to disc gap
to minimal clearance between tires and/enders or
equipment.
30 and 38 in. Diameter Wheels
These wheels have cast iron centre discs. The
clamps may be positioned on the inner face of the
disc, as showninFigure44, oron the outer face, to
provide two track width ranges. Both size wheels
provide the same track settings and have seven po-
sitions as shown in the following table:
30 and 38 in. wheels
Track Setting
Clamps on Inner Face Clamps on Outer Face
in.
(mm)
in.
(mm)
56.0
1442
66.0
1676
ro.o
1524 70.0
1778
64.0
1626 74.0
1880
68.0
1727
78.0
1981
72.0
1829 82.0 2083
76.0
1930
86.0 2184
80.0
2032
90.0
2286
NOTE: With certain options and/or tire sizes, the
minimum track setting may not be attai'nable due
to minimal clearance between tires andfende.rs or
equipment.
