Power steering fluid reservoir. See Power Steering Fluid Check (page 220).I
Engine coolant reservoir. See Engine Coolant Check (page 219).J
1
The filler caps and the engine oil dipstick are coloured for easy identification.

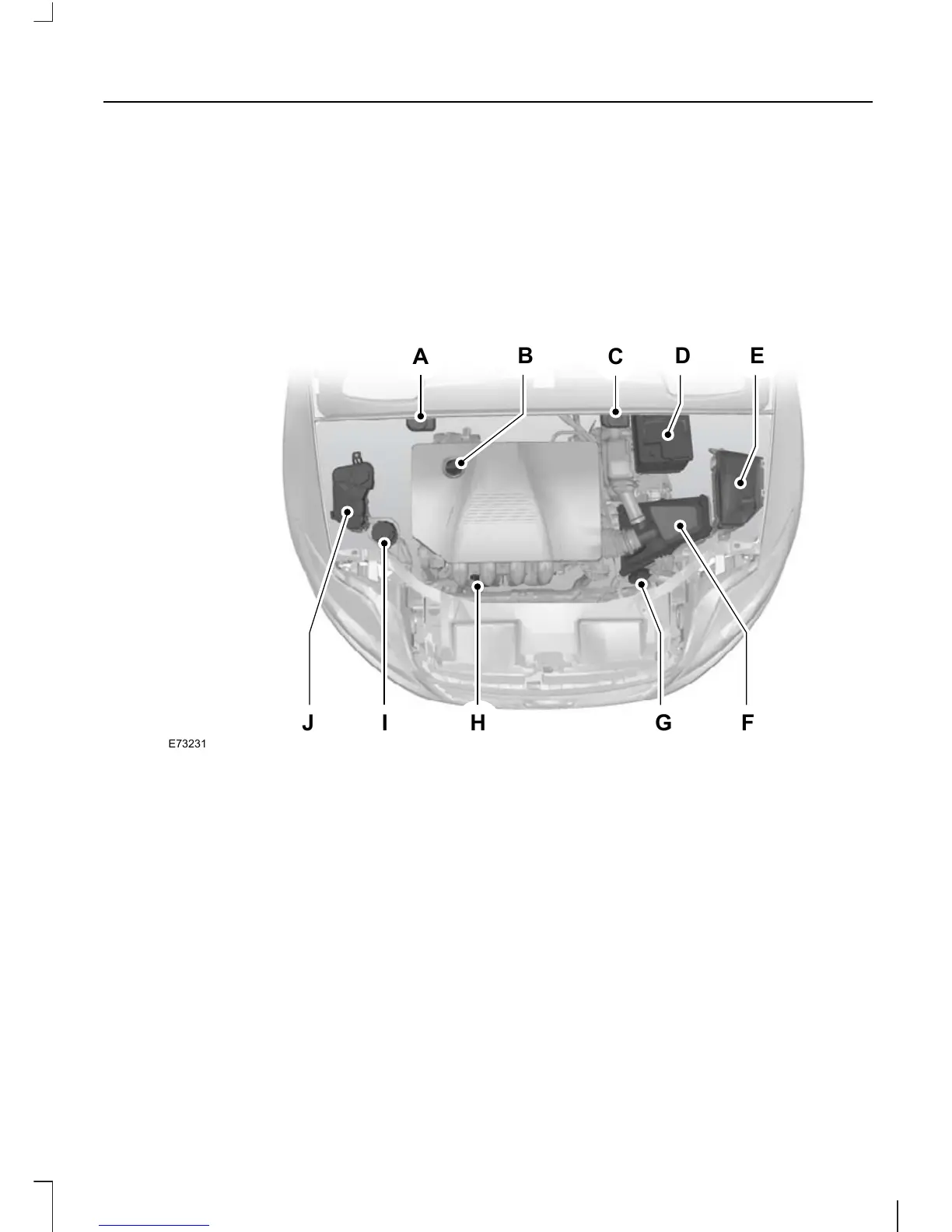

UNDER BONNET OVERVIEW - 2.0L DURATEC-HE (MI4)
A C
GJ F
D EB
HI
E73231
Brake and clutch fluid reservoir (right-hand drive). See Brake and Clutch Fluid
Check (page 220).
A
Engine oil filler cap
1
. See Engine Oil Check (page 219).B
Brake and clutch fluid reservoir (left-hand drive). See Brake and Clutch Fluid
Check (page 220).
C
Battery. See Jump-Starting the Vehicle (page 226).D
Engine compartment fuse box. See Fuse Specification Chart (page 195).E
Air cleaner. No maintenance necessary.F
Screen washer fluid reservoir. See Washer Fluid Check (page 221).G
Engine oil dipstick
1
. See Engine Oil Check (page 219).H
211
Maintenance
