Fuel gauge
Note: On type 3 this gauge is shown within
the message centre.
The arrow adjacent to the fuel pump
symbol tells you on which side of your
vehicle the fuel filler cap is located.

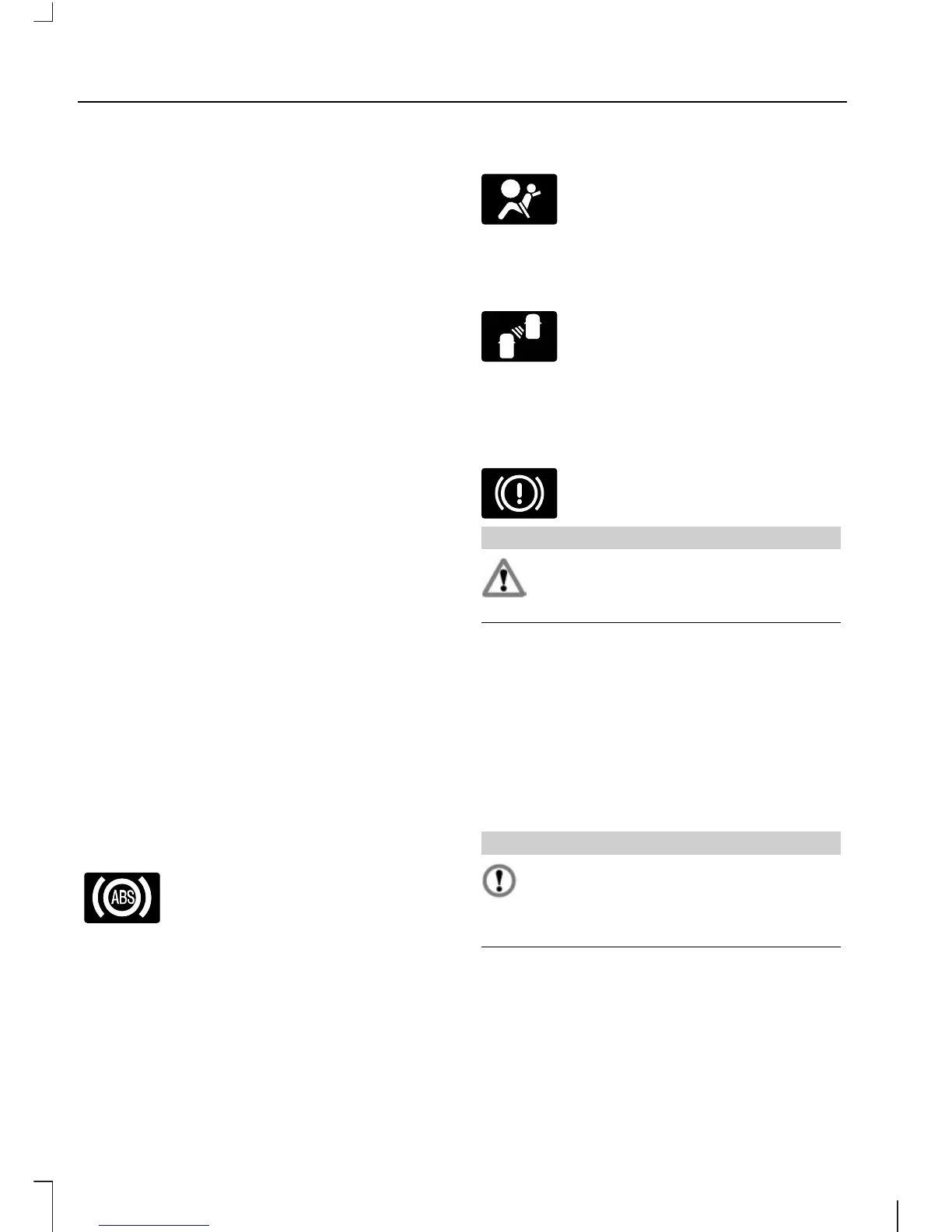

WARNING LAMPS AND
INDICATORS
The following warning lamps and
indicators will illuminate briefly when you
switch the ignition on to confirm that the
system is operational:
• ABS
• Airbag
• Blind spot monitor
• Brake system
• Coolant temperature
• Engine
• Frost
• Ignition
• Oil pressure
• Stability control (ESP).
If a warning or indicator lamp does not
illuminate when the ignition is switched
on, it indicates a malfunction. Have the
system checked by properly trained
technician.
ABS warning lamp
If it illuminates when you are
driving, this indicates a
malfunction. You will continue
to have normal braking (without ABS).
Have the system checked by a properly
trained technician as soon as possible.
Airbag warning lamp
If it illuminates when you are
driving, this indicates a
malfunction. Have the system
checked by a properly trained technician.
Blind spot monitor indicator
It will illuminate when this
feature is switched off or in
conjunction with a message.
See Blind Spot Monitor (page 75). See
Information Messages (page 97).
Brake system lamp
It illuminates when the parking
brake is engaged.
WARNING
Reduce your speed gradually and
stop your vehicle as soon as it is safe
to do so. Use your brakes with care.
If it illuminates when you are driving, check
that the parking brake is not engaged. If
the parking brake is not engaged, this
indicates a malfunction. Have the system
checked by a properly trained technician
immediately.
Coolant temperature warning
lamp
CAUTION
Do not resume your journey if it
illuminates despite the level being
correct. Have the system checked by
a properly trained technician immediately.
