Dimension in mm (inches)
Dimension description
14
72 - 1512 (58 - 59
.5)
Over
all height - EC kerb w
eight without roof b
ars
1508 - 1548 (59
.
4 - 61)
Over
all height - EC kerb w
eight incl
uding roof bars
2850 (112.2)
Wheelba
se
157
9 - 1589 (62.2 - 62.
6)
Front tr
ack
1595 - 1605 (
62.8 - 63.2)
R
ear tr
ack
T
owing e

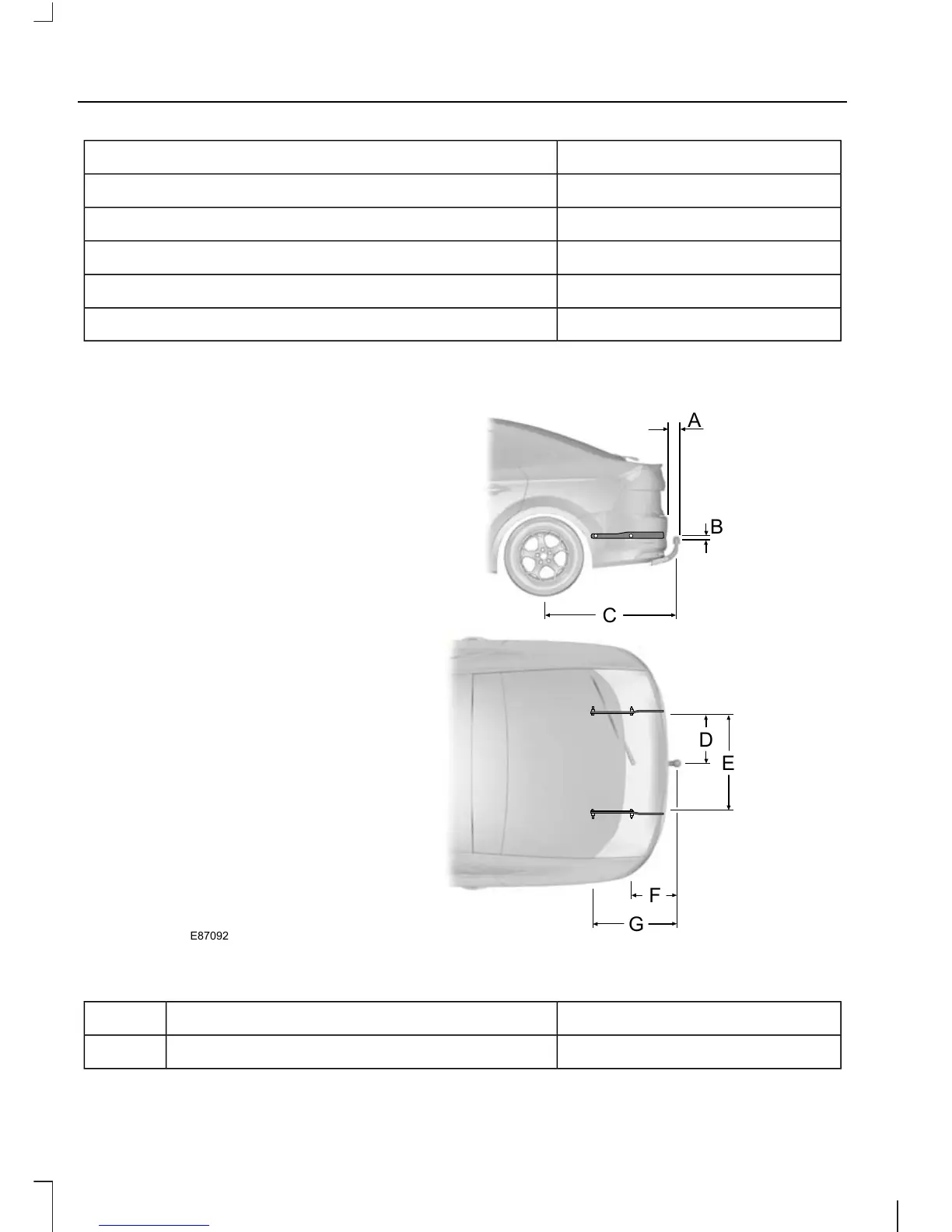

quipment dimensions
C
A
F
G
D
B
E
E87092
4-door
Dimension in mm (inches)
Dimension description
Item
102 (
4)
Bumper
–
end of t
ow ball
A
246
Capa
cities and Specifications
247
249
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
9
About this Manual
9
Symbols Glossary
9
Parts and Accessories
9
At a Glance
13
Child Safety
24
Child Seats
24
Booster Seats
25
Child Seat Positioning
26
Booster Cushion (Group)
26
Child Safety
27
ISOFIX Anchor Points
28
Child Safety Locks
29
Occupant Protection
31
Principle of Operation
31
Occupant Protection
32
Fastening the Seat Belts
33
Seat Belt Height Adjustment
33
Seat Belt Reminder
34
Using Seat Belts During Pregnancy
34
Disabling the Passenger Airbag
34
Keys and Remote Controls
36
General Information on Radio
36
Frequencies
36
Programming the Remote Control
36
Changing the Remote Control Battery
36
Keys and Remote Controls
37
Locks
39
Locking and Unlocking
39
Global Opening and Closing
41
Keyless Entry
42
Global Opening
42
Global Closing
42
Locking the Vehicle
43
Passive Key
43
Unlocking the Vehicle
44
Disabled Keys
45
Engine Immobiliser
46
Principle of Operation
46
Coded Keys
46
Arming the Engine Immobiliser
46
Disarming the Engine Immobiliser
46
Alarm
47
Principle of Operation
47
Arming the Alarm
49
Disarming the Alarm
49
Steering Wheel
50
Adjusting the Steering Wheel
50
Audio Control
50
Wipers and Washers
52
Windscreen Wipers
52
Autowipers
52
Windscreen Washers
53
Rear Window Wiper and Washers
53
Headlamp Washers
54
Checking the Wiper Blades
54
Changing the Wiper Blades
54
Lighting
56
Lighting Control
56
Daytime Running Lamps
57
Autolamps
57
Automatic Main Beam Control
57
Front Fog Lamps
59
Rear Fog Lamps
59
Adjusting the Headlamps - Vehicles With: Adaptive Front Lighting/Xenon Headlamps
59
Headlamp Levelling
59
Adaptive Headlamps
60
Hazard Warning Flashers
62
Direction Indicators
62
Interior Lamps
62
Removing a Headlamp
63
Changing a Bulb
65
Rear Lamps
68
Central High Mounted Brake Lamp
68
Bulb Specification Chart
71
Windows and Mirrors
73
Power Windows
73
Exterior Mirrors
75
Electric Exterior Mirrors
75
Auto-Dimming Mirror
77
Blind Spot Monitor
77
Instrument Cluster
80
Gauges
80
Instrument Cluster
81
Warning Lamps and Indicators
82
Audible Warnings and Indicators
84
Information Displays
86
General Information
86
Information Displays
87
Trip Computer
95
Personalised Settings
97
Information Messages
99
Climate Control
108
Principle of Operation
108
Air Vents
108
Manual Climate Control
109
Climate Control
110
Automatic Climate Control
111
Heated Windows and Mirrors
113
Parking Heater
114
To Programme the Heating Times
114
Auxiliary Heater
114
Programming Functions Program 1/2
115
Electric Sunroof
118
Seats
121
Sitting in the Correct Position
121
Manual Seats
121
Power Seats
122
Head Restraints
124
Rear Seats
124
Heated Seats
125
Ventilated Seats
126
Convenience Features
127
Sun Shades
127
Instrument Lighting Dimmer
127
Clock
127
Cigar Lighter
127
Ashtray
128
Auxiliary Power Points
128
Cup Holders
129
Glove Box
129
Storage Compartments
129
Map Pockets
130
Memory Function
130
Glasses Holder
131
CD Changer
131
Auxiliary Input (AUX IN) Socket
132
USB Port
132
Floor Mats
132
Starting and Stopping the Engine
133
General Information
133
Ignition Switch
133
Keyless Starting
133
Steering Wheel Lock
135
Starting a Petrol Engine
135
Starting a Petrol Engine - E85
136
Starting a Diesel Engine
137
Diesel Particulate Filter
137
Switching off the Engine
138
Engine Block Heater
138
Start-Stop
140
Principle of Operation
140
Using Start-Stop
140
Eco Mode
142
Principle of Operation
142
Using Eco Mode
142
Fuel and Refuelling
143
Fuel Quality - Petrol
143
Fuel Quality - E85
143
Fuel Quality - Diesel
143
Catalytic Converter
144
Fuel Filler Flap
144
Fuel and Refuelling
145
Refuelling
146
Refuelling - E85
146
Fuel Consumption
146
Technical Specifications
146
Transmission
152
Manual Transmission
152
Automatic Transmission
152
Brakes
152
Brakes
155
Principle of Operation
155
Hints on Driving with Anti-Lock
155
Brakes
155
Parking Brake
155
Stability Control
156
Principle of Operation
156
Using Stability Control
156
Hill Start Assist
157
Principle of Operation
157
Using Hill Start Assist
157
Hill Start Assist
158
Active Suspension
160
Principle of Operation
160
Using Active Suspension
160
Parking Aids
161
Principle of Operation
161
Using the Parking Aid
161
Rear View Camera
163
Principle of Operation
163
Using the Rear View Camera
163
Rear View Camera
164
Cruise Control
166
Principle of Operation
166
Using Cruise Control
166
Cruise Control
167
Adaptive Cruise Control (ACC)
168
Principle of Operation
168
Using Adaptive Cruise Control
169
Adaptive Cruise Control (Acc)
170
Forward Alert Function
173
Speed Limiter
174
Principle of Operation
174
Using the Speed Limiter
174
Speed Limiter
175
Driver Alert
176
Principle of Operation
176
Using Driver Alert
176
Driver Alert
177
Lane Departure Warning
178
Principle of Operation
178
Using Lane Departure Warning
178
Lane Departure Warning
179
Load Carrying
180
General Information
180
Luggage Anchor Points
180
Sliding Loadspace Floor
181
Rear under Floor Storage
183
Luggage Covers
183
Cargo Nets
184
Roof Racks and Load Carriers
185
Dog Guard
185
Load Retaining Fixtures
187
Towing
189
Towing a Trailer
189
Tow Ball
189
Driving Hints
193
Running-In
193
General Driving Points - Vehicles With: Sports Suspension
193
Cold Weather Precautions
193
Driving through Water
193
Roadside Emergencies
194
First Aid Kit
194
Warning Triangle
194
Fuses
195
Fuse Box Locations
195
Changing a Fuse
196
Fuse Specification Chart
197
Central Fuse Box
201
Rear Fuse Box
203
Vehicle Recovery
207
Towing Points
207
Towing the Vehicle on Four Wheels
207
Maintenance
209
General Information
209
Opening and Closing the Bonnet
209
Under Bonnet Overview - 1.6L
211
Duratec-16V Ti-VCT (Sigma)
211
Scti (Sigma)
212
Under Bonnet Overview - 2.0L
213
Scti (MI4)
214
Under Bonnet Overview - 2.3L
215
Under Bonnet Overview - 1.6L
216
Duratorq-Tdci (DV) Diesel
216
Under Bonnet Overview - 2.0L
217
Under Bonnet Overview - 2.2L
219
Engine Oil Dipstick - 1.6L Duratec-16V
220
Ti-VCT (Sigma)
220
Engine Oil Dipstick - 1.6L Ecoboost Scti
220
(Sigma)
220
Engine Oil Dipstick - 2.0L Duratec-HE
220
Engine Oil Dipstick - 2.0L Ecoboost Scti
220
Engine Oil Dipstick - 1.6L Duratorq-Tdci
221
(DV) Diesel/2.0L Duratorq-Tdci (DW)
221
Diesel
221
Engine Oil Check
221
Engine Coolant Check
221
Brake and Clutch Fluid Check
222
Power Steering Fluid Check
222
Washer Fluid Check
223
Technical Specifications
223
Vehicle Care
226
Cleaning the Exterior
226
Cleaning the Interior
226
Repairing Minor Paint Damage
227
Vehicle Battery
228
Jump-Starting the Vehicle
228
Changing the Vehicle Battery
229
Battery Connection Points
229
Wheels and Tyres
230
General Information
230
Changing a Road Wheel
230
Tyre Repair Kit
235
Tyre Care
239
Using Winter Tyres
239
Using Snow Chains
240
Tyre Pressure Monitoring System
240
Technical Specifications
241
Vehicle Identification Vehicle Identification Plate
245
Vehicle Identification Number
246
Capacities and Specific-
247
Technical Specifications
247
Capacities and Specifications
248
Audio Introduction
251
Important Audio Information
251
Audio Unit Overview
252
Audio System Security
255
Security Code
255
Lost Security Code
255
Entering a Security Code
255
Incorrect Security Code
255
Audio Unit Clock and Date Displays
256
Setting the Clock and Date on the Audio
256
Unit
256
Changing Date and Time
256
12/24 Hour Format
256
Audio Unit Operation
257
On/Off Control
257
Bass/Treble Control
257
Balance/Fade Control
257
Audio Menu Control
257
Station Preset Buttons
259
Waveband Button
259
Autostore Control
260
Traffic Information Control
260
Station Tuning Control
261
Audio Unit Menus
263
Automatic Volume Control
263
Digital Signal Processing (DSP)
263
Audio Distortion Reduction (CLIP)
263
Alternative Frequencies
264
Regional Mode (REG)
264
News Broadcasts
265
Compact Disc Player
266
Loading Compact Discs
266
Track Selection
266
Loading the Compact Disc Changer
266
Changer
266
Compact Disc Playback
267
Fast Forward/Reverse
267
Shuffle/Random
267
Compact Disc Track Compression
268
Compact Disc Track Scanning
268
Ejecting Compact Discs
269
Repeat Compact Disc Tracks
269
MP3 File Playback
269
MP3 Display Options
270
Ending Compact Disc Playback
270
Auxiliary Input (AUX IN) Socket
271
Audio Troubleshooting
272
Telephone
273
General Information
273
Telephone Setup
273
Bluetooth Setup
274
Telephone Controls
274
Using the Telephone - Vehicles Without
275
Navigation System
275
Using the Telephone - Vehicles with
277
Navigation System
277
Voice Control
280
Principle of Operation
280
Using Voice Control
280
Audio Unit Commands
281
Voice Control
282
Telephone Commands
290
Navigation System Commands
295
Climate Control Commands
295
Connectivity
298
General Information
298
Connecting an External Device
299
Connecting an External Device - Vehicles With: Bluetooth
299
Using a USB Device
300
Using an Ipod
302
Navigation Introduction
306
Road Safety
306
Navigation System
307
Getting Started
307
Appendices
309
Type Approvals
309
Type Approvals
310
Electromagnetic Compatibility
311
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ford Mondeo 2012 and is the answer not in the manual?
Ask a question
Ford Mondeo 2012 Specifications
General
Brand
Ford
Model
Mondeo 2012
Category
Automobile
Language
English
Related product manuals
Ford Mondeo 2010
304 pages
Ford MONDEO 2017
16 pages
Ford 2014 Mondeo
446 pages
Ford 2010 Mondeo
16 pages
Ford Mondeo 2007
292 pages
Ford 2006 Mondeo
198 pages
Ford MONDEO
326 pages
Ford Mustang 2012
58 pages
Ford 2012 Mustang
350 pages
Ford 2012 F-150
476 pages
Ford Fiesta 2012
360 pages
Ford Expedition 2012
400 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
