US Type Charger 48A Installation Manual Rev0.1
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
4.2 Charging an Electric Vehicle (EV)
Choices of start charging are as below:
4.2.1 Plug and Charge
1. Insert the charging plug into the EV
2. Charging session started

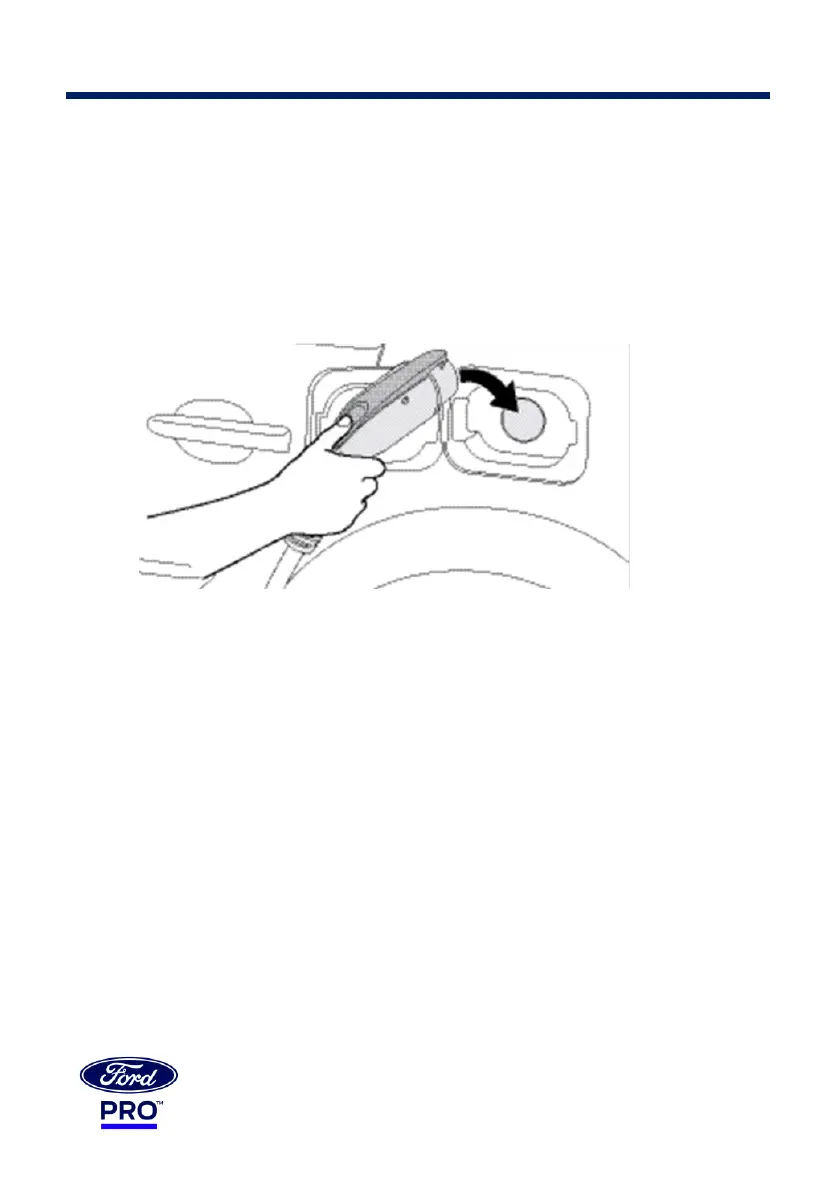

Figure 4-2 Connect the charging plug to the EV
4.3 Stop charging
1. Unplug any time (disconnect the charging plug from EV to stop
charging session)
2. Session ended (please return the connector to the holster)
4.3.1 Auto restart
When a charging session is interrupted due to a temporary error condition,
the charge point will automatically restart charging when the cause of the
temporary error condition returns to normal. Status indicator lights remain
flashing RED until the error condition is resolved.
• Temporary error conditions included: Over Current, Over Voltage,
Under Voltage, and Over Temperature.
