02/2020 WDOC Diamond Sense www.forestgroup.com v1.4

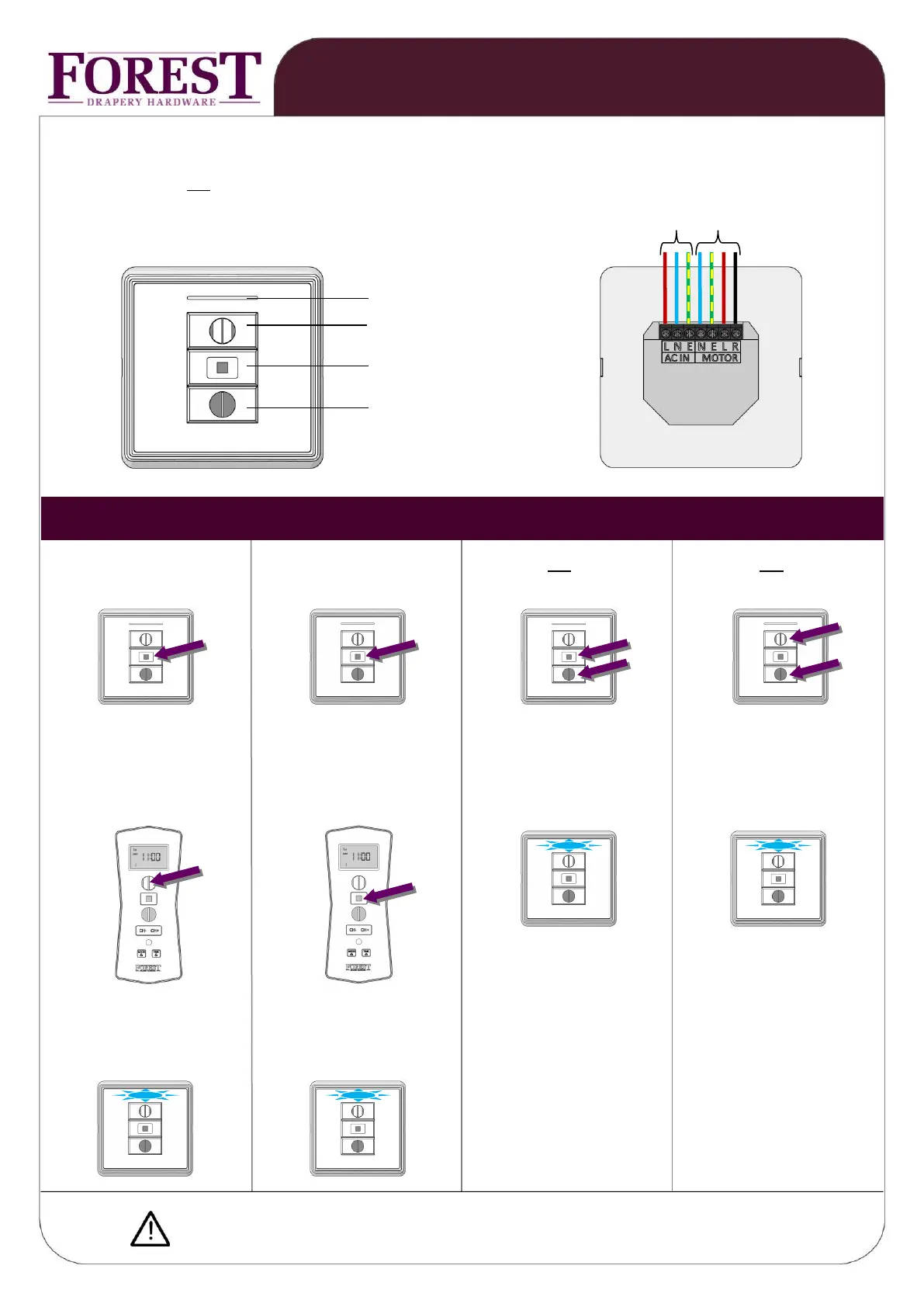

FOREST FMS/BCS MULTI RECEIVER 5104011500
TECHNICAL SPECIFICATION FMS/BCS RECEIVER:
● power: 100 - 240Vac 50/60Hz – 500Wmax.
● controls one tubular or FMS motor. When more motors → use group relay
● can also be used as wall switch
● terminal max. 2,5mm² to power to motor
● working temperature -10°C - +50°C
control LED
OPEN/UP button
STOP button
CLOSE/DOWN button
keep STOP button pressed keep STOP button pressed keep STOP and CLOSE button keep OPEN and CLOSE button
for 5 seconds until LED blinks for 5 seconds until LED blinks pressed for 6 seconds pressed for 6 seconds
5 sec 5 sec 6 sec
within 10 sec. select channel within 10 sec. select (to be after 5 sec. the blue LED will blue LED will blink 3x to
and press OPEN button: removed) channel and press blink 3x to acknowledge: acknowledge:
STOP button:
blue LED will blink 3x to blue LED will blink 3x to
acknowledge: acknowledge:
Do not mount within 1 meter from other equipment and receivers. This will interfere with the receiver.
PROGRAMMING CHANNEL REMOVE PROGRAMMED DELETE ALL PREVIOUS CHANGE MOTOR
TO RECEIVER: CHANNEL: PROGRAMMED CHANNELS: DIRECTION
