Forest Diamond - BS 24 V Double Shaft Motor Setup; Technical Specifications; Wall Switch to BS Motor Programming; BS Motor Direction Change

07/2016 WDOC Diamond remote www.forestgroup.nl v1.4
BS 24V DOUBLE SHAFT MOTOR - 36.4800.0000
BUILD-IN RECEIVER - ELECTRONIC LIMIT SETTING
TECHNICAL SPECIFICATION:
● 24Vdc, 16Watt
● nom. 0.8Nm – max. 1.0Nm
● 34 rpm
● max. running time 7 min.
● max. curtain weight 4 kg
● max. 5 cord rolls
● has to be used with Diamond remote, Multi remote and/or Multi wall switch RF
● only to be used in Forest BS system and with Forest power supply for BS motor
IMPORTANT: WHEN USING THE QUICK LOCK CORD ROLL, BE SURE TO LOCK THE CORD BEFORE USING THE MOTOR

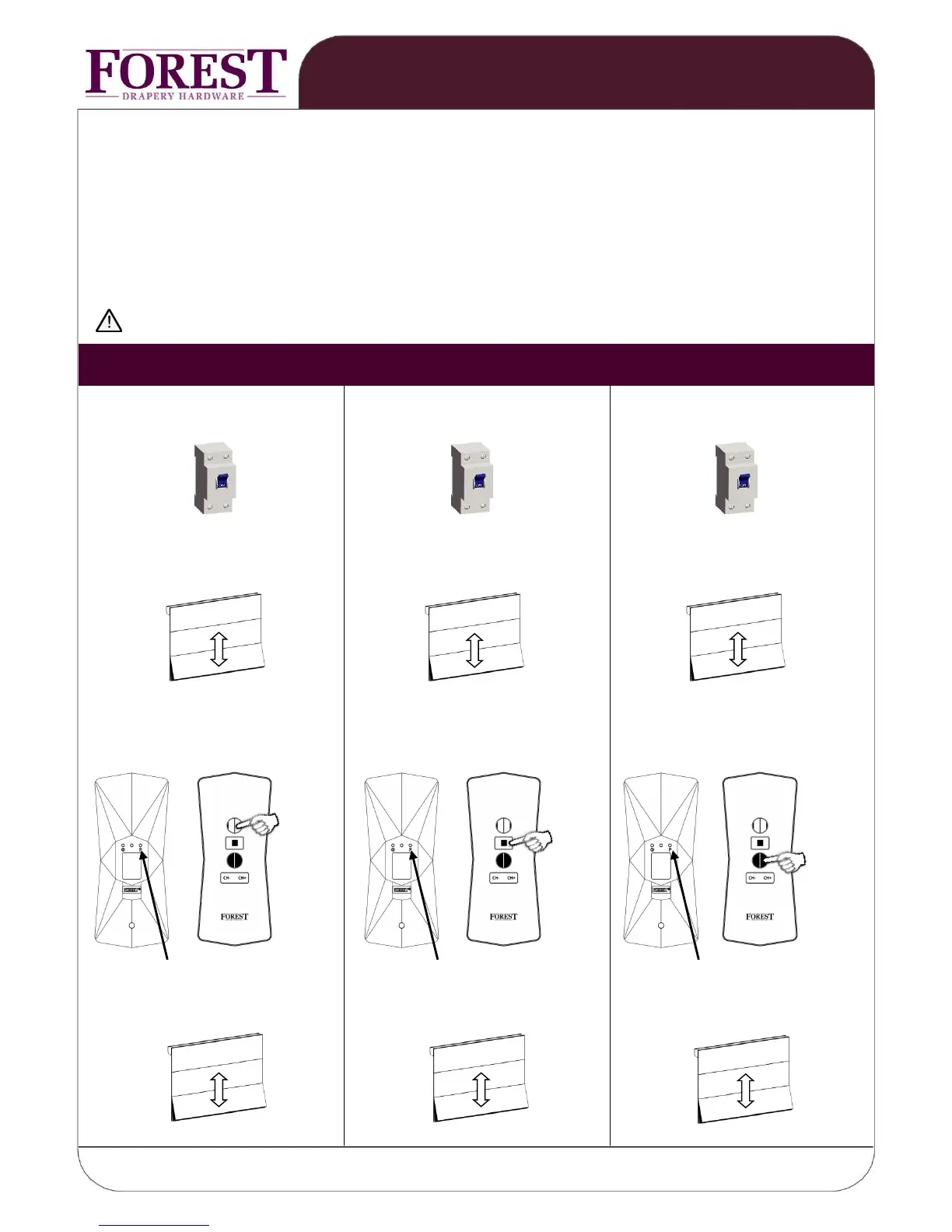

switch on power to the motor: switch on power to the motor: switch on power to the motor:
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
within 10 seconds, select channel, within 10 seconds, select channel, within 10 seconds, select channel,
press P button and press OPEN button press P button and press STOP button press P button and press CLOSE button
② press
OPEN 1x ② press
STOP 1x ② press
CLOSE 1x
① press P 1x ① press P 1x ① press P 1x
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
NOTE: if you need to start over, switch off the power and wait at least 20 seconds before switching in the power
PROGRAMMING WALL SWITCH REMOVE PROGRAMMED CHANNEL CHANGE MOTOR DIRECTION
TO BS MOTOR:
