Forest Diamond - Setting BS 24 V Double Shaft Motor Limits; Setting Upper End Limit; Setting Lower End Limit; Deleting BS Motor Limits and Memory

07/2016 WDOC Diamond remote www.forestgroup.nl v1.4
BS 24V DOUBLE SHAFT MOTOR - 36.4800.0000

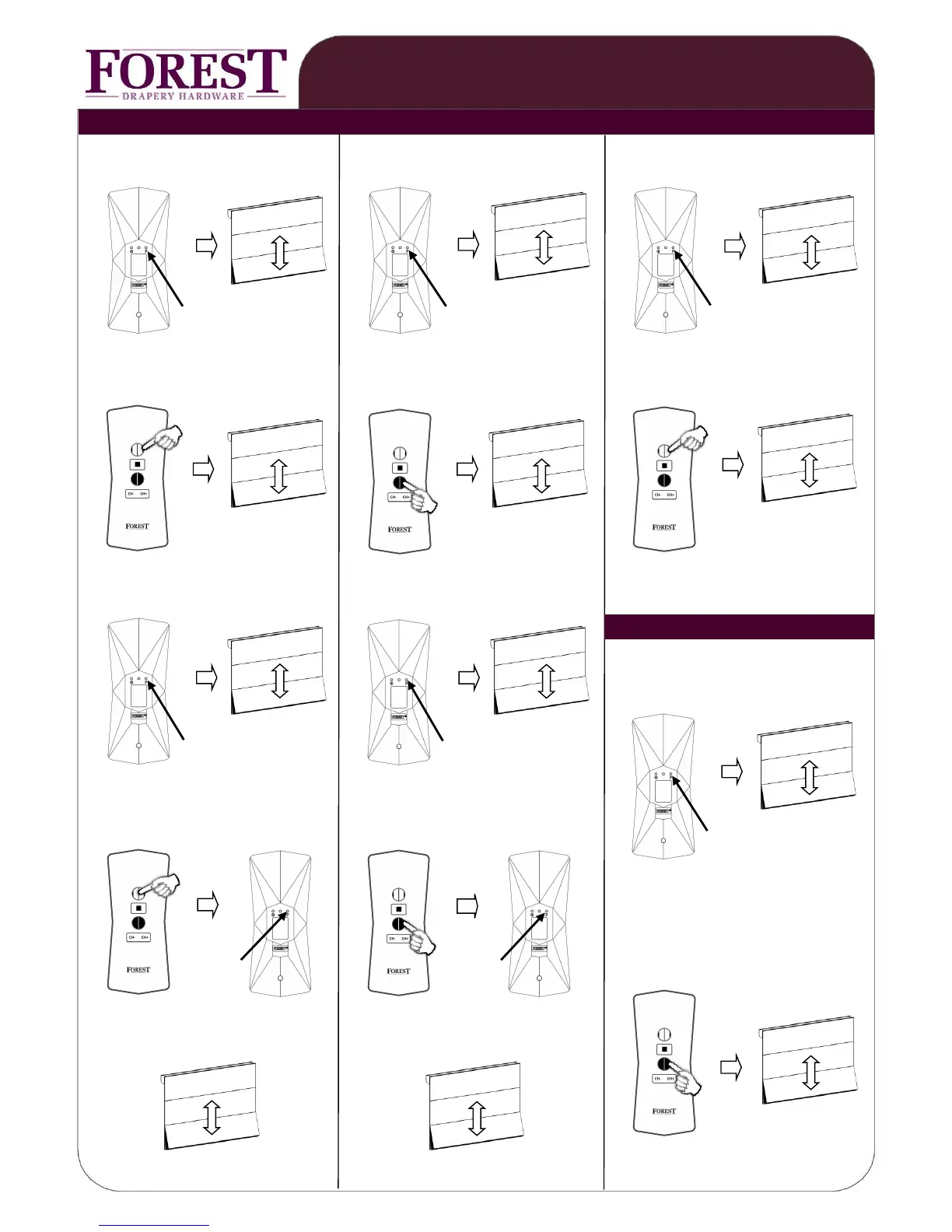

BUILD-IN RECEIVER - ELECTRONIC LIMIT SETTING
press P button once, press P button once, press P button twice,
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
1x P 1x P 2x P
press OPEN button once, press CLOSE button once, press OPEN button once,
motor will jog to acknowledge: motor will jog to acknowledge: motor will jog to acknowledge:
1x 1x
1x
press P button once, press P button once,
motor will jog to acknowledge: motor will jog to acknowledge:
press P button twice
motor will jog to acknowledge:
1x P 1x P
adjust desired upper end limit and adjust desired lower end limit and
press P to save the upper limit: press P to save the lower limit 2x P
press CLOSE button on remote,
motor will jog twice to acknowledge
1x P 1x P
motor will jog to acknowledge: motor will jog to acknowledge:
1x
SET UPPER END LIMIT SET LOWER END LIMIT DELETE LIMITS
DELETE ALL MEMORY
