Manual - Formech 450DT V1.0 - 0317
19

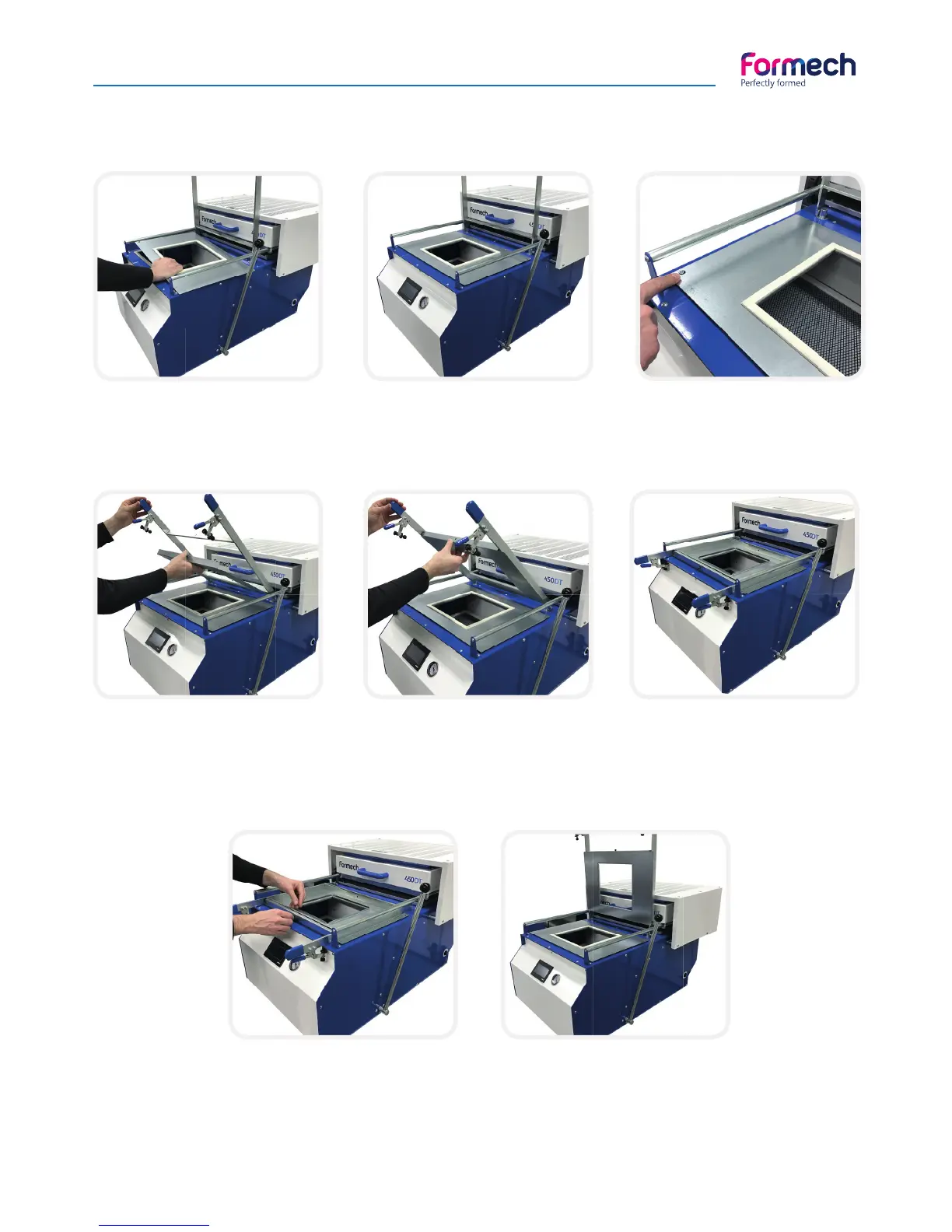

Reducing Windows - Fitting (optional)
Optional Extras and Accessories
1. Lift the clamp frame and
place the lower reducing
window.
7. Fit the bolt and the nut
to secure the window to the
clamp frame.
8. Reducing windows
correctly fi tted to the
machine.
6. Close and lock the clamp
frame. At this stage, you may
have to adjust the toggle
clamps.
2. The lower reducing window
locates over the two cap
head screws.
3. There is one cap head screw
at the front and another one
at the rear, opposite side.
4. Place the upper reducing
window in the clamp frame
at the rear.
5. Then locate it at the front of the
clamp frame. The hole on the top
plate of the reducing window needs
to be at the front of the machine.
