USB port provided for future updates.
2
Form Cure provides the light and heat necessary to
post-cure 3D printed parts to their optimal properties.

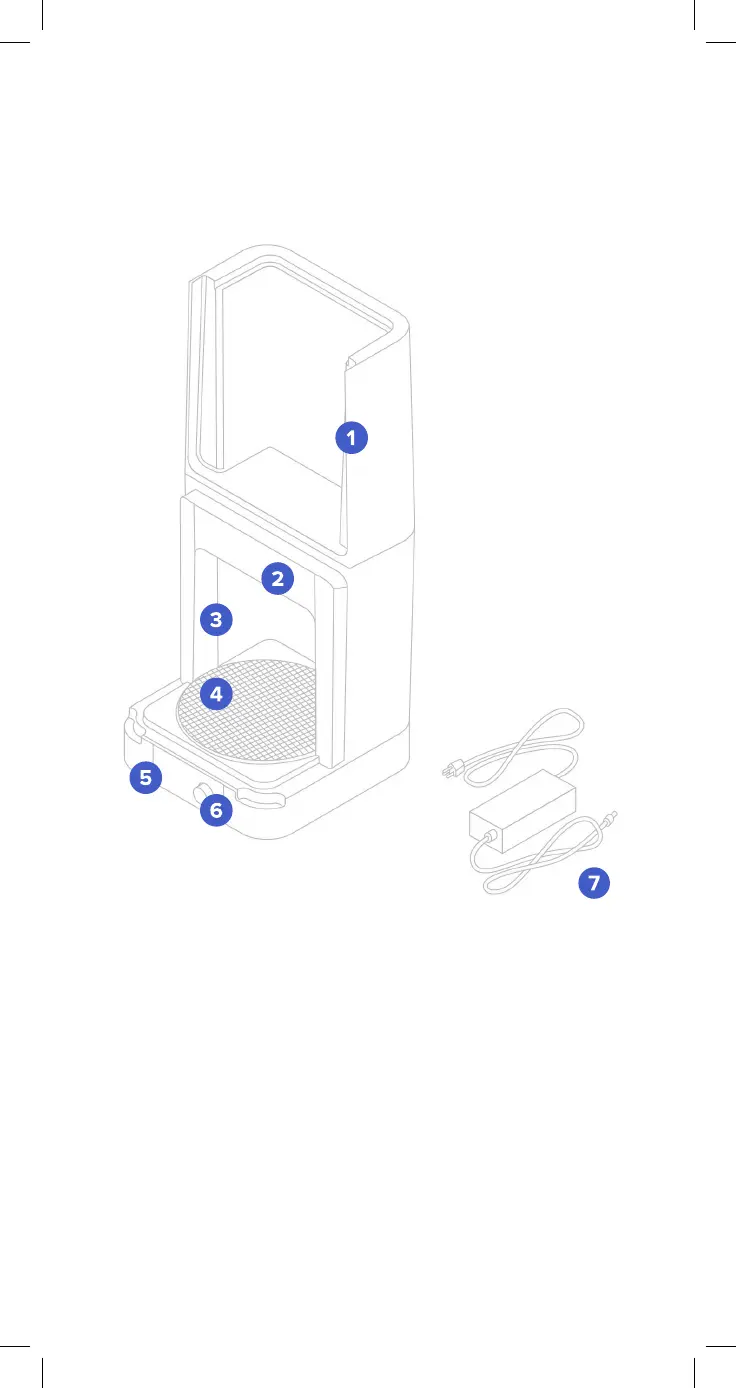

1 Cover. Double walls insulate the cure chamber and internal surfaces
reflect light.
2 Heater. A 100 W heating module can heat the chamber up to 176 °F/80 °C.
3 LEDs. An array of 405 nm LEDs help to post-cure parts.
4 Turntable. The rotating plate ensures balanced post-curing across all
exposed surfaces.
5 Display. Shows status, time, temperature, and options for configuring
Form Cure.
6 Knob. Turn or push to adjust time and temperature settings and to start,
pause, or stop post-curing.
7 Power Supply. Provides power to Form Cure. Specifications: 24 V, 6 A
FORM CURE SYSTEM OVERVIEW
