fortessa FTDEV1P - Electric Lock Connection; Door Lock Controlled with Internal Power; Door Lock Controlled with Dry Contact

-5-
5.2 Electric Lock Connection
5.2.1 Door Lock Controlled with Internal Power

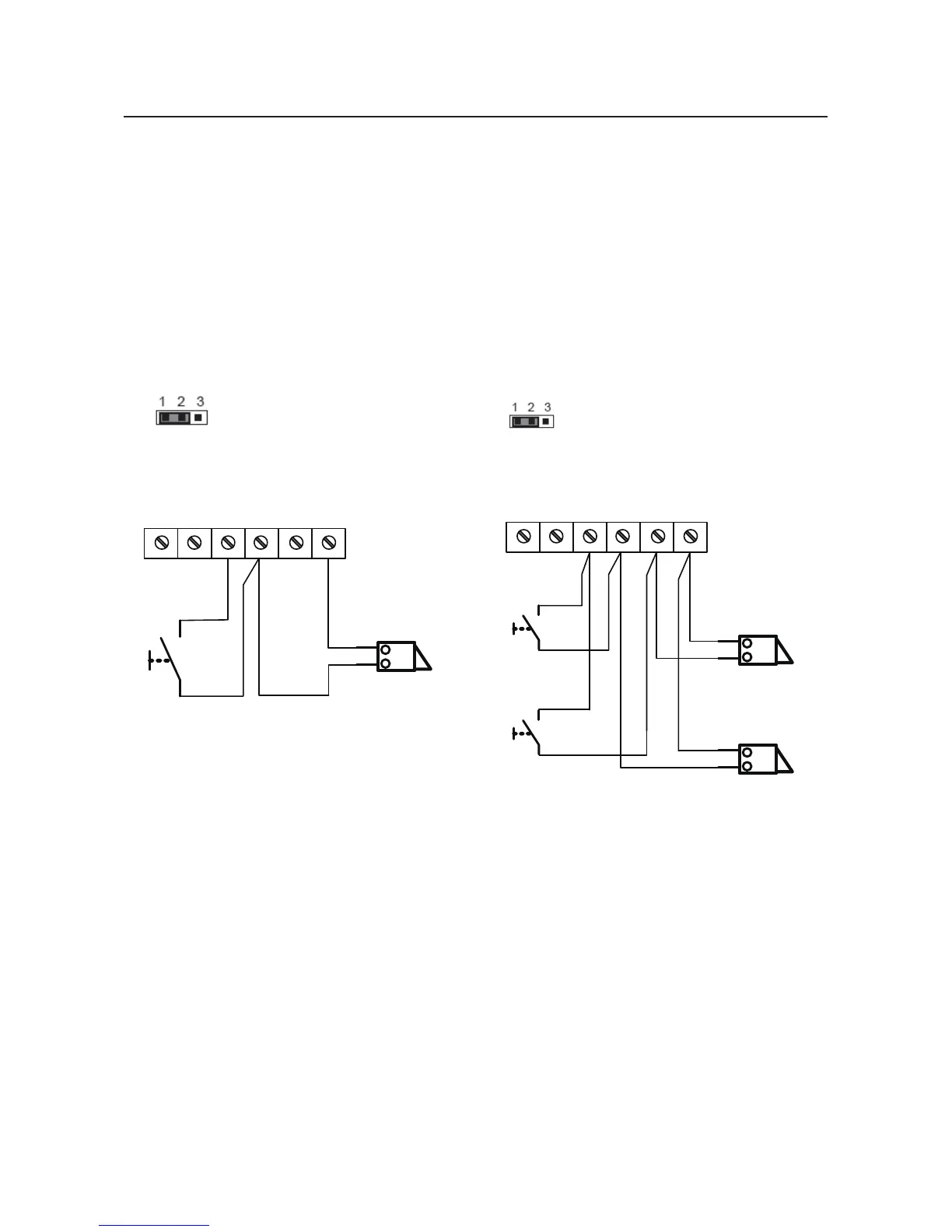

connect one lock connect two locks
Note:
1. Electronic lock of Power-on-to-unlock type should be used.
2. The door lock is limited to 12V, and holding current must be less than 250mA.
3. The door lock control is not timed from Exit Button(EB).
4. The
Unlock Mode
Parameter of Monitor must be set to 0 (by default).
EB
*
LOCK
BUS PL S1+ S2+ S-
LOCK
2
nd
1
ST
2
nd
EB
*
1
ST
Jumper position in
Connect two locks
1-2
EB
*
LOCK
BUS PL
S1
+
S2
+
S-
Jumper position in
Connect one lock
1-2
5.2.2 Door Lock Controlled with Dry Contact
Note:
1. The external power supply must be used according to the lock.
2. The jumper must be taken off before connecting.
3. Setup the
Unlock Mode
of Monitor for different lock types.
• Power-on-to-unlock type:Unlock Mode=0 (by default)
• Power-off-to-unlock type:Unlock Mode=1
