Fortinet AP832 User Manual

Wall Mount AP832e Antenna Orientation 31
Option 2 Horizontal Antenna Orientation

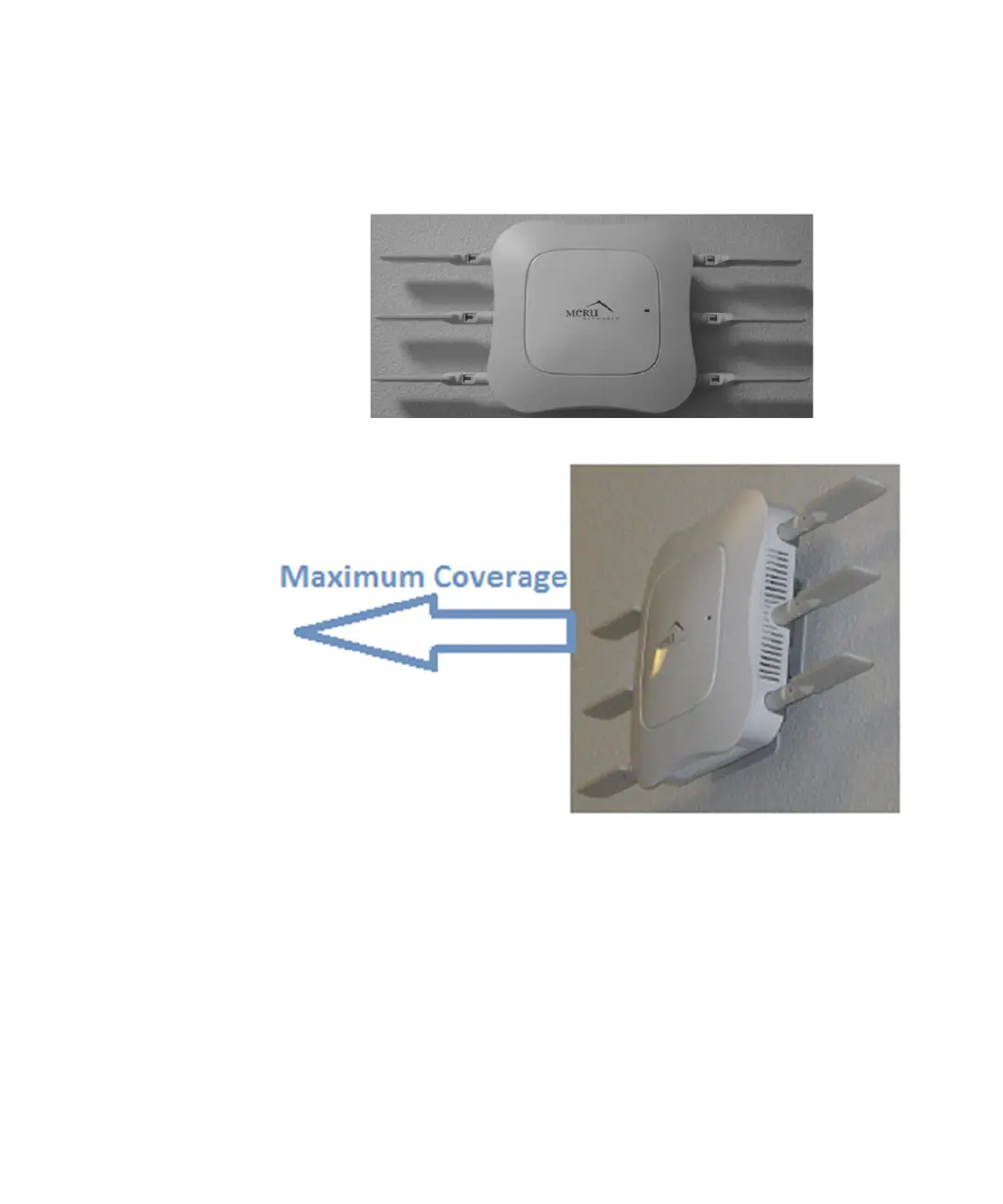

Figure 13: Horizontal Antenna Orientation
Figure 14: Horizonta Antenna Orientation (Side View)
Option 2, horizontal antenna orientation is recommended where the maximum coverage is
required in front of the AP and the minimum coverage is required towards the sides of the AP
as shown in Figure 3.
Example: Mounting the AP on the end wall of the corridor where the maximum coverage is
required in front of the AP.
