Configuring the FortiGate unit NAT/Route mode installation
FortiGate-60 series and FortiGate-100A FortiOS 3.0 MR4 Install Guide
01-30004-0266-20070831 39
Connecting the FortiGate unit to the network(s)
When you have completed the initial configuration, you can connect the FortiGate
unit between your internal network and the Internet.
The following network connections are available on the FortiGate unit:
• Internal for connecting to your internal network
• WAN1 for connecting to the Internet
• WLAN is the interface to the wireless LAN on the FortiWiFi models
• DMZ is the interface to the DMZ network
To connect the FortiGate unit
1 Connect the Internal interface to the hub or switch connected to your internal
network.
2 Connect the External interface to the Internet.
Connect to the public switch or router provided by your Internet Service Provider.
If you are a DSL or cable subscriber, connect the WAN1 interface to the internal or
LAN connection of your DSL or cable modem.
3 Optionally connect the DMZ interface to your DMZ network.
You can use a DMZ network to provide access from the Internet to a web server
or other server without installing the servers on your internal network.

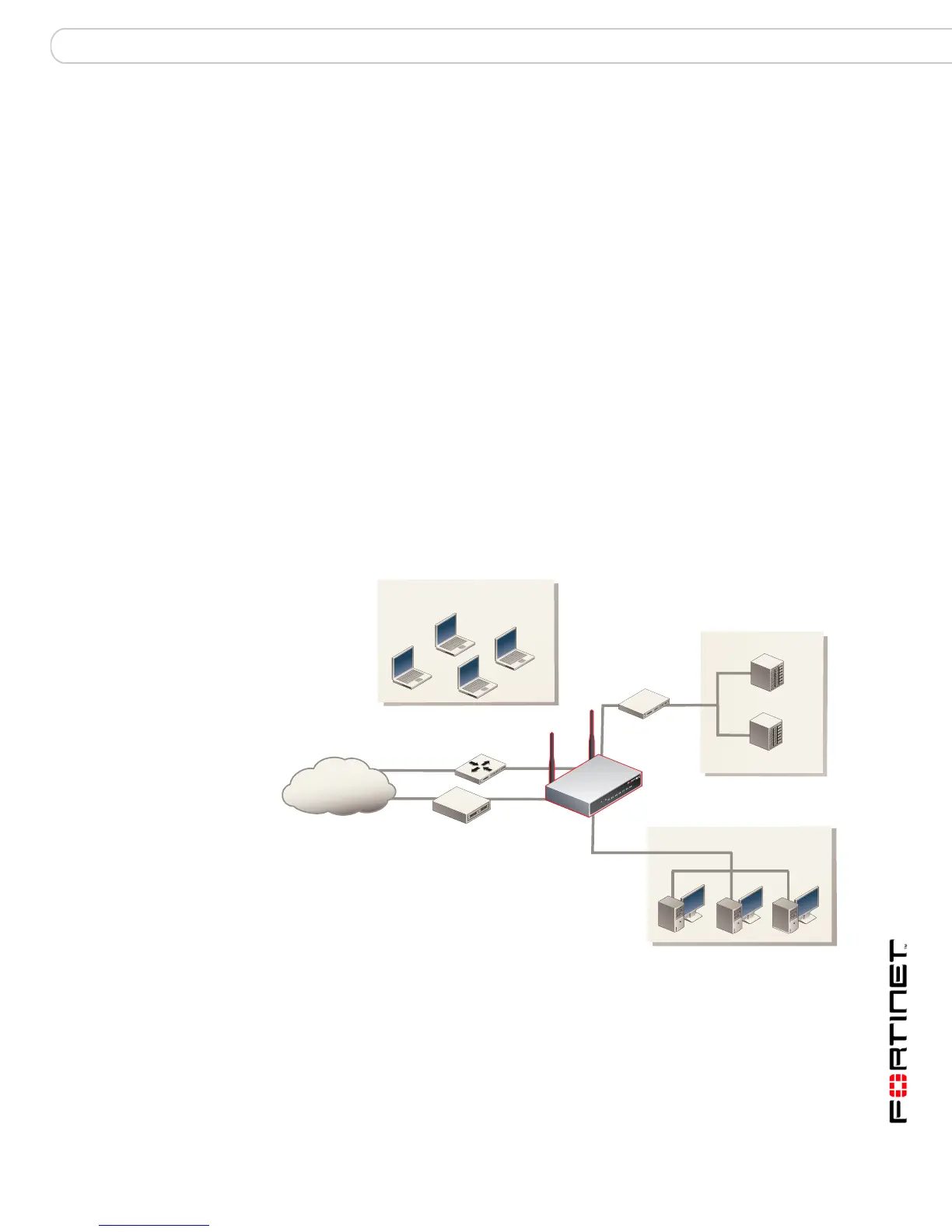

Figure 7: FortiWiFi-60 NAT/Route mode connections
DMZ network
Internet
Router
Internal
network
Web Server
Mail Server
MODEM / DSL / Cable
Internal
DMZ
WAN1
WAN2
Wireless network
