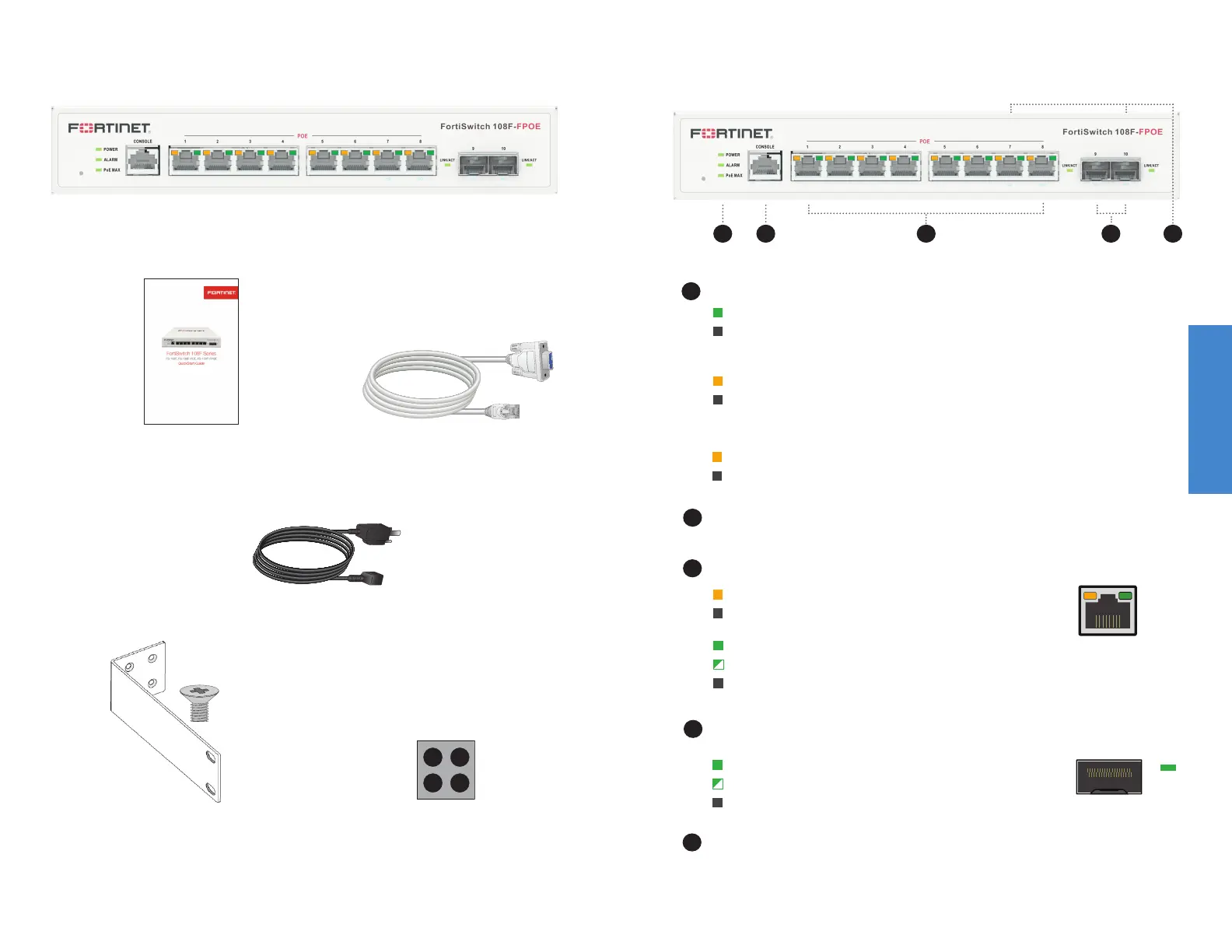

Contents - FS-108F-FPOE
FortiSwitch 108F-FPOE
Console Cable
(DB9 to RJ45)
4x Rubber Feet
2x Rack-Mount Brackets with
8x Bracket Screws
QuickStart Guide
Power Cable
FS-108F-FPOE
Front Panel - FS-108F-FPOE
41 2 3
POWER
ALARM
1
Green: Power is on
Off: Power is off
Amber: Fault detected
Off: No fault detected
Amber: PoE output power reached MAX power
Off: PoE power available
PoE MAX (up to 130W)
5
2
CONSOLE CLI management computer interface
3
4
Ports 1 to 8 (RJ45) GE network connections
Ports 9 to 10 (SFP) 1Gbps SFP connections
Act/
Link
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Link/Act
SFP
PoE
Act/
Link
Green: Connected at 1Gbps or 100Mbps
Flashing Green: Transmitting & receiving data
Off: No link established
Amber: Power delivered
Off: No power delivered
Link/Act PoE
RJ45 802.3af/at
5
FortiLink Ports 7 to 10 (RJ45 & SFP) FortiLink interface connections
