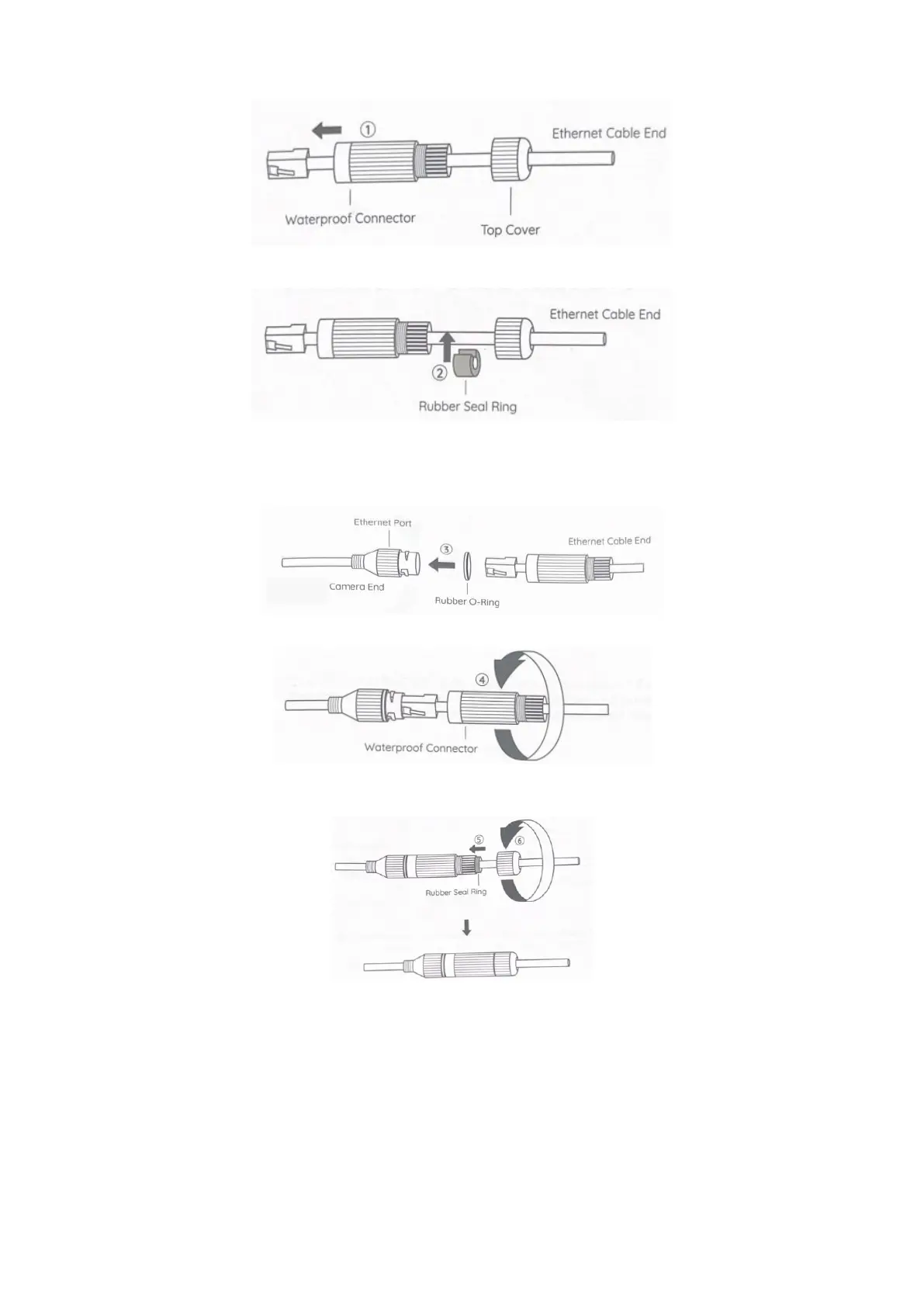

2. Put the rubber seal ring around the Ethernet cable between the top cover and the waterproof connector.
Note: The rubber seal ring provided has been cut. If not, you may manually cut it.
3. Put on the rubber O-ring to the Ethernet port of the camera and plug the Ethernet cable into the Ethernet
port.
4. Align the waterproof connector with the Ethernet port, then twist it clockwise to tighten the two parts.
5. Push the rubber seal ring into the waterproof connector, then screw the top cover and lock it into position
firmly to finish installation.
2 Default Parameters
Default network parameters
IP address: obtain dynamically
Subnet mask: obtain dynamically
Gateway: obtain dynamically
