3 PREPARATIONS FOR USE
3.1 Unpacking and checking
Unpack the 1047 Hydrolyzing Unit and its accessories with care.
Remove all packing material.
Use the parts list, packed together with the instrument and check

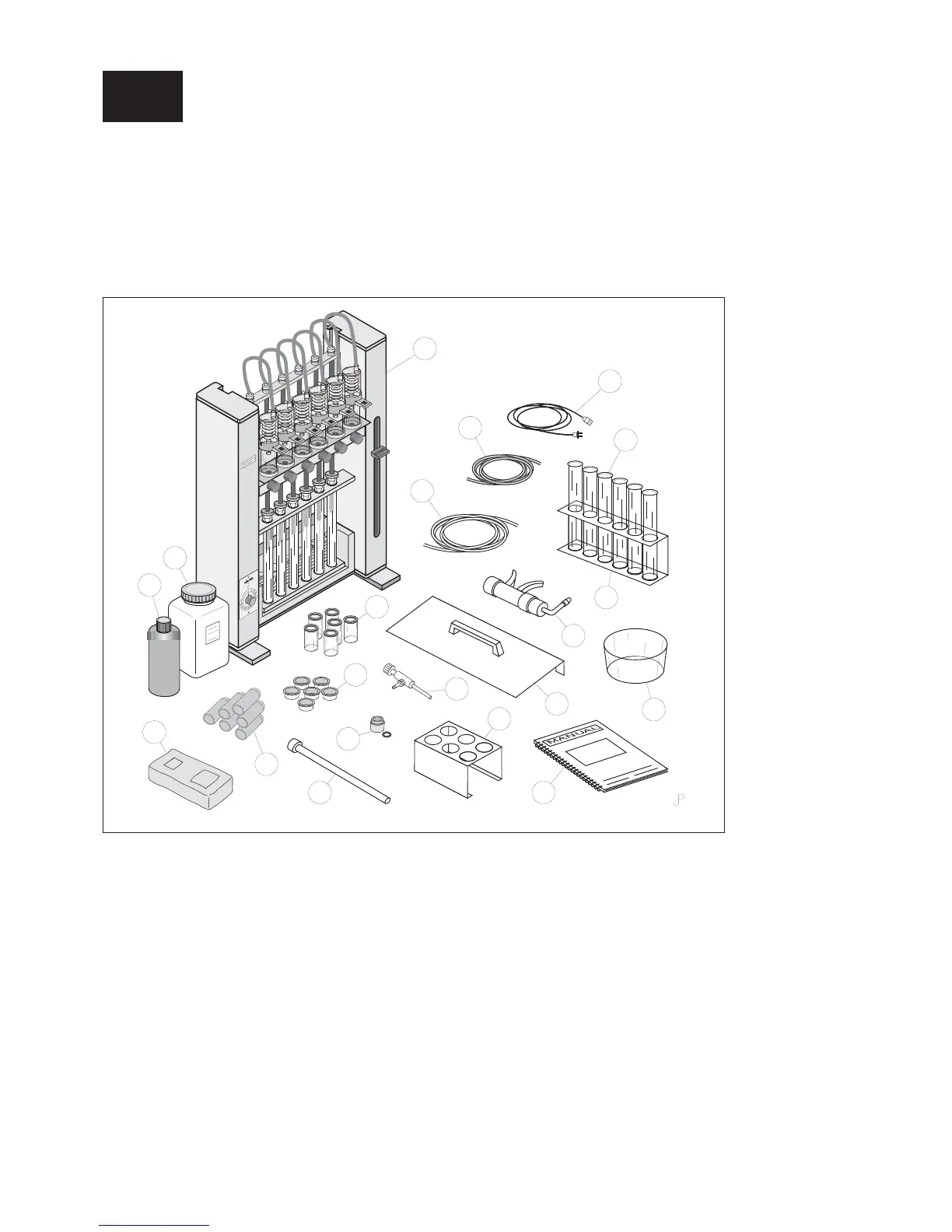

that you have received all parts. Use Fig.2 to identify the
different parts. If any parts are missing, contact your Foss Tecator
representative.
1. Hydrolyzing Unit 2. Sample Tube (set of 6)
3. Glass Thimbles (set of 6) 4. Glass Thimble Holder (set of 6)
5. Water Spray Device 6. Beaker
7. Tube Stand 8. Reflector
9. Cleaning rod 10. Glass Thimble adaptor (set of 6)
11. Celite 12. Tube 8/11 L= 2 m
13. Tube 6/11 L= 2 m 14. Spray bottle, red
15. Cotton 16. Glass Thimble seals (set of 6)
17. Water Aspirator Pump 18. Hydrolysis Stand
19. Manual 22. Mains cable
1047 Soxtec System Hydrolyzing Unit, User Manual, Rev. 2.2, Part no 1000 3315, Foss Tecator AB, Sweden
4
1047011A
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
22
Fig. 2
