3.2 Installation
All text in this section is translated in
local language.
3.2.1
Installation requir ements
Power supply 110 or 200-230V, 50-60 Hz
Power consumption 975W
Dimensions L xDxH 61x31x85cm
Weight 23 kg
Water supply Tap water approx. 2 l/min
(cooling). Tap water for vacuum
pump.
Ventilation Fume hood is recommended.
Place the unit on the laboratory bench near
suitable power, water and drainage.
3.2.2
Fuses
External: 230V: Two fuses T 6,3 A.
110V: Two fuses T 10 A.
3.2.3
Installation instructions
Before connecting to an earthed power supply,
make sure that the mains voltage agrees with
the voltage quoted at the rear of the unit.
Connect tubes to the rear of the unit
according to fig. 3.
1047 Soxtec System Hydrolyzing Unit, User Manual, Rev. 2.2, Part no 1000 3315, Foss Tecator AB, Sweden
5
1047012A
1
2
3
4
5
VACCUM
WATER
DRAIN
!

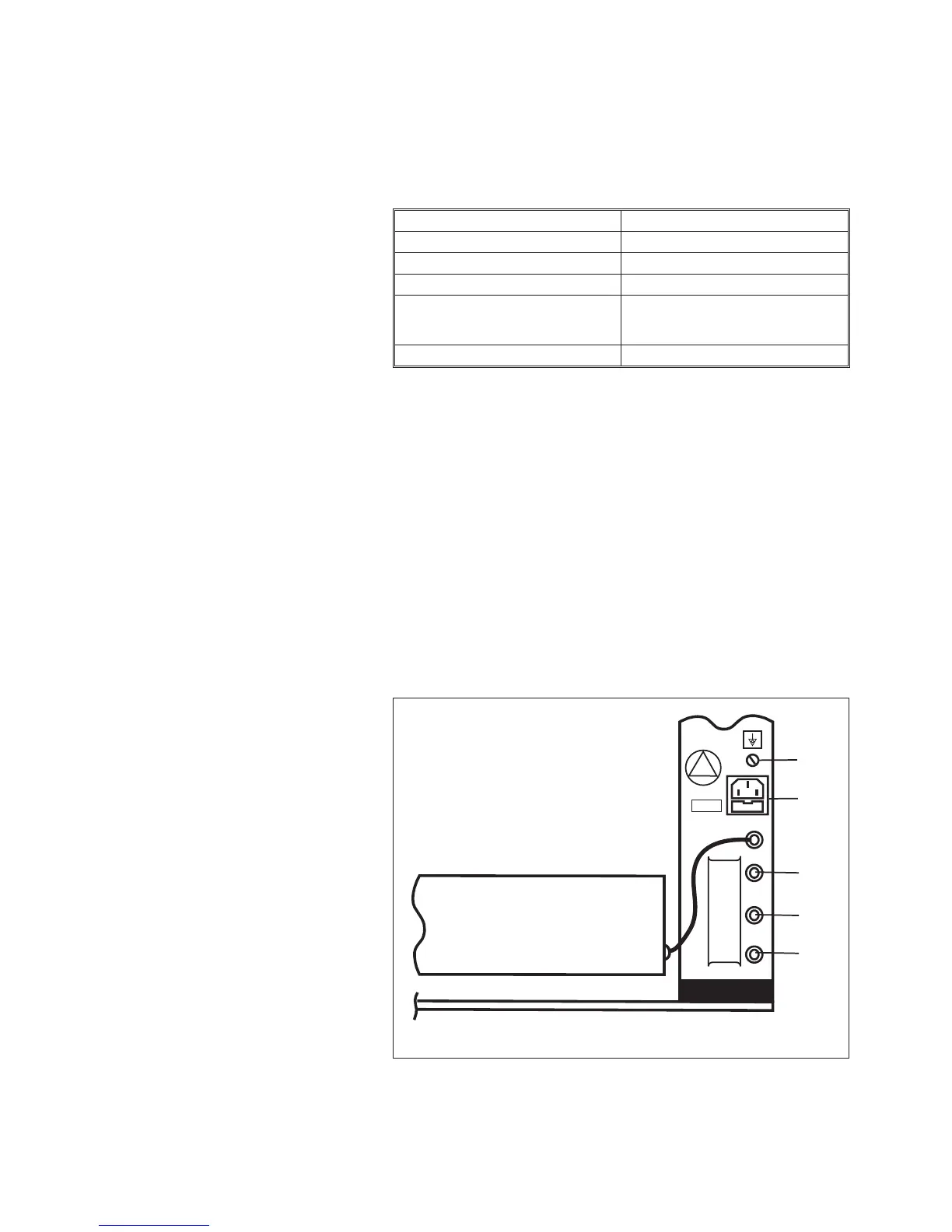

Fig. 3 1. Equipotential screw, 2. Mains and fuses, 3. Vacuum (water aspirator
pump), 4. Cooling water inlet, 5. Drain.
