FOSTEX 350
ECHO SEND/AUX OUT
FOSTEX 3180
REVERB UNIT
ECHO RCV/BUSS IN

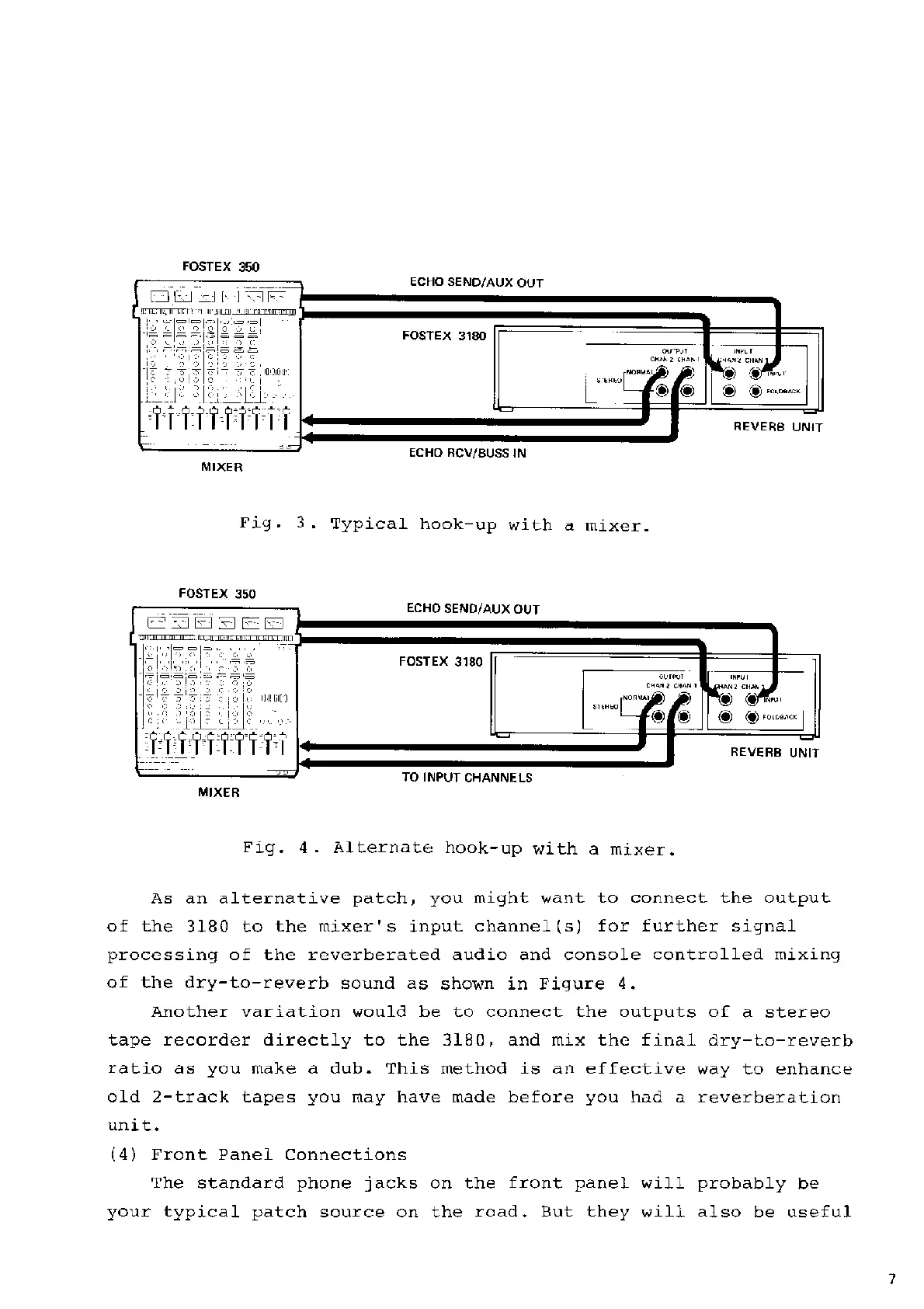

Fig.
3.
Typical
hook-up
with
a
mixer.
ECHO SEND/AUX OUT
FOSTEX 3180
p
REVERB UNIT
TO INPUT CHANNELS
Fig. 4. Alternate hook-up with a mixer.
As an alternative patch, you might want to connect the output
of the 3180 to the mixer's input channel(s) for further signal
processing of the reverberated audio and console controlled mixing
of the dry-to-reverb sound as shown in Figure 4.
Another variation would be to connect the outputs of a stereo
tape recorder directly to the 3180, and mix the final dry-to-reverb
ratio as you make a dub. This method is an effective way to enhance
old 2-track tapes you may have made before you had a reverberation
unit.
(4) Front Panel Connections
The standard phone jacks on the front panel will probably be
your typical patch source on the road. But they will also be useful
