Fostex AR-4i - Features and Controls Overview; Dock Connector; Input Jacks; Camera Accessory Shoe

E-4

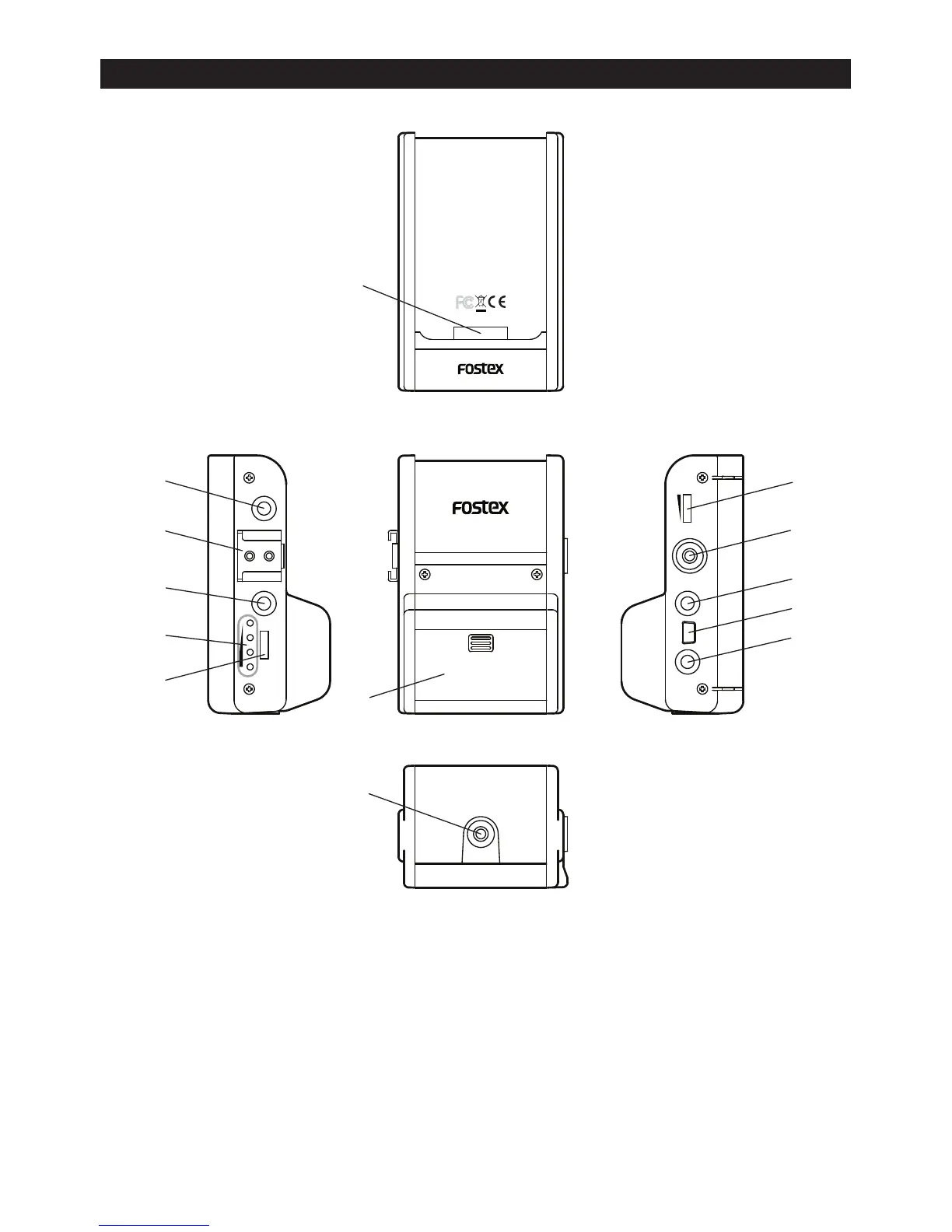

Features and controls
❶
Dock connector
Used for setting the iPhone 4.
❷
[INPUT 2] jack (mini jack)
Connects the supplied microphone, a general plug-
in powered microphone, or a line level source to
this jack.
Using an iOS application, you can select stereo or
mono recording. By default, this jack is for the left
channel source of stereo recording.
❸
Camera accessory shoe
Used for mounting a microphone for a camera.
❹
[INPUT 1] jack (mini jack)
Connects the supplied microphone, a general plug-
in powered microphone, or a line level source to
this jack.
Using an iOS application, you can select stereo or
mono recording. By default, this jack is for the right
channel source of stereo recording.
