Fostex D-108 Service Manual

D-108
11
4. SERVICE MODE
There are various optional modes available in the D-108 Service Mode. Please utilize them when servicing the unit.
Insert a 3.5” E-IDE internal HDD into the HDD cartridge slot or connect an external SCSI recording/playback device
(SCSI ID: 0 ~ 5) to the D-108 SCSI connector.
Turn on the power of D-108.
While holding down the STOP button, press the DISP SEL key to select the SETUP menu and then press the EXECUTE/
YES key.
The way of putting the D-108 into Service Mode is as follow.
4-1. Putting D-108 into Service Mode
1)
2)
3)

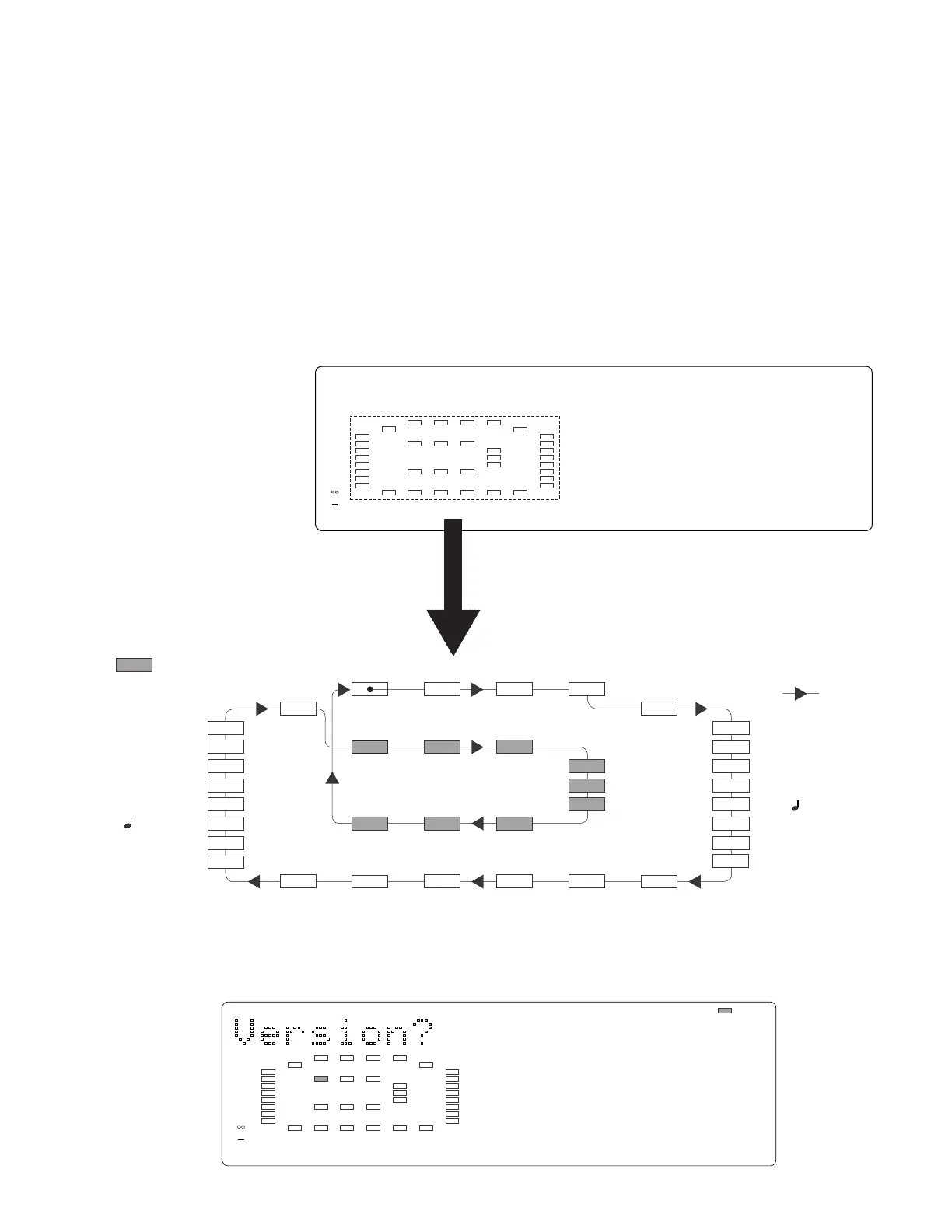

As shown below, by rotating the jog dial C.W. or C.C.W., various optional modes will be displayed in addition to the
general SETUP menus. In order to select a certain optional mode, press the EXECUTE/YES key while its menu is
displayed.
4-2. Flash ROM & CPU Version
This mode is used to check the Flash ROM and CPU versions currently installed in the unit.
42
44.1kHz
OL
0
8
7
6
5
4
32
1
30
24
18
12
9
6
3
: Blinking
Drive_Sel.?
Load_PGM?
Save_PGM?
DiskFormat_?
Track_Exchange?
Signature_Set?
Tempo_Map_Set ?
TitleEdit_PGM01?
Delete_PGM01?
Click_ ?
PrerollTime?
MidiSyncOut?
Frame_Rate?
00h59m57s00f00sf
(MTC Offset)
OffsetMode?
Slave_Mode?
Ref._TC*
SlaveType?
Rec_Protect?
Digi.in?
Digi.out?
Resolution?
Device_ID?
SampleRate?
Clock_Sel?
Not_Used?
Sync_Preset*
NOs_Of_Event?
Version?
DA_Test?
Standby_Disk?
DisplayTest?
Self_Check?
OffsetDisp?
InitialDisk?
Flash_ROM?
Freeblock_Check?
*: Model 8345 is required.
CW
42
44.1kHz
SETUP
OL
0
8
7
6
5
4
32
1
30
24
18
12
9
6
3
: Optional Mode
