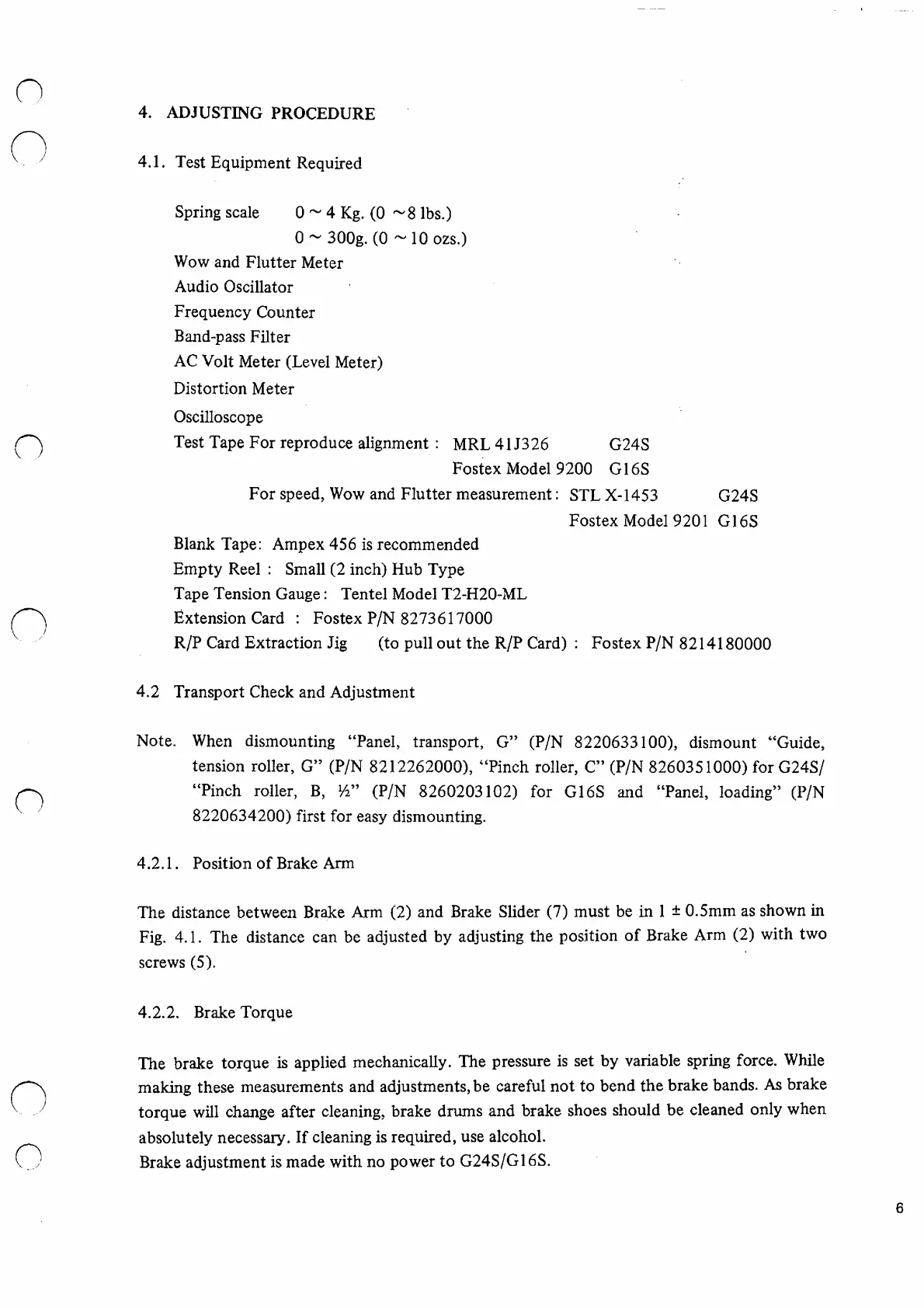

4. ADJUSTING PROCEDURE
4.1 . Test Equipment Required
Spring scale 0 ~ 4 Kg. (0 ~8 lbs.)
0~ 300g. (0~10ozs.)
Wow and Flutter Meter
Audio Oscillator
Frequency Counter
Band-pass Filter
AC Volt Meter (Level Meter)
Distortion Meter
Oscilloscope
Test Tape For reproduce alignment : MRL 41 J326 G24S
Fostex Model 9200 G16S
For speed, Wow and Flutter measurement : STL X-1453 G24S
Fostex Model 9201 G16S
Blank Tape: Ampex 456 is recommended
Empty Reel : Small (2 inch) Hub Type
Tape Tension Gauge : Tentel Model T2-H20-ML
Extension Card : Fostex P/N 8273617000
R/P Card Extraction Jig (to pull out the R/P Card) : Fostex P/N 8214180000
4.2 Transport Check and Adjustment
Note. When dismounting “ Panel, transport, G ” (P/N 8220633100), dismount “ Guide,
tension roller, G ” (P/N 8212262000), “ Pinch roller, C ” (P/N 8260351000) for G24S/
“ Pinch roller, B, W' (P/N 8260203102) for G16S and “ Panel, loading ” (P/N
8220634200) first for easy dismounting.
4.2.1. Position of Brake Arm
The distance between Brake Arm (2) and Brake Slider (7) must be in 1 ± 0.5mm as shown in
Fig. 4.1. The distance can be adjusted by adjusting the position of Brake Arm (2) with two
screws (5).
4.2.2. Brake Torque
The brake torque is applied mechanically. The pressure is set by variable spring force. While
making these measurements and adjustments, be careful not to bend the brake bands. As brake
torque will change after cleaning, brake drums and brake shoes should be cleaned only when
absolutely necessary. If cleaning is required, use alcohol.
Brake adjustment is made with no power to G24S/G16S.
6
