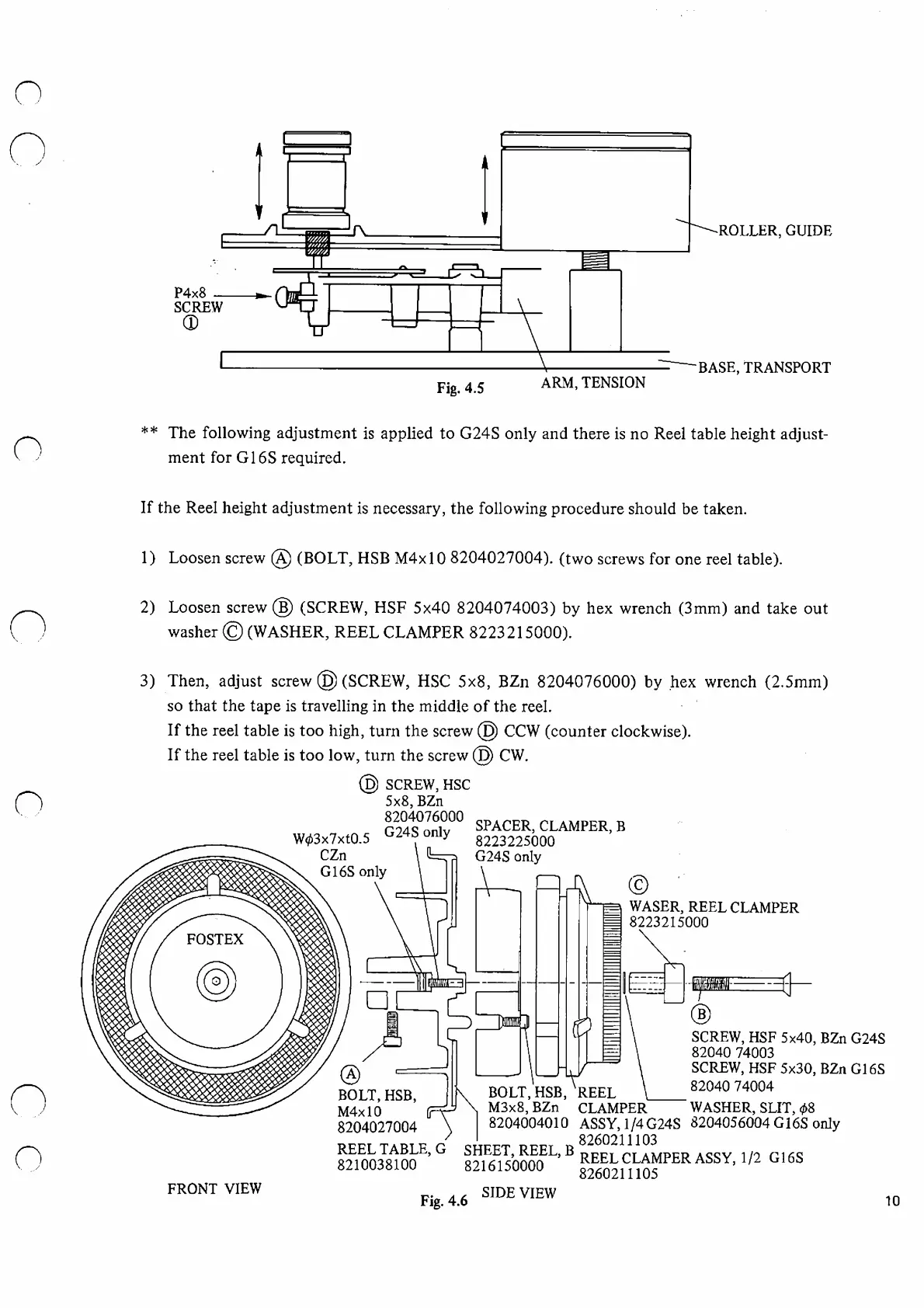

Fostex G16S - Page 14

ARM, TENSION
Fig. 4.5
** The following adjustment is applied to G24S only and there is no Reel table height adjust 
ment for G16S required.
If the Reel height adjustment is necessary, the following procedure should be taken.
1) Loosen screw @ (BOLT, HSB M4xl0 8204027004). (two screws for one reel table).
2) Loosen screw © (SCREW, HSF 5x40 8204074003) by hex wrench (3mm) and take out
washer © (WASHER, REEL CLAMPER 8223215000).
3) Then, adjust screw © (SCREW, HSC 5x8, BZn 8204076000) by hex wrench (2.5mm)
so that the tape is travelling in the middle of the reel.
If the reel table is too high, turn the screw © CCW (counter clockwise).
If the reel table is too low, turn the screw © CW.
© SCREW, HSC
5x8, BZn
FRONT VIEW
Fig. 4.6
SIDE VIEW
10
