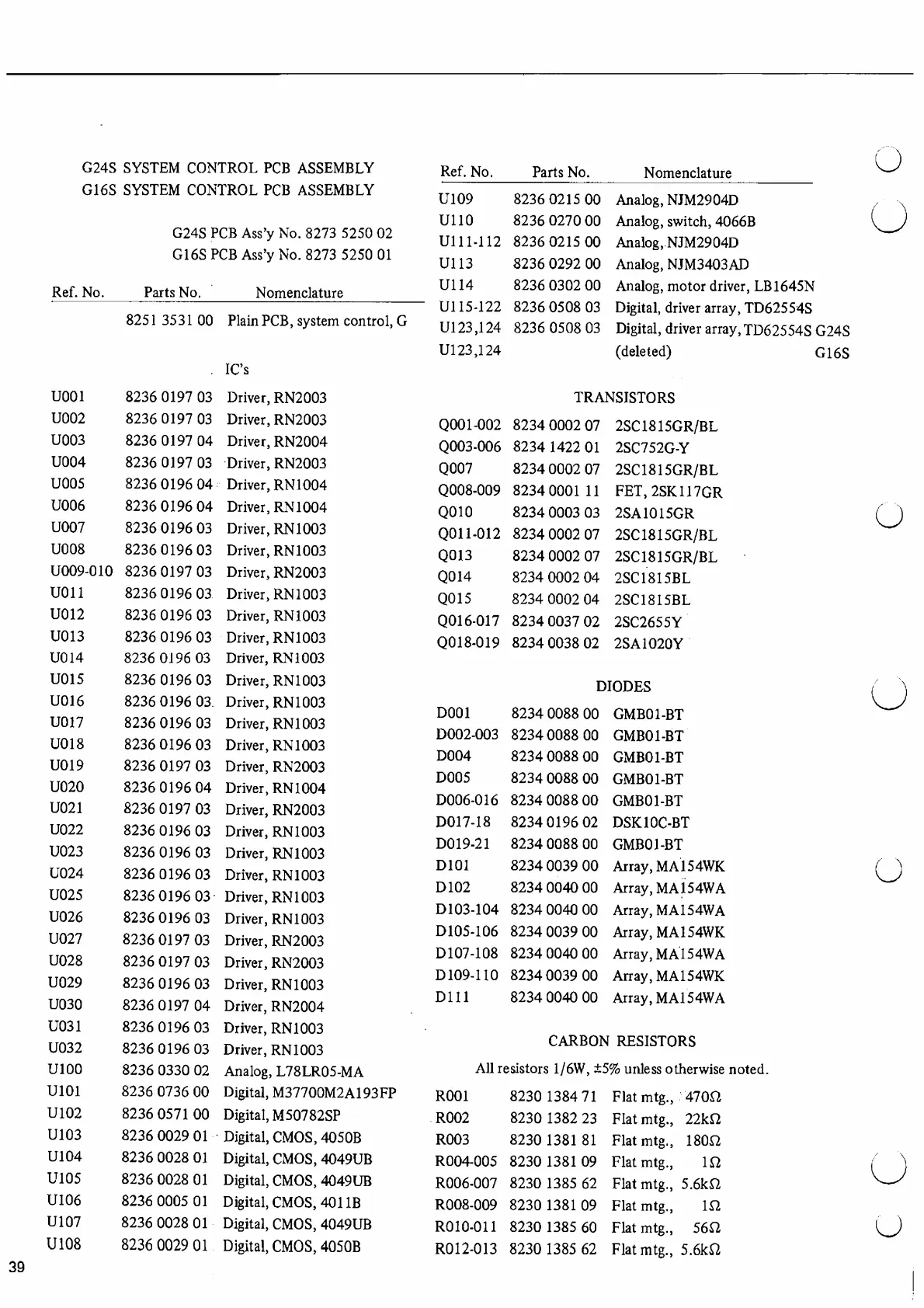

Fostex G16S - Fostex G24 S;G16 S PCB Assemblies and Component Lists

G24S SYSTEM CONTROL PCB ASSEMBLY
G16S SYSTEM CONTROL PCB ASSEMBLY
G24S PCB Ass ’ y No. 8273 5250 02
G16S PCB Ass ’ y No. 8273 5250 01
Ref. No. Parts No, Nomenclature
8251 3531 00 Plain PCB, system control, G
IC ’ s
U001
8236 0197 03
Driver, RN2003
U002
8236 0197 03
Driver, RN2003
U003
8236 0197 04
Driver, RN2004
U004
8236 0197 03
Driver, RN2003
U005
8236 0196 04
Driver, RN1004
U006
8236 0196 04
Driver, RN1004
U007
8236 0196 03
Driver, RN1003
U008
8236 0196 03
Driver, RN1003
U009-010
8236 0197 03
Driver, RN2003
U011
8236 0196 03
Driver, RN1003
U012
8236 0196 03
Driver, RN1003
U013
8236 0196 03
Driver, RN1003
U014
8236 0196 03
Driver, RN1003
U015
8236 0196 03
Driver, RN1003
U016
8236 0196 03.
Driver, RN1003
U017
8236 0196 03
Driver, RN1003
U018
8236 0196 03
Driver, RN1003
U019
8236 0197 03
Driver, RN2003
U020
8236 0196 04
Driver, RN1004
U021
8236 0197 03
Driver, RN2003
U022
8236 0196 03
Driver, RN1003
U023
8236 0196 03
Driver, RN1003
U024
8236 0196 03
Driver, RN1003
U025
8236 0196 03-
Driver, RN1003
U026
8236 0196 03
Driver, RN1003
U027
8236 0197 03
Driver, RN2003
U028
8236 0197 03
Driver, RN2003
U029
8236 0196 03
Driver, RN1003
U030
8236 0197 04
Driver, RN2004
U031
8236 0196 03
Driver, RN1003
U032
8236 0196 03
Driver, RN1003
U100
8236 0330 02
Analog, L78LR05-MA
U101
8236 0736 00
Digital, M37700M2A193FP
U102
8236 0571 00
Digital, M50782SP
U103
8236 0029 01
Digital, CMOS, 4050B
UI 04
8236 0028 01
Digital, CMOS, 4049UB
U105
8236 0028 01
Digital, CMOS, 4049UB
U106
8236 0005 01
Digital, CMOS, 401 IB
U107
8236 0028 01
Digital, CMOS, 4049UB
U108
8236 0029 01
Digital, CMOS, 4050B
Ref. No,
Parts No.
Nomenclature
U109
8236 0215 00
Analog, NJM2904D
U110 8236 0270 00
Analog, switch, 4066B
UI 11-112
8236 0215 00
Analog, NJM2904D
UI 13
8236 0292 00
Analog, NJM3403AD
U114 8236 0302 00
Analog, motor driver, LB1645N
UI 15-122
8236 0508 03
Digital, driver array, TD62554S
UI 23,124
UI 23,124
8236 0508 03
Digital, driver array, TD62554S G24S
(deleted) G16S
TRANSISTORS
Q00 1-002
8234 0002 07
2SC1815GR/BL
Q003-006
8234 1422 01
2SC752G-Y
Q007
8234 0002 07
2SC1815GR/BL
Q008-009 8234 0001 11
FET, 2SK117GR
Q010
8234 0003 03
2SA1015GR
Q01 1-012
8234 0002 07
2SC1815GR/BL
Q013
8234 0002 07
2SC1815GR/BL
Q014
8234 0002 04
2SC1815BL
Q015
8234 0002 04
2SC1815BL
Q016-017
8234 0037 02
2SC2655Y
Q018-019 8234 0038 02
2SA1020Y
DIODES
D001
8234 0088 00
GMB01-BT
D002-003
8234 0088 00
GMB01-BT
D004
8234 0088 00
GMB01-BT
D005
8234 0088 00
GMB01-BT
D006-016 8234 0088 00
GMB01-BT
D017-18 8234 0196 02
DSK10C-BT
DO 19-21
8234 0088 00
GMB01-BT
D101
8234 0039 00
Array, MAÌ54WK
D102
8234 0040 00
Array, MAÍ54WA
D103-104
8234 0040 00
Array, MA154WA
D105-106
8234 0039 00
Array, MA154WK
D107-108
8234 0040 00
Array, MÁ154WA
D109-110
8234 0039 00
Array, MA154WK
Dill
8234 0040 00
Array, MAÍ54WA
CARBON RESISTORS
All resistors 1/6W, ±5% unless otherwise noted.
R001
8230 1384 71
Flat mtg., 470Í2
R002
8230 1382 23
Flat mtg., 22kQ
R003
8230 1381 81
Flat mtg., 180Í2
R004-005 8230 1381 09
Flat mtg., 1Í2
R006-007 8230 1385 62
Flat mtg., 5,6kf2
R008-009 8230 1381 09
Flat mtg,, 1ÎÎ
R010-011
8230 1385 60
Flat mtg,, 56Í2
R012-013 8230 1385 62
Flat mtg., 5.6ki2
