12
Names and functions
DIGITAL MULTITRACKER
LOCATE ABS 0
LOCATE REC END
SEL
TIMEBASE
CURSOR
PHANTOM
ACCESS
PEAK
CH ON/OFF
LR
GUITAR
GUITAR
LINE MIC LINE MIC MIN MAX
MASTERING TRAINING
EFFECTEQPAN
SCENE SEQ.SCENE
TRACK
UNDO
SETUP
PUNCH
AUTO
LOOP PITCH SCRUB
VARI
F FWDREWINDPLAYSTOPRECORD
EXIT
ENTER
TRIMTRIM
WAVE FORM
MIX PARAMETER
PGM
FADER
MAP
ON/OFF
2TRK MODE
F1
F2
F3
SHIFT
EDIT
EDIT EDIT
MARK
DELETE
LOCATE
FOOT SW
ST OUT
PHONES
INPUT A
BOUNCE MODE
INPUT B
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
+6
-10
-20
-40
-
-30
0
PEAK
CH ON/OFF
2 3 4
5 6
7/8 2TRK1
MASTER
TRACK STATUS / TRACK SEL
TRACK STATUS
RED
REC
GREEN
PLAY
OFF
MUTE
STATUS
/SEL
EJECT
/YES
/NO
SHUTTLE
JOG
UNBAL
UNBAL
BAL
BAL
F1
F2 F3
EDIT
/REDO
1
2
3
4
5
6
7
89
10
11
12

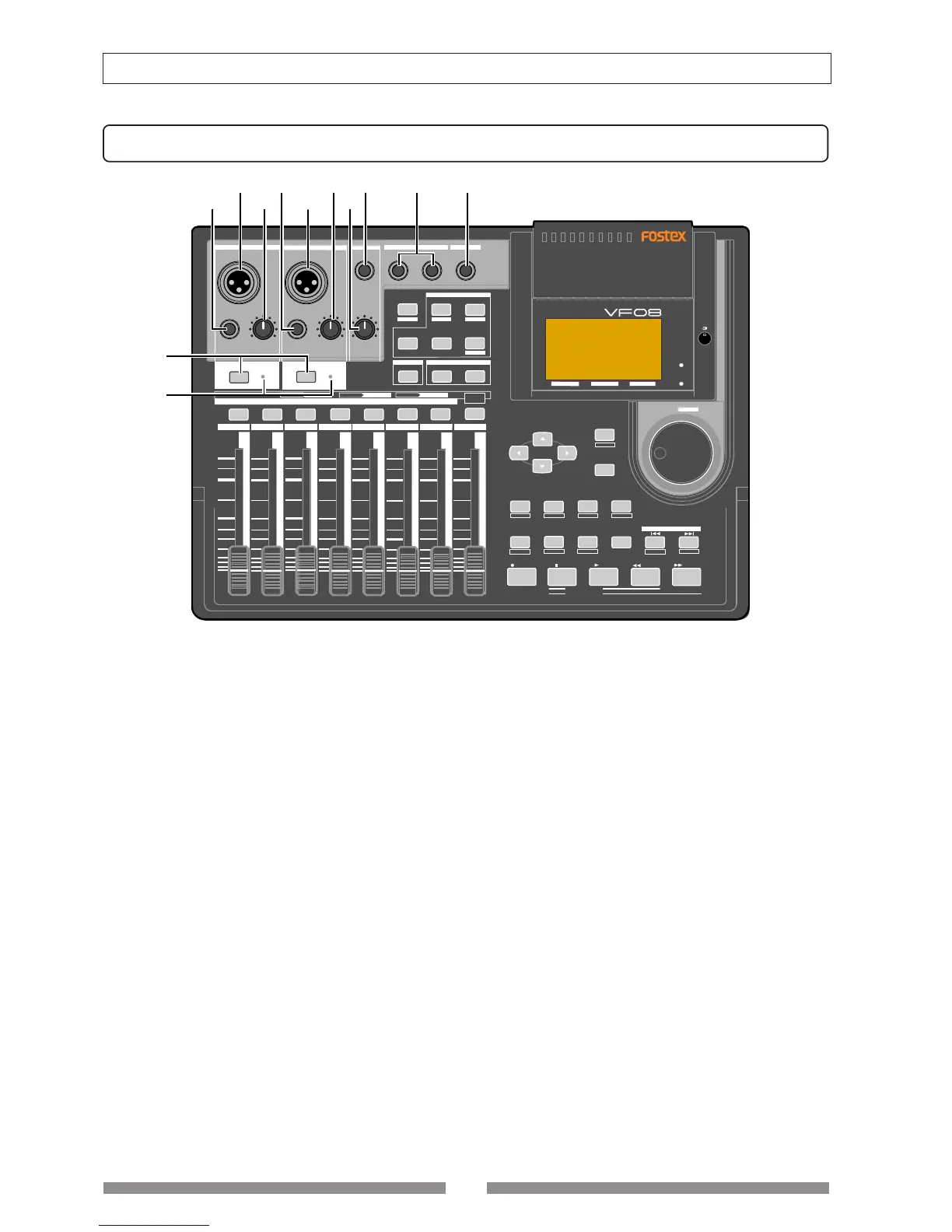

Top panel (Analog input/output section)
1. [INPUT A/UNBAL] (Unbalanced) connector
* Connects to the unbalanced output of an external sound
source.
* Reference input level: -50 dBV to +2 dBV
* Connector type: phone jack
* When this connector is plugged, the input from the
[INPUT A/BAL] connector is interrupted.
2. [INPUT A/BAL] (Balanced) connector
* Connects to the balanced output of an external sound
source.
* Reference input level: -50 dBV to +2 dBV (approx. -48
dBu to +4 dBu)
* Connector type: XLR-3-31 type (pin #2 hot)
* A phantom power (+48 V) can be supplied for using a
condenser microphone by setting the [PHANTOM]
switch on the rear panel to ON.
* When the [INPUT A/UNBAL] connector is plugged, the
input from this connector is interrupted.
3. [INPUT A/TRIM] knob
* Controls the gain according to the signal from [INPUT
A].
* You can adjust the gain to accept input signals between
-50 dBV (MIC) and +2 dBV (LINE).
4. [INPUT B/UNBAL] (Unbalanced) connector
* Connects to the unbalanced output of an external sound
source.
* Reference input level: -50 dBV to +2 dBV
* Connector type: phone jack
* When this connector is plugged, the input from the
[INPUT B/BAL] connector is interrupted.
5. [INPUT B/BAL] (Balanced) connector
* Connects to the balanced output of an external sound
source.
* Reference input level: -50 dBV to +2 dBV (approx. -48
dBu to +4 dBu)
* Connector type: XLR-3-31 type (pin #2 hot)
* A phantom power (+48 V) can be supplied for using a
condenser microphone by setting the [PHANTOM]
switch on the rear panel to ON.
* When the [INPUT B/UNBAL] connector is plugged, the
input from this connector is interrupted.
6. [INPUT B/TRIM] knob
* Controls the gain according to the signal from [INPUT B].
* You can adjust the gain to accept input signals between
-50 dBV (MIC) and +2 dBV (LINE).
7. [PHONES] (Headphones) knob
* Adjusts the level of headphones for monitoring.
8. [PHONES] (Headphones) connector
* Connects headphones for monitoring.
* Connector type: TRS phone jack
9. [ST OUT L. R] (Stereo out) connector
* Outputs the stereo (L and R) buss signal.
* Connects to a master recorder, etc.
* Reference output level: -10 dBV
