Fourgroup Simplex-Up - Electrical Connection SIMPLEX-UP-M; Component Identification Diagram; Internal DIP-Switch Functionality

10
DANGER
RISK OF ELECTRIC
SHOCK
DANGER
WARNING

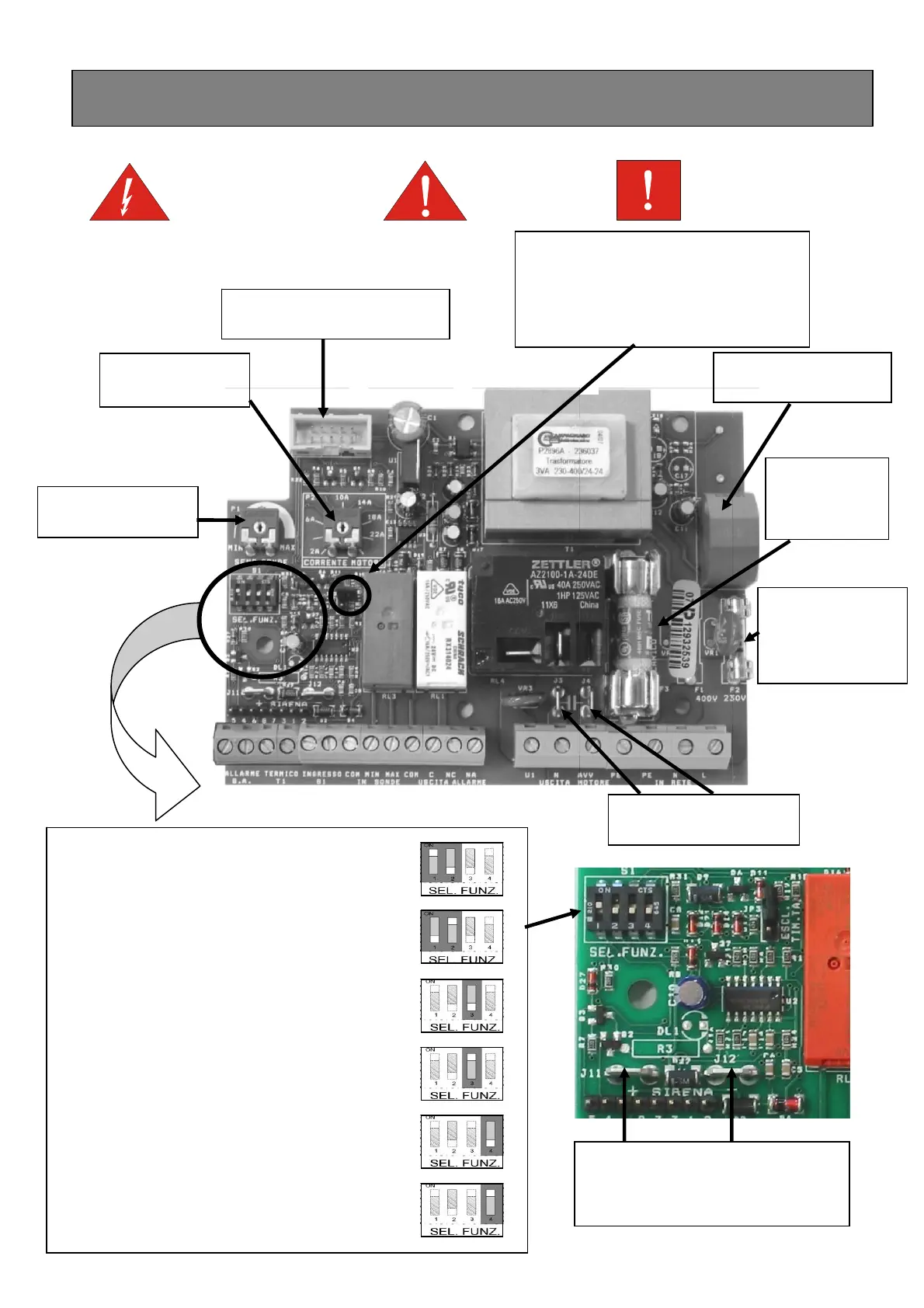

7 b. ELECTRICAL CONNECTION SIMPLEX-UP-M
OVERLOAD
TRIMMER
SENSIBILITY FOR
LEVEL SENSOR
CONNECTOR FOR
SYNOPTICAL PANEL
AMPEROMETRIC
TRANSFORMERS
F3 (20A)
MOTOR
PROTECTION
FUSE
F2 (2A) PRIMARY
LINE
PROTECTION
FUSE
SIMPLEX-UP-M
J3-J4 FASTON FOR
START CAPACITOR
DETAILS:
ESC.TIM.TA.
AMPEROMETRIC PROTECTION CUT-IN
DELAY TIME OVERRIDE JUMPER
- WITH JUMPER CONNECTED:
DELAY OVERRIDDEN
INTERNAL DIP-SWITCHES:
1=ON; 2=OFF -> EMPTYING ----------------
1=OFF; 2=ON -> FILLING -------------------
3=OFF -> LEVEL ALARM DISABLED --------
3=ON -> LEVEL ALARM ENABLED ----------
4=OFF -> AMPEROMETRIC PROTECTION -
DISABLED
4=ON -> AMPEROMETRIC PROTECTION --
ENABLED
OUTPUT 12Vcc for SIREN only
activated by high level float switch
(ALLARME G.A.)
