You can select the type of operation with the sensors working in Emptying / Filling mode by set
dip-switches 1 and 2 on the card:
EMPTYING :
Set the dip-switches 1=ON and 2=OFF.
The control panel is enabled only when all the sensors are immersed in the fluid (COM-MIN
and COM-MAX contacts closed). The motor is enabled by the closing of the G1 contact
(float/pressure switch).
The motor is cut out by the sensors when the COM-MIN contact opens. The alarm output is
also enabled.
FILLING :
Set the dip-switches 1=OFF and 2=ON.
The motor is enabled when the two MIN and MAX sensors are not covered by the fluid (COM-
MAX and COM-MIN contacts open).
The motor is enabled when the G1 contact closes (float/pressure switch).
The motor is cut out by the sensors when the COM-MAX contact closes. The alarm output is
also enabled.

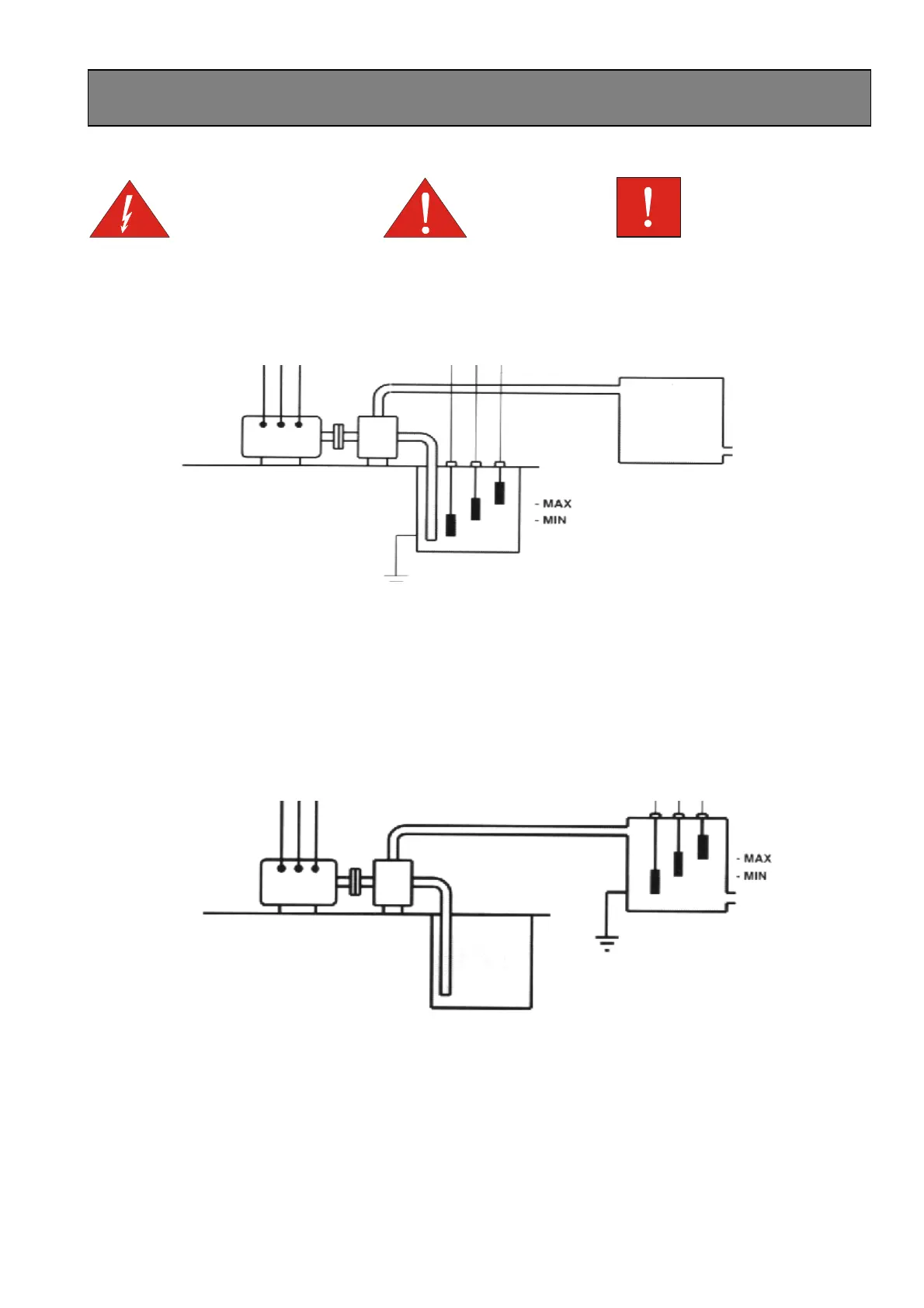

8. LEVEL SENSOR FUNCTION ( EMPTYING / FILLING )
PUMP
MOTOR
PUMP
MOTOR
WELL
WELL
TANK
TANK
