V. Adjustment of workbench’s inclination FIG.2
The workbench can be moved from 0 and 45°. To move it, loosen the lock screw (37), move
the workbench to the desired angle and tighten the screw (37).
VI. Rip fence FIG.4
The rip fence (33) can be assembled both on the left and on the right of the saw blade. Choose
the position by using a graduated scale, place the guide and lock it by lowering the front lever
A.

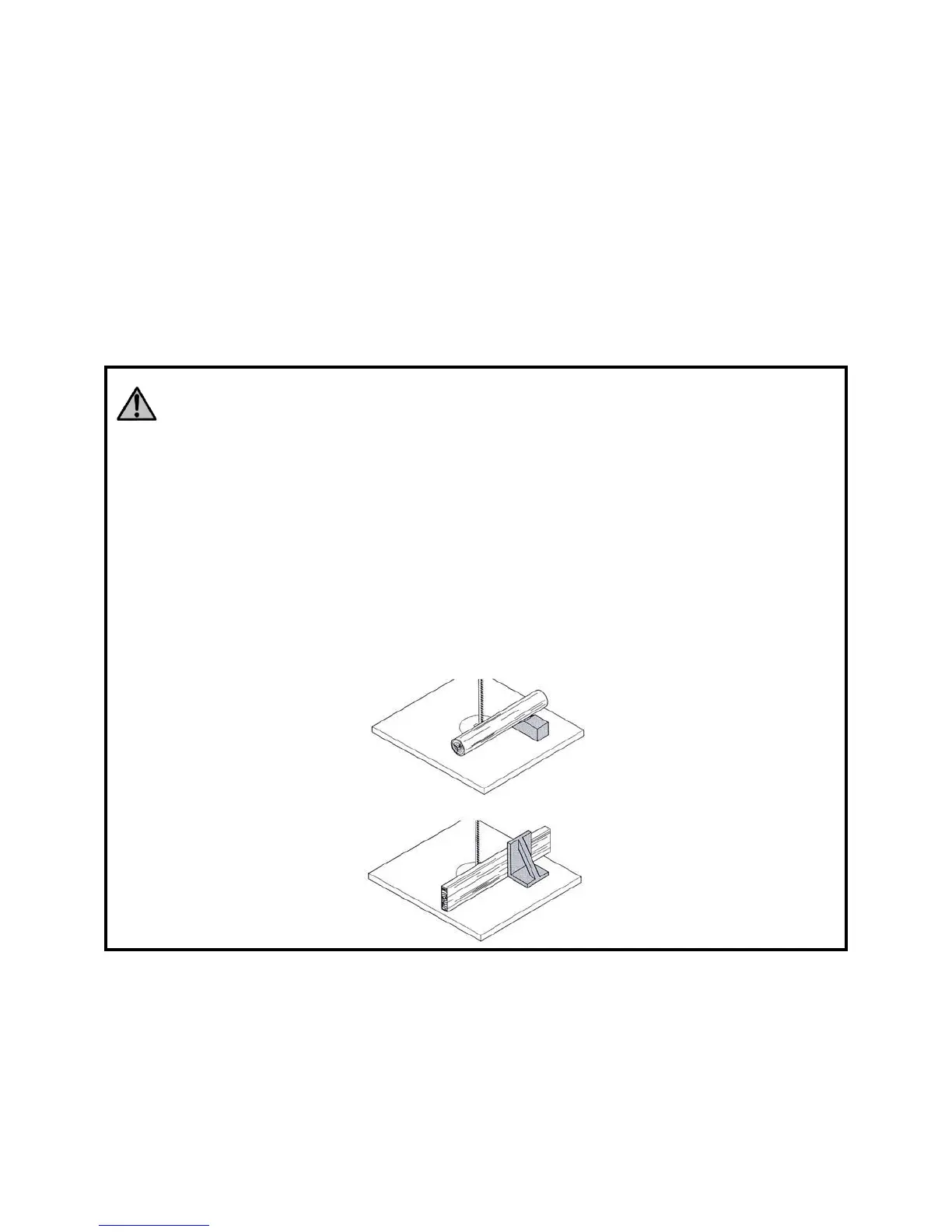

VII. Cutting
DANGER!
To reduce the risk of injuries, respect the following safety regulations during any
kind of processing:
- use personal safety equipment;
- saw only one piece at a time;
- when cross cutting, always press the workpiece against the workbench;
- do not slow down the saw blade by exerting a side pressure on it;
- For all kinds of work and according to your necessities always use:
+ a pusher if the distance between the rip fence and the saw blade is less
than or equal to 120 mm;
+ a support surface for long pieces if they risk to fall from the workbench
after being cut;
+ a dust collection device;
+ a suitable locking device, in order that the piece cannot rotate crosswise.
+ a square with suitable stops to prevent the piece from bending.
Maintain a correct working position when using the machine (saw blade’s teeth must
point towards the operator and downwards).
Do not pile the pieces to cut them. If they get caught by the blade uncontrollably risks
may arise for the operator.
Never cut pieces fastened with ropes, strings, cables or wires, or containing these
materials.
1. Be sure of the perfect conditions of the saw blade and of the protection devices.
2. If necessary, adjust workbench’s inclination.
